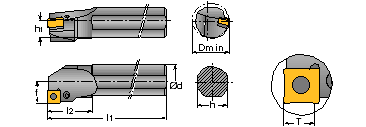

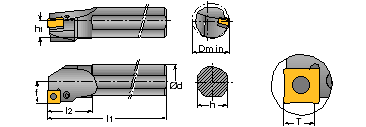

A/S-PQLNR/L |
|
|
|
| A/S-PQLNR/L | |||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
Tmax |
øDmin |
уa |
уr |
Пластины |
| S20S PQLNR/L-09 | 20 | 250 | 40 | 18 | 9.0 | 13 | 6.5 | 25 | -6° | -12° | QNMG 0904..-.. |
| S25T PQLNR/L-09 | 25 | 300 | 40 | 23 | 11.5 | 17 | 6.5 | 32 | -6° | -10° | |
| S32U PQLNR/L-09 | 32 | 350 | 45 | 29 | 14.5 | 22 | 6.5 | 40 | -6° | -10° | |
| S25T PQLNR/L-12 | 25 | 300 | 40 | 23 | 11.5 | 17 | 8.8 | 32 | -6° | -12° | QNMG 1204..-.. |
| S32U PQLNR/L-12 | 32 | 350 | 45 | 29 | 14.5 | 22 | 6.5 | 32 | -6° | -12° | |
| S40V PQLNR/L-12 | 40 | 400 | 50 | 36 | 18.0 | 27 | 6.5 | 50 | -6° | -10° | |
| A20 PQLNR/L-09AD | 20 | 100 | 40 | 18 | 9.0 | 13 | 6.5 | 25 | -6° | -12° | QNMG 0904..-.. |
| A25 PQLNR/L-12AD | 25 | 120 | 40 | 23 | 11.5 | 17 | 8.8 | 32 | -6° | -12° | QNMG 1204..-.. |
|
S-PQFNR/L |
|
|
|
| S-PQFNR/L | |||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
Tmax |
øDmin |
уa |
уr |
Пластины |
| S20Q PQFNR/L-09 | 20 | 180 | 40 | 18 | 9.0 | 13 | 7.5 | 28 | -6° | -12° | QNMG 0904..-.. |
| S25Q PQFNR/L-09 | 25 | 180 | 40 | 23 | 11.5 | 17 | 7.5 | 32 | -6° | -10° | |
| S32R PQFNR/L-09 | 32 | 200 | 45 | 29 | 14.5 | 22 | 7.5 | 40 | -6° | -10° | |
| S25R PQFNR/L-12 | 25 | 200 | 40 | 23 | 11.5 | 17 | 9.0 | 32 | -6° | -12° | QNMG 1204..-.. |
| S32R PQFNR/L-12 | 32 | 200 | 45 | 29 | 14.5 | 22 | 9.0 | 40 | -6° | -12° | |
| S40S PQFNR/L-12 | 40 | 250 | 50 | 36 | 18.0 | 27 | 9.0 | 50 | -6° | -10° | |
|

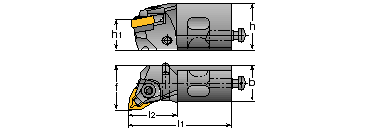

PQFNR/L-CA |
|
|
|
| PQFNR/L-CA | ||||||||||
Обозначение |
l1 |
l2 |
b |
h |
h1 |
f |
Tmax |
уa |
уr |
Пластины |
| PQFNR/L 16CA-09 | 63 | 26.4 | 20 | 25 | 16 | 25 | 7.5 | -6° | -6° | QNMG 0904..-.. |
|

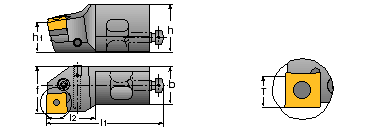

PQLNR/L-CA |
|
|
|
| PQLNR/L-CA | ||||||||||
Обозначение |
l1 |
l2 |
b |
h |
h1 |
f |
Tmax |
уa |
уr |
Пластины |
| PQLNR/L 16CA-09 | 63 | 26.4 | 20 | 25 | 16 | 25 | 7.5 | -6° | -6° | QNMG 0904..-.. |
|

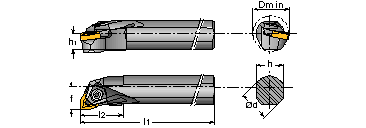

S/A-MWLNR/L-W |
|
|
|
| S/A-MWLNR/L-W | ||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin |
Пластины |
| S16Q-PWLNR/L-06 | 16 | 180 | 27 | 15 | 8 | 11 | -6° | -14° | 20 | WNM_ 06T3..-.. |
| S20S-MWLNR/L-06W | 20 | 250 | 28 | 18 | 9.2 | 13 | -6° | -10° | 25 | |
| S25T-MWLNR/L-06W | 25 | 300 | 35 | 23 | 11.7 | 17 | -6° | -14° | 32 | |
| S32U-MWLNR/L-06W | 32 | 350 | 40 | 29 | 14.7 | 19 | -6° | -10° | 36 | |
| A16M-PWLNR/L-06 | 16 | 150 | 27 | 15 | 8 | 11 | -6° | -14° | 20 | |
| A20-MWLNR/L-06W-AD | 20 | 100 | 28 | 18 | 9.2 | 13 | -6° | -10° | 25 | |
| A25R-MWLNR/L-06W | 25 | 200 | 35 | 23 | 11.7 | 17 | -6° | -14° | 32 | |
| A25Q-MWLNR/L-06W | 20 | 180 | 28 | 18 | 9.2 | 13 | -6° | -10° | 25 | |
| A25R-MWLNR/L-06W | 25 | 200 | 35 | 23 | 11.7 | 17 | -6° | -14° | 32 | |
| A32S-MWLNR/L-06W | 32 | 250 | 40 | 29 | 14.7 | 19 | -6° | -10° | 36 | |
| S25T-MWLNR/L-08W | 25 | 300 | 35 | 23 | 11.7 | 17 | -6° | -12° | 32 | WNM_ 0804..-.. |
| S32U-MWLNR/L-08W | 32 | 350 | 45 | 28 | 14.7 | 22 | -6° | -12° | 40 | |
| S40V-MWLNR/L-08W | 40 | 400 | 50 | 36 | 18.2 | 27 | -6° | -10° | 50 | |
| A25-MWLNR/L-08W-AD | 25 | 120 | 35 | 23 | 11.7 | 17 | -6° | -12° | 32 | WNGA 0804..-.. |
| A25R-MWLNR/L-08W | 25 | 200 | 35 | 23 | 11.7 | 17 | -6° | -12° | 32 | |
| A32S-MWLNR/L-08W | 32 | 250 | 45 | 28 | 14.7 | 22 | -6° | -12° | 40 | |
| A40T-MWLNR/L-08W | 40 | 300 | 50 | 36 | 18.2 | 27 | -6° | -10° | 50 | |
| S50V-MWLNR/L-13W | 50 | 400 | 63 | 47 | 23.5 | 35 | -6° | -11° | 63 | WNM_ 1306..-.. |
|

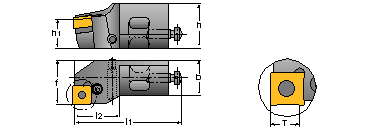

MWLNR/L-CA |
|
|
|
| MWLNR/L-CA | ||||||||||
Обозначение |
l1 |
l2 |
b |
h |
h1 |
f |
уa |
уr |
Пластины |
|
| MWLNR/L 16CA-06W | 63 | 26.4 | 20 | 25 | 16 | 25 | -8° | -8° | WNM. 06..-.. | |
|

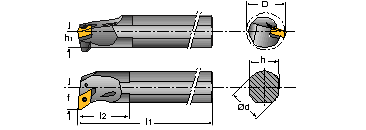

S-PCLNR/L |
|
|
|
| S-PCLNR/L | ||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin |
Пластины |
| S25S-PCLNR/L-12 | 25 | 250 | 48 | 23 | 12.1 | 17 | -6° | -12° | 32 |
CNM_ 1204..-.. CNGA 1204.. |
| S32T-PCLNR/L-12 | 32 | 300 | 51 | 30 | 15 | 22 | -6° | -12° | 40 | |
| S40U-PCLNR/L-12 | 40 | 350 | 51 | 36 | 18 | 27 | -6° | -12° | 49 | |
|

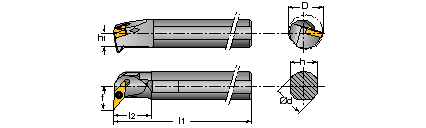

A/S-PDUNR/L |
|
|
|
| A/S-PDUNR/L | ||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin |
Пластины |
| A20Q PDUNR/L-11 | 20 | 180 | 35 | 18 | 19.2 | 16 | -6° | -14° | 25 | DNMG 1104..-.. |
| A25R-PDUNR/L-11 | 25 | 200 | 40 | 23.9 | 11.7 | 17 | -6° | -13° | 32 | |
| A32S-PDUNR/L-11 | 32 | 250 | 45 | 29 | 14.5 | 22 | -6° | -11° | 40 | |
| S32T PDUNR/L-15 | 32 | 300 | 50 | 29 | 14.5 | 22 | -6° | -13° | 40 | DNM_ 1506..-.. |
| S40U PDUNR/L-15 | 40 | 350 | 50 | 36 | 18.0 | 27 | -6° | -11.5° | 50 | DNGA 1506.. |
|

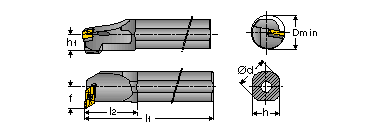

A-SKUNR/L |
|
|
|
| A-SKUNR/L | ||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin |
Пластины |
| A32U SKUNR/L-16 | 32 | 350 | 54 | 29 | 14.5 | 22 | -6° | -10° | 39 | KNMX 1604..-RP/LP(1) |
|
(1) KNMX..-RP - для левосторонних блоков. KNMX..-LP - для правосторонних блоков. |
|
A-SVUNR/L |
|
|
|
| A-SVUNR/L | ||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin |
Пластины |
| A20Q SVUNR/L-12 | 20 | 180 | 30.5 | 18 | 9.0 | 16.0 | -6.5° | -14° | 26.5 |
VNMG 12T3..-.. VNMM 12T3..-PP |
| A25R SVUNR/L-12 | 25 | 200 | 35.0 | 23 | 11.5 | 18.5 | -6.5° | -14° | 31.5 | |
| A32S SVUNR/L-12 | 32 | 250 | 50.0 | 29 | 14.5 | 23.5 | -6.5° | -14° | 37.0 | |
