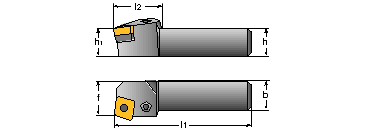

PQLNR/L |
|
|
|
| PQLNR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
Tmax(1) |
уa |
уr |
Пластины |
|
| PQLNR/L 1616H-09 | 16 | 16 | 100 | 21 | 20 | 8 | -6° | -6° | QNMG 0904..-.. | |
| PQLNR/L 2020K-09 | 20 | 20 | 125 | 26 | 25 | 8 | -6° | -6° | ||
| PQLNR/L 2525M-09 | 25 | 25 | 150 | 26 | 32 | 8 | -6° | -6° | ||
| PQLNR/L 2020K-12 | 20 | 20 | 125 | 26 | 25 | 10 | -6° | -6° | QNMG 1204..-.. | |
| PQLNR/L 2525M-12 | 25 | 25 | 150 | 26 | 32 | 10 | -6° | -6° | ||
|
PQFNR/L |
|
|
|
| PQFNR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
Tmax(1) |
уa |
уr |
Пластины |
|
| PQLNR/L 2020K-09 | 20 | 20 | 125 | 26 | 25 | 8 | -6° | -6° | QNMG 0904..-.. | |
| PQLNR/L 2525M-09 | 25 | 25 | 150 | 26 | 32 | 8 | -6° | -6° | ||
| PQLNR/L 2020K-12 | 20 | 20 | 125 | 26 | 25 | 10 | -6° | -6° | QNMG 1204..-.. | |
| PQLNR/L 2525M-12 | 25 | 25 | 150 | 26 | 32 | 10 | -6° | -6° | ||
|

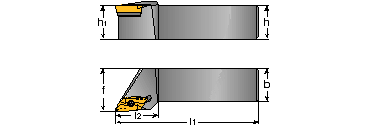

PQSNR/L |
|
|
|
| PQSNR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| PQSNR/L 2525M-12 | 25 | 25 | 150 | 30 | 32 | -4.5° | -5.5° | QNMG 1204..-.. | ||
|

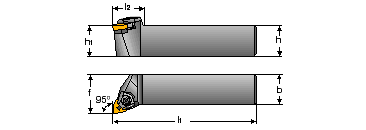

MWLNR/L-W |
|
|
|
| MWLNR/L-W | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| MWLNR/L 1616H-06SW | 16 | 16 | 100 | 20 | 16 | -6° | -6° | WNM_ 06... WNM_ 08... WNGA_ 0804... |
||
| MWLNR/L 2020K-06W | 20 | 20 | 125 | 25 | 25 | -6° | -6° | |||
| MWLNR/L 2525M-06W | 25 | 25 | 150 | 25 | 32 | -6° | -6° | |||
| MWLNR/L 2020K-08W | 20 | 20 | 125 | 30 | 25 | -6° | -6° | |||
| MWLNR/L 2525M-08W | 25 | 25 | 150 | 30 | 32 | -6° | -6° | |||
| MWLNR/L 3232P-08W | 32 | 32 | 170 | 35 | 40 | -6° | -6° | |||
| MWLNR/L 3232P-13W | 32 | 32 | 170 | 45 | 40 | -6° | -6° | WNMG 13...- | ||
| MWLNR/L 4040R-13W | 40 | 40 | 200 | 45 | 50 | -6° | -6° | |||
|

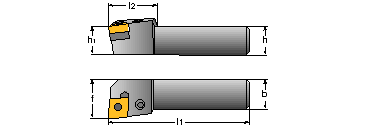

PCLNR/L |
|
|
|
| PCLNR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| PCLNR/L 2020K-12 | 20 | 20 | 125 | 30 | 25 | -6° | -6° | CNM_ 1204..-.. CNGA 1204... |
||
| PCLNR/L 2525M-12 | 25 | 25 | 150 | 30 | 32 | -6° | -6° | |||
| PCLNR/L 3232P-12 | 32 | 32 | 170 | 35 | 40 | -6° | -6° | |||
|

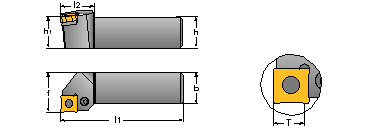

MCLNR/L |
|
|
|
| MCLNR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| MCLNR/L 2525M-16 | 25 | 25 | 150 | 35 | 32 | -6° | -6° | CNM_ 1606..-.. CNGA 1606... |
||
| MCLNR/L 3232P-19 | 32 | 32 | 170 | 35 | 40 | -6° | -6° | CNM_ 1906..-.. | ||
|

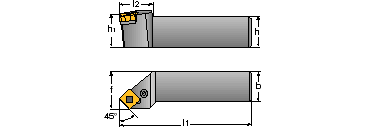

PCBNR/L |
|
|
|
| PCBNR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| PCBNR/L 2525M-12 | 25 | 25 | 150 | 27 | 22 | -6° | -6° | CNM_ 1204..-.. CNGA 1204.. |
||
|

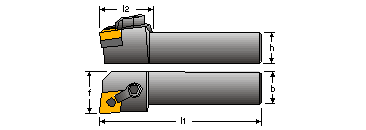

PDJNR/L |
|
|
|
| PDJNR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| PDJNR/L 1616H-11 | 16 | 16 | 100 | 30 | 20 | -6° | -7° | DNMG 1104..-.. | ||
| PDJNR/L 2020K-11 | 20 | 20 | 125 | 30 | 25 | -6° | -7° | |||
| PDJNR/L 2525M-11 | 25 | 25 | 150 | 30 | 32 | -6° | -7° | |||
| PDJNR/L 2020K-15 | 20 | 20 | 150 | 34 | 25 | -6° | -6° | DNM_ 1506..-.. DNGA 1506.. |
||
| PDJNR/L 2525M-15 | 25 | 25 | 150 | 34 | 32 | -6° | -6° | |||
| PDJNR/L 3232P-15 | 32 | 32 | 170 | 34 | 32 | -6° | -6° | |||
|

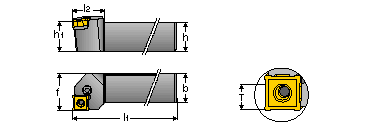

SKJNR/L |
|
|
|
| SKJNR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| SKJNR/L 2525M-16 | 25 | 25 | 150 | 30 | 32 | -0° | -6° | KNMX 1604..-RP/LP | ||
| SKJNR/L 3232P-16 | 32 | 32 | 170 | 30 | 40 | -0° | -6° | |||
