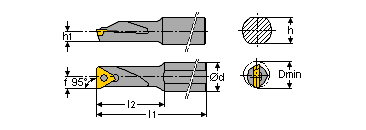

S-MTLCR/L-W |
|
|
|
| S-MTLCR/L-W | ||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin |
Пластины |
| S25S MTLCR/L-16W | 25 | 250 | 43 | 23 | 13.1 | 17 | 0° | 0° | 34 | TC__ 16T3..-.. |
| S32T MTLCR/L-16W | 32 | 300 | 45 | 29 | 14.5 | 22 | 0° | 0° | 39 | |
|

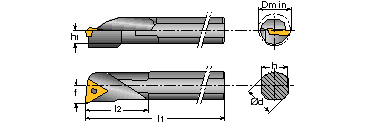

S-STFCR/L |
|
|
|
| S-STFCR/L | ||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin |
Пластины |
| S10K STFCR/L-11 | 10 | 125 | 28 | 9 | 4.5 | 7 | 0° | -6° | 13 | TC__ 1102..-.. |
| S12M STFCR/L-11 | 12 | 150 | 30 | 11 | 5.5 | 9 | 0° | -3° | 15.8 | |
|

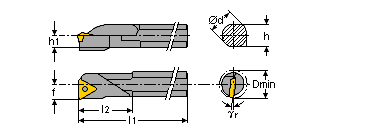

S-STLCR/L |
|
|
|
| S-STLCR/L | ||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin |
Пластины |
| S16Q STLCR/L-11 | 16 | 180 | 45 | 15 | 7.5 | 11 | 0° | -1° | 20 | TC__ 1102..-.. |
| S20R STLCR/L-16 | 20 | 200 | 50 | 18 | 9 | 13 | 0° | -3° | 25 | TC__ 16T3..-.. |
|

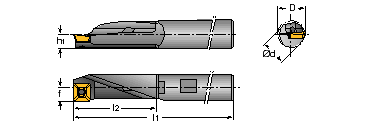

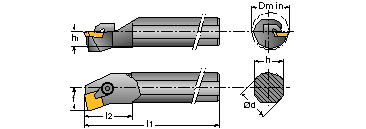

S-CSKPR/L |
|
|
|
| S-CSKPR/L | ||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin |
Пластины |
| S16Q CSKPR/L-09 | 16 | 180 | 34 | 15 | 8 | 11 | 4° | 0° | 20 |
SPMR 0903.. SPG 0903.. |
| S25S CSKPR/L-12 | 25 | 250 | 48 | 23 | 11.5 | 17 | 4° | 0° | 31 |
SPMR 1203.. SPG 1203.. |
|

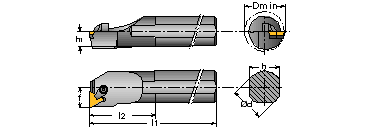

S-CTFPR/L |
|
|
|
| S-CTFPR/L | ||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin |
Пластины |
| S12L CTFPR/L-09 | 12 | 140 | 34 | 11 | 6.0 | 9 | 3° | 0° | 15.6 | TPMR 0902.. |
| S16Q CTFPR/L-11 | 16 | 180 | 38 | 15 | 8.0 | 11 | 4° | 0° | 20 |
TPMR 1103.. TPG 1103.. |
| S20R CTFPR/L-16 | 20 | 200 | 46 | 18 | 9.5 | 13 | 4° | 0° | 24 |
TPMR 1603.. TPG 1603.. |
| S25S CTFPR/L-16 | 25 | 250 | 48 | 23 | 11.5 | 17 | 5° | 0° | 31 | |
| S32T CTFPR/L-16 | 32 | 300 | 62 | 29 | 14.5 | 22 | 5° | 0° | 40 | |
| S40T CTFPR/L-16 | 40 | 300 | 62 | 36 | 18.0 | 27 | 5° | 0° | 48 | |
|

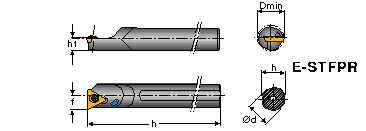

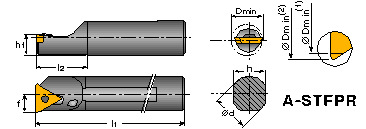

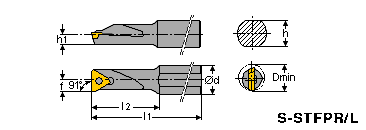

A/E(3)/S-STFPR/L |
|
|
|
|
|
|
|
| A/E(3)/S-STFPR/L | |||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin(2) |
øDmin(1) |
Пластины |
| A10K STFPR-11 | 10 | 125 | - | 9.5 | 5.8 | 6.0 | 3° | 0° | 12.0 | 11.0 | TPMT 1102.. TPGB 110204 XL TPGH 1102..__ |
| A12Q STFPR-11 | 12 | 180 | - | 11.5 | 6.8 | 7.0 | 4° | 0° | 14.0 | 13.0 | |
| E10M STFPR-11 | 10 | 150 | - | 9.0 | 5.3 | 6.0 | 3° | 0° | 12.0 | 11.0 | |
| E12P STFPR-11 | 12 | 170 | - | 11.0 | 6.3 | 7.0 | 4° | 0° | 14.0 | 13.0 | |
| S12K STFPR/L-11 | 12 | 125 | 35 | 11.0 | 6.3 | 5.6 | 3° | 0° | 11.0 | 9.7 | |
| S12M STFPR/L-11 | 12 | 150 | 27 | 11.0 | 6.3 | 7.0 | 4° | 0° | 15.0 | 14.0 | |
| S16Q STFPR/L-11 | 16 | 180 | 27 | 15.0 | 8.0 | 9.2 | 5° | 0° | 18.0 | 17.0 | |
| S20R STFPR/L-16 | 20 | 200 | 63 | 18.0 | 10.0 | 10.2 | 5° | 0° | 21.5 | - | TPMT 1603.. TPGB 1603..-60 TPGH 1603..L |
|
(1) Когда используется с пластиной TPG_ 110204 XL. (2) Когда используется с пластиной TP__ 110204_. (3) Резцы типа Е с твердосплавным хвостовиком. |
|

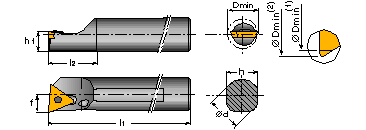

A/S-STLPR/L |
|
|
|
|
|
| A/S-STLPR/L | |||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin(2) |
øDmin(1) |
Пластины |
| A10K STLPR-11 | 10 | 125 | - | 9.5 | 5.8 | 6.0 | 3° | 0° | 12.0 | 11.0 | TPMT 1102.. TPGB 110204 XL TPGH 1102..__ |
| A12Q STLPR-11 | 12 | 180 | - | 11.5 | 6.8 | 7.0 | 4° | 0° | 14.0 | 13.0 | |
| S12K STLPR/L-11 | 12 | 125 | 35 | 11.0 | 6.3 | 5.6 | 3° | 0° | 11.0 | 9.7 | |
| S12M STLPR/L-11 | 12 | 150 | 27 | 11.0 | 6.3 | 7.0 | 4° | 0° | 15.0 | 14.0 | |
| S16Q STLPR/L-11 | 16 | 180 | 27 | 15.0 | 8.0 | 9.2 | 5° | 0° | 18.0 | 17.0 | |
| S20R STLPR/L-16 | 20 | 200 | 63 | 18.0 | 10.0 | 10.2 | 5° | 0° | 21.5 | - | TPMT 1603.. TPGB 1603..-60 TPGH 1603..L |
|
(1) Когда используется с пластиной TPG_ 110204 XL. (2) Когда используется с пластиной TP__ 110204_. |
|

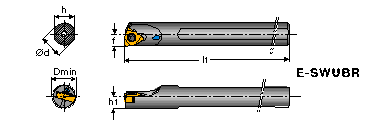

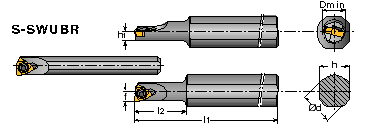

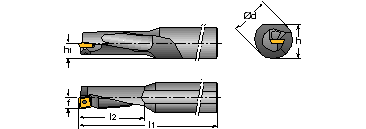

E(3)/S-SWUBR |
|
|
|
|
|
| E(3)/S-SWUBR | ||||||||||
Обозначение |
ød |
l1 |
l2 |
h |
h1 |
f |
уa |
уr |
øDmin(2) |
Пластины |
| E06H SWUBR-06 | 6.0 | 100 | - | 5.2 | 2.6 | 3.25 | 0° | -15° | 6.5 | WBMT 060102L |
| E08K SWUBR-06 | 8.0 | 125 | - | 7.6 | 3.8 | 4.30 | 0° | -8° | 8.6 | |
| E10M SWUBR-06 | 10.0 | 150 | - | 9.0 | 4.5 | 5.60 | 0° | -12° | 11.0 | |
| S0606H SWUBR-06 | 6.0 | 100 | - | 5.2 | 2.6 | 3.25 | 0° | -15° | 6.5 | WBMT 060102R/L(1) |
| S0610H SWUBR/L-06 | 10.0 | 100 | 20 | 9.0 | 4.5 | 3.00 | 0° | -15° | 6.0 | |
| S0710H SWUBR/L-06 | 10.0 | 100 | 24 | 9.0 | 4.5 | 3.50 | 0° | -13° | 7.0 | |
| S0808J SWUBR-06 | 8.0 | 110 | - | 7.4 | 3.7 | 4.25 | 0° | -12° | 8.5 | |
| S0812J SWUBR/L-06 | 12.0 | 110 | 32 | 11.0 | 5.5 | 4.00 | 0° | -12° | 8.0 | |
| S1010K SWUBR-06 | 10.0 | 125 | - | 9.0 | 4.5 | 5.60 | 0° | -12° | 11.0 | |
| SIR/L 0005 H06(2) | 12.0 | 100 | 12 | 11.0 | 5.5 | 3.35 | -2° | -18° | 6.4 | |
| SIR/L 0005 H06C(3) | 6.0 | 100 | 25 | 5.2 | 5.5 | 3.35 | -2° | -18° | 6.4 | |
|
(1) WBMT 520R для державки LH, WBMT 520L для державки RH. (2) Державка для внутреннего резьбонарезания. (3) Твердосплавный хвостовик. (4) Резцы типа Е с твердосплавным хвостовиком. |
|

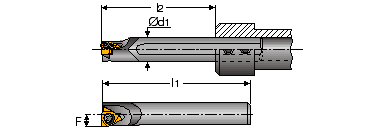

MGSIR/L |
|
|
|
| MGSIR/L | ||||||||||
Обозначение |
ød1 |
L |
L1min(3) |
L2max(3) |
f |
øDmin |
Пластины |
|||
| MGSIR/L 06-06W | 6 | 59 | 16 | 42 | 3.43 | 6.6 | WBMT 060102R/L(1) | |||
| MGSIR/L 08-06W | 8 | 72 | 20 | 56 | 4ю53 | 8.8 | ||||
|
A-SXFOR |
|
|
|
| A-SXFOR | ||||||||||
Обозначение |
ød1 |
l1 |
l2 |
h1 |
f |
уa |
уr |
øDmin |
Пластины |
|
| A10J SXFOR/L 06 | 10 | 110 | 28.5 | 5 | 4.9 | 0° | 0° | 10 | XOMT-DT | |
| A12K SXFOR/L 06 | 12 | 125 | 28.5 | 6 | 4.9 | 0° | 0° | 10 | XOMT-HQ | |
|
A-SXFOR-DR |
|
|
|
| A-SXFOR-DR | ||||||||||
Обозначение |
ød1 |
l1 |
l2 |
h1 |
f |
уa |
уr |
h |
Пластины |
|
| A1612M-SXFOR-06DR | 16 | 180 | 8.5 | 21 | 6.25 | 0° | 0° | 15 | XOMT-DT XOMT-HQ |
|
