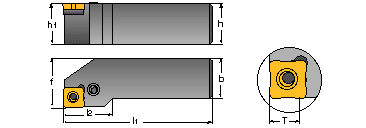

PQLCR/L |
|
|
|
| PQLCR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
f1 |
Tmax |
уa |
уr |
Пластины |
| PQLCR/L 1616H-09 | 16 | 16 | 100 | 22 | 20 | -- | 8.5 | 0° | 0° | QCMT 09T304-SM |
| PQLCR/L 2020K-09 | 20 | 20 | 125 | 25 | 25 | -- | 8.5 | 0° | 0° | |
| PQLCR/L 2525M-09 | 25 | 25 | 150 | 25 | 32 | -- | 8.5 | 0° | 0° | |
|

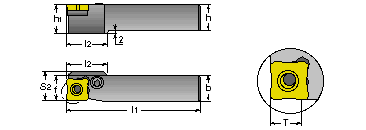

PQLCR-A |
|
|
|
| PQLCR-A | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
f1 |
Tmax |
уa |
уr |
Пластины |
| PQLCR/L 1212M-09-A | 12 | 12 | 150 | 19.5 | 12 | 14 | 8.5 | 0° | 0° | QCMT 09T304-SM |
| PQLCR/L 1616M-09-A | 16 | 16 | 150 | -- | 16 | -- | 8.5 | 0° | 0° | |
|

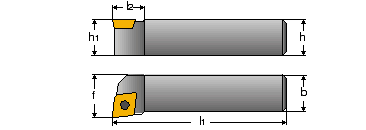

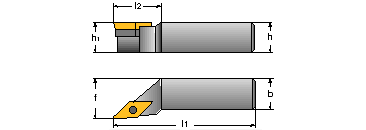

SCLCR/L |
|
|
|
| SCLCR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
f1 |
уa |
уr |
Пластины |
|
| SCLCR/L 0808F-06 | 8 | 8 | 80 | 10 | 10 | -- | 0° | 0° | CC__ 0602..-.. | |
| SCLCR/L 1010F-06 | 10 | 10 | 80 | 10 | 12 | -- | 0° | 0° | ||
| SCLCR/L 1212F-09 | 12 | 12 | 80 | 14 | 16 | -- | 0° | 0° | CC__ 09T3..-.. | |
| SCLCR/L 1616H-09 | 16 | 16 | 100 | 14 | 20 | -- | 0° | 0° | ||
| SCLCR/L 2020K-12 | 20 | 20 | 125 | 18 | 25 | -- | 0° | 0° | CC__ 1204..-.. | |
| SCLCR/L 2525M-12 | 25 | 25 | 150 | 20 | 32 | -- | 0° | 0° | ||
|

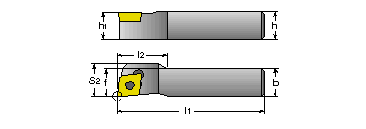

SCACR |
|
|
|
| SCACR | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
f1 |
уa |
уr |
Пластины |
|
| SCACR 1010M-06 | 10 | 10 | 150 | -- | 10 | -- | 0° | 0° | CC__ 0602..-.. | |
| SCACR 1212M-09 | 12 | 12 | 150 | 15 | 12 | 14 | 0° | 0° | CC__ 09T3..-.. | |
|

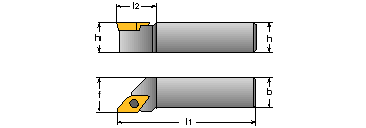

SDJCR/L |
|
|
|
| SDJCR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
f1 |
уa |
уr |
Пластины |
|
| SDJCR/L 0808F-07 | 8 | 8 | 80 | 10 | 10 | -- | 0° | 0° | DC__ 0702..-.. | |
| SDJCR/L 1010F-07 | 10 | 10 | 80 | 10 | 12 | -- | 0° | 0° | ||
| SDJCR/L 1212F-11 | 12 | 12 | 80 | 20 | 16 | -- | 0° | 0° | DC__ 11T3..-.. | |
| SDJCR/L 1616H-11 | 16 | 16 | 100 | 20 | 20 | -- | 0° | 0° | ||
| SDJCR/L 2020K-11 | 20 | 20 | 125 | 20 | 25 | -- | 0° | 0° | ||
| SDJCR/L 2525M-11 | 25 | 25 | 150 | 28 | 32 | -- | 0° | 0° | ||
|

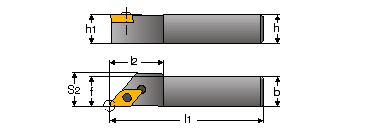

SDACR |
|
|
|
| SDACR | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
f1 |
уa |
уr |
Пластины |
|
| SDACR/L 1010M-07 | 10 | 10 | 150 | -- | 10 | -- | 0° | 0° | DC__ 0702..-.. | |
| SDACR/L 1212M-07 | 12 | 12 | 150 | -- | 12 | -- | 0° | 0° | ||
| SDACR/L 1212M-11 | 12 | 12 | 150 | 20 | 12 | 14 | 0° | 0° | DC__ 11T3..-.. | |
| SDACR/L 1616M-11 | 16 | 16 | 150 | -- | 16 | -- | 0° | 0° | ||
|

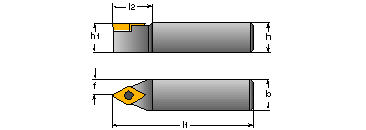

SDNCN |
|
|
|
| SDNCN | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| SDNCN 0808F-07 | 8 | 8 | 80 | 14 | 4 | 0° | 0° | DC__ 0702..-.. | ||
| SDNCN 1010F-07 | 10 | 10 | 80 | 14 | 5 | 0° | 0° | |||
| SDNCN 1212F-11 | 12 | 12 | 80 | 20 | 6 | 0° | 0° | DC__ 11T3..-.. | ||
| SDNCN 1616H-11 | 16 | 16 | 100 | 21 | 8 | 0° | 0° | |||
| SDNCN 2020K-11 | 20 | 20 | 125 | 21 | 10 | 0° | 0° | |||
| SDNCN 2525M-11 | 25 | 25 | 150 | 30 | 12.5 | 0° | 0° | |||
|

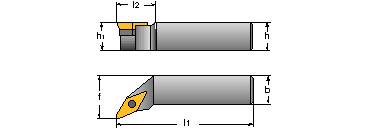

SVJCR/L |
|
|
|
| SVJCR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| SVJCR/L 2020K-16 | 20 | 20 | 125 | 35 | 25 | 0° | 0° | VC__ 1604..-.. | ||
| SVJCR/L 2525M-16 | 25 | 25 | 150 | 34 | 32 | 0° | 0° | |||
|
SVACR |
|
|
|
| SVACR | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| SVACR 1212M-11 | 12 | 12 | 150 | -- | 12 | 0° | 0° | VC__ 1103..-.. | ||
| SVACR 1616M-11 | 16 | 16 | 150 | -- | 16 | 0° | 0° | |||
|

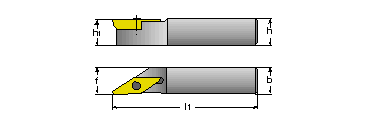

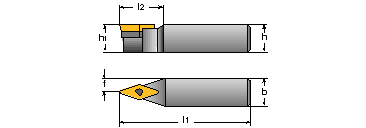

SVVCN |
|
|
|
| SVVCN | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| SVVCN 2020K-16 | 20 | 20 | 125 | 34 | 10 | 0° | 0° | VC__ 1604..-.. | ||
| SVVCN 2525M-16 | 25 | 25 | 150 | 34 | 12.5 | 0° | 0° | |||
|
SVXCR/L |
|
|
|
| SVXCR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| SVXCR/L 2020K-16 | 20 | 20 | 125 | 25 | 25 | 0° | 0° | VC__ 1604..-.. | ||
| SVXCR/L 2525M-16 | 25 | 25 | 150 | 30 | 32 | 0° | 0° | |||
