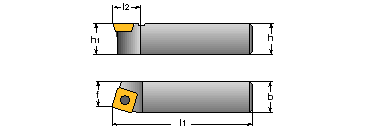

SSBCR/L |
|
|
|

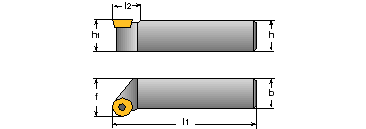

| SSBCR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| SSBCR/L 1616H-09 | 16 | 16 | 100 | 15 | 13 | 0° | 0° | SC__ 09T3..-.. | ||
| SSBCR/L 2020K-12 | 20 | 20 | 125 | 19 | 17 | 0° | 0° | SC__ 1204..-.. | ||
| SSBCR/L 2525M-12 | 25 | 25 | 150 | 19 | 22 | 0° | 0° | |||
|
SSSCR/L |
|
|
|

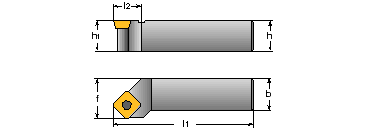

| SSSCR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| SSSCR/L 1212F-09 | 12 | 12 | 86 | 18 | 16 | 0° | 0° | SC__ 09T3..-.. | ||
| SSSCR/L 1616H-09 | 16 | 16 | 106 | 18 | 20 | 0° | 0° | |||
| SSSCR/L 2020K-12 | 20 | 20 | 133 | 22 | 25 | 0° | 0° | SC__ 1204..-.. | ||
| SSSCR/L 2525M-12 | 25 | 25 | 158 | 25 | 32 | 0° | 0° | |||
|

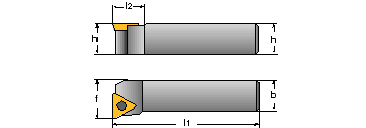

STFCR/L |
|
|
|
| STFCR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| STFCR/L 1212F-11 | 12 | 12 | 80 | 13 | 16 | 0° | 0° | TC__ 1102..-.. | ||
| STFCR/L 2020K-16 | 20 | 20 | 125 | 18 | 25 | 0° | 0° | TC__ 16T3..-.. | ||
| STFCR/L 2525M-16 | 25 | 25 | 150 | 20 | 32 | 0° | 0° | |||
|
STGCR/L |
|
|
|

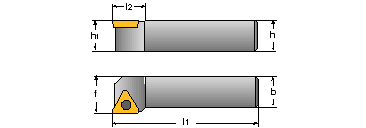

| STGCR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| STGCR/L 1212F-11 | 12 | 12 | 80 | 13 | 16 | 0° | 0° | TC__ 1102..-.. | ||
| STGCR/L 1616H-11 | 16 | 16 | 100 | 13 | 20 | 0° | 0° | |||
| STGCR/L 2020K-16 | 20 | 20 | 125 | 18 | 25 | 0° | 0° | TC__ 16T3..-.. | ||
| STGCR/L 2525M-16 | 25 | 25 | 150 | 18 | 32 | 0° | 0° | |||
|
SRGCR/L |
|
|
|
| SRGCR/L | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| SRGCR/L 1616H-08 | 16 | 16 | 100 | 11 | 20 | 0° | 0° | RC_T 0803M0-.. | ||
| SRGCR/L 2020K-10 | 20 | 20 | 125 | 14 | 25 | 0° | 0° | RC_T 10T3M0-.. | ||
| SRGCR/L 2525M-12 | 25 | 25 | 150 | 18 | 32 | 0° | 0° | RC_T 1004M0-.. | ||
| SRGCR/L 2525M-16 | 25 | 25 | 150 | 20 | 32 | 0° | 0° | RC_T 1606M0-.. | ||
| SRGCR/L 3232P-20 | 32 | 32 | 170 | 25 | 40 | 0° | 0° | RC_T 2006M0-.. | ||
|
SRDCN |
|
|
|

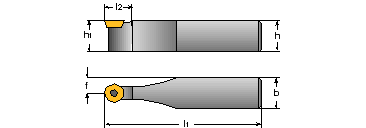

| SRDCN | ||||||||||
Обозначение |
h=h1 |
b |
l1 |
l2 |
f |
уa |
уr |
Пластины |
||
| SRDCN 1616H-08 | 16 | 16 | 100 | 16 | 8 | 0° | 0° | RC_T 0803M0-.. | ||
| SRDCN 2020K-10 | 20 | 20 | 125 | 20 | 10 | 0° | 0° | RC_T 10T3M0-.. | ||
| SRDCN 2525M-12 | 25 | 25 | 150 | 25 | 12.5 | 0° | 0° | RC_T 1004M0-.. | ||
| SRDCN 3232P-12 | 32 | 25 | 170 | 25 | 12.5 | 0° | 0° | |||
| SRDCN 3232P-16 | 32 | 32 | 170 | 32 | 12.5 | 0° | 0° | RC_T 1606M0-.. | ||
| SRDCN 3232P-20 | 32 | 32 | 170 | 32 | 16 | 0° | 0° | RC_T 2006M0-.. | ||
|
SWAPR/L |
|
|
|

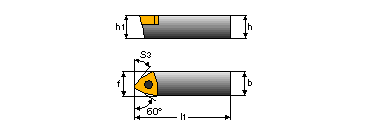

| SWAPR/L | ||||||||||
Обозначение |
h=h1 |
b |
l |
f |
Kr |
Пластины |
||||
| SWAPR/L 0708-04 | 7 | 8 | 140 | 8.1 | 6° | WPEB, WPEX | ||||
| SWAPR/L 0808-04 | 8 | 8 | 140 | 8.1 | 6° | |||||
| SWAPR/L 1010-05 | 10 | 10 | 150 | 10.1 | 10° | |||||
| SWAPR/L 1212-06 | 12 | 12 | 150 | 12.1 | 10° | |||||
| SWAPR/L 1414-06 | 14 | 14 | 150 | 14.1 | 10° | |||||
| SWAPR/L 1616-06 | 16 | 16 | 150 | 16.1 | 10° | |||||
|
SWBPR/L |
|
|
|

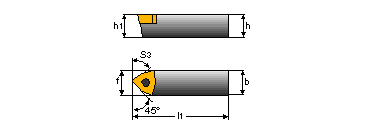

| SWBPR/L | ||||||||||
Обозначение |
h=h1 |
b |
l |
f |
Kr |
Пластины |
||||
| SWBPR/L 0810-04 | 8 | 10 | 150 | 10.1 | 21° | WPEB, WPEX | ||||
| SWBPR/L 1010-04 | 10 | 10 | 150 | 10.1 | 21° | |||||
| SWBPR/L 1212-05 | 12 | 12 | 150 | 12.1 | 25° | |||||
| SWBPR/L 1414-06 | 14 | 14 | 150 | 14.1 | 25° | |||||
| SWBPR/L 1616-06 | 16 | 16 | 150 | 16.1 | 25° | |||||
|
SWDPR/L |
|
|
|

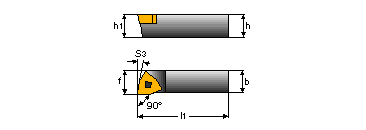

| SWDPR/L | ||||||||||
Обозначение |
h=h1 |
b |
l |
f |
Kr |
Пластины |
||||
| SWDPR/L 0810-04 | 8 | 10 | 150 | 10.1 | 51° | WPEB, WPEX | ||||
| SWDPR/L 1010-04 | 10 | 10 | 150 | 10.1 | 51° | |||||
| SWDPR/L 1212-05 | 12 | 12 | 150 | 12.1 | 55° | |||||
| SWDPR/L 1414-06 | 14 | 14 | 150 | 14.1 | 55° | |||||
| SWDPR/L 1616-06 | 16 | 16 | 150 | 16.1 | 55° | |||||
|

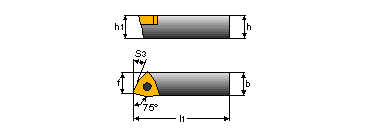

SWEPR/L |
|
|
|
| SWEPR/L | ||||||||||
Обозначение |
h=h1 |
b |
l |
f |
Kr |
Пластины |
||||
| SWEPR/L 0810-04 | 8 | 10 | 150 | 10.1 | 36° | WPEB, WPEX | ||||
| SWEPR/L 1010-04 | 10 | 10 | 150 | 10.1 | 36° | |||||
| SWEPR/L 1212-05 | 12 | 12 | 150 | 12.1 | 40° | |||||
| SWEPR/L 1414-06 | 14 | 14 | 150 | 14.1 | 40° | |||||
| SWEPR/L 1616-06 | 16 | 16 | 150 | 16.1 | 40° | |||||
