FOR SHRINKING PROCESSES |
|
for Ø 4 |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - SK and BT arbors with coolant supply through collar on request - other dimensions on request |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| Plain shank | |||||||||||
 |
112 04 604 S | Ø 4 | 112 | 9 | 16 | Ø 16 | -- | 160 | -- | 375-378 |
 |
| 115 04 604 S.01 | Ø 4 | 115 | 10.5 | 12 | Ø 12 | -- | 160 | -- | 385 |
|
|
| SK 30 DIN 69 871 AD | |||||||||||
 |
50 04 730 S.01 | Ø 4 | 50 | 10.5 | 14.9 | SK 30 | DIN 69871 AD |
-- | 7.8 | A, B |
|
 KBSK30-69872A A > Page 406 |
 KBSK30-69872B B > Page 406 |
||||||||||
| BT 30 MAS BT | |||||||||||
 |
50 04 734 S.01 | Ø 4 | 50 | 10.5 | 14.9 | Ø 30 | JIS B 6339 AD |
-- | 7.8 | 375-378 |
|
| SK 40 DIN 69 871 AD | |||||||||||
 |
50 04 750 S.01 | Ø 4 | 50 | 10.5 | 14.9 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
| 75 04 750 S.01 | Ø 4 | 75 | 10.5 | 17.54 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
| 100 04 750 S.01 | Ø 4 | 100 | 10.5 | 20.16 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
|
KBSK40-69872A A > Page 406 |
KBSK40-69872B B > Page 406 |
||||||||||
| Int.taper 40 MAS BT | |||||||||||
|
50 04 754 S.01 | Ø 4 | 50 | 10.5 | 14.9 | BT 40 | JIS B 6339 AD |
-- | 7.8 |
|
|
| 100 04 754 S.01 | Ø 4 | 100 | 10.5 | 20.16 | BT 40 | JIS B 6339 AD |
-- | 7.8 |
|
||
| HSK 25 Form E | |||||||||||
 |
40 04 E25 S.01 | Ø 4 | 40 | 10.5 | 13.9 | HSK 25 |
form E | -- | 7.8 | A, B |
|
 KMR-25 A > Page 406 |
 SCHLUESSELHSK25 B > Page 406 |
||||||||||
| Hollow taper shank 32 E | |||||||||||
|

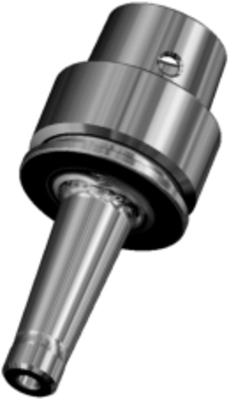

40 04 E32 S.01 | Ø 4 | 40 | 10.5 | 13.87 | HSK 32 |
form E | -- | 7.8 | A, B |
|
|
KMR-32 A > Page 406 |
SCHLUESSELHSK32 B > Page 406 |
||||||||||
| Hollow taper shank 40 E | |||||||||||
 |

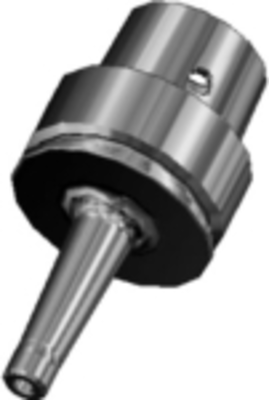

40 04 E40 S.01 | Ø 4 | 40 | 10.5 | 13.9 | HSK 40 |
form E | -- | 7.8 | A, B |
|

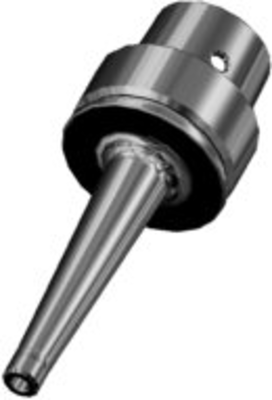

| 70 04 E40 S.01 | Ø 4 | 70 | 10.5 | 17.02 | HSK 40 |
form E | -- | 7.8 | A, B |
|
|
|
KMR-40A A > Page 406 |
SCHLUESSELHSK40 B > Page 406 |
||||||||||
| Hollow taper shank 40 EC | |||||||||||
 |
40 04 EC 40 S.01 | Ø 4 | 40 | 10.5 | 13.87 | HSK 40 |
form C+E | -- | 7.8 | -- |
|
| 70 04 EC 40 S.01 | Ø 4 | 70 | 10.5 | 17.00 | HSK 40 |
form C+E | -- | 7.8 | -- |
|
|
| Hollow taper shank 50 E | |||||||||||
 |

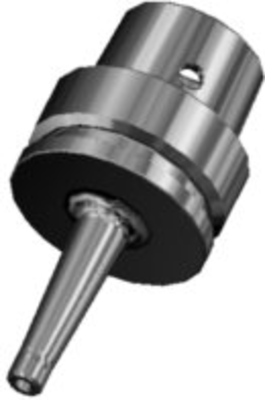

50 04 E50 S.01 | Ø 4 | 50 | 10.5 | 14.92 | HSK 50 |
form E | -- | 7.8 | A, B |
|
| 100 04 E50 S.01 | Ø 4 | 100 | 10.5 | 20.1 | HSK 50 |
form E | -- | 7.8 | A, B |
|
|
| 150 04 E50 S | Ø 4 | 150 | 9 | 24 | HSK 50 |
form E | -- | 7.8 | A, B |
|
|
|
KMR-50A A > Page 406 |
SCHLUESSELHSK50 B > Page 406 |
||||||||||
| Hollow taper shank 63 A | |||||||||||
 |
50 04 A63 S.01 | Ø 4 | 50 | 10.5 | 14.92 | HSK 63 |
form A | -- | 7.8 | A, B |
|
| 75 04 A63 S.01 | Ø 4 | 75 | 10.5 | 17.54 | HSK 63 |
form E | -- | 7.8 | A, B |
|
|
| 100 04 A63 S.01 | Ø 4 | 100 | 10.5 | 20.16 | HSK 63 |
form A | -- | 7.8 | A, B |
|
|
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||
| Hollow taper shank 63 F | |||||||||||
 |
50 04 F63 S | Ø 4 | 50 | 9 | 14 | HSK 63 |
form F | -- | 7.8 |
|
|
| 100 04 F63 S | Ø 4 | 100 | 9 | 19 | HSK 63 |
form F | -- | 7.8 |
|
||
| ER 20 | |||||||||||
 |
40 04 674 S | Ø 4 | 40 | 12 | 15 | ER 20 | -- | -- | 3 | 386-387 |
|
| 60 04 674 S | Ø 4 | 60 | 9 | 15.8 | ER 20 | -- | -- | 7.8 | 386-387 |
|
|
| 80 04 674 S | Ø 4 | 80 | 12 | 15 | ER 20 | -- | -- | 3 | 386-387 |
|
|
| DuoPlug® | |||||||||||
 |
30 04 07 SG | Ø 4 | 30 | 9 | 10.8 | M 7 | -- | -- | 12.6 | 310-311 |
|
| 35 04 10 SG | Ø 4 | 35 | 9 | 18.5 | M 10 | -- | -- | -- | 310-311 |
|
|
| 45 04 12 SG | Ø 4 | 45 | 9 | 18.5 | M 12 | -- | -- | -- | 310-311 |
|
|
