FOR SHRINKING PROCESSES |
|
for Ø 12 |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - SK and BT arbors with coolant supply through collar on request - other dimensions on request |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| Plain shank | |||||||||||
 |
104 12 604 S | Ø 12 | 104 | 17 | 25 | Ø 25 | -- | 160 | -- | 382-383 |
 |
| SK 30 DIN 69 871 AD | |||||||||||
 |
50 12 730 S | Ø 12 | 50 | 24 | 28.4 | SK 30 | DIN 69871 AD |
-- | 7.8 | A, B |
|
 KBSK30-69872A A > Page 406 |
 KBSK30-69872B B > Page 406 |
||||||||||
| BT 30 MAS BT | |||||||||||
 |
50 12 734 S | Ø 12 | 50 | 24 | 29 | Ø 30 | JIS B 6339 AD |
-- | 7.8 | 375-378 |
|
| SK 40 DIN 69 871 AD | |||||||||||
|

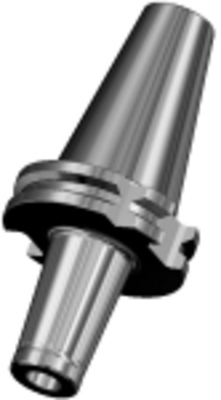

50 12 750 S | Ø 12 | 50 | 24 | 28.4 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
| 75 12 750 S | Ø 12 | 75 | 24 | 31 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
| 100 12 750 S | Ø 12 | 100 | 24 | 33.6 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
|
KBSK40-69872A A > Page 406 |
KBSK40-69872B B > Page 406 |
||||||||||
| SK 40 DIN 69 871 AD | reinforced version | |||||||||||
 |
50 12 750 SB | Ø 12 | 50 | 24 | 30.6 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
| 100 12 750 SB | Ø 12 | 100 | 24 | 38.5 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
|
KBSK40-69872A A > Page 406 |
KBSK40-69872B B > Page 406 |
||||||||||
| Int.taper 40 MAS BT | |||||||||||
 |
50 12 754 S | Ø 12 | 50 | 24 | 29 | BT 40 | JIS B 6339 AD |
-- | 7.8 |
|
|
| 100 12 754 S | Ø 12 | 100 | 24 | 33.7 | BT 40 | JIS B 6339 AD |
-- | 7.8 |
|
||
| Int.taper 50 DIN 69 871 AD | |||||||||||
|
50 12 710 S | Ø 12 | 50 | 24 | 28.4 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
| 100 12 710 S | Ø 12 | 100 | 24 | 33.7 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
| 150 12 710 S | Ø 12 | 150 | 24 | 39 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
| 200 12 710 S | Ø 12 | 200 | 24 | 44 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
|
KBSK50-69872A A > Page 406 |
KBSK50-69872B B > Page 406 |
||||||||||
| BT 50 MAS BT | |||||||||||
|
50 12 714 S | Ø 12 | 50 | 24 | 28.4 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
|
| 100 12 714 S | Ø 12 | 100 | 24 | 33.7 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
||
| 150 12 714 S | Ø 12 | 150 | 24 | 39 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
||
| 200 12 714 S | Ø 12 | 200 | 24 | 44 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
||
| Hollow taper shank 40 E | |||||||||||
 |

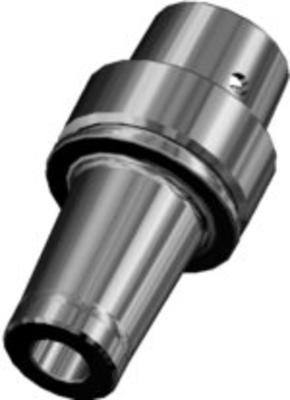

40 12 E40 S | Ø 12 | 40 | 24 | 27.4 | HSK 40 |
form E | -- | 7.8 | A, B |
|
| 70 12 E40 S | Ø 12 | 70 | 24 | 30.5 | HSK 40 |
form E | -- | 7.8 | A, B |
|
|
 KMR-40A A > Page 406 |
 SCHLUESSELHSK40 B > Page 406 |
||||||||||
| Hollow taper shank 40 EC | |||||||||||
 |
40 12 EC 40 S | Ø 12 | 40 | 24 | 28 | HSK 40 |
form C+E | -- | 7.8 | -- |
|
| 70 12 EC 40 S | Ø 12 | 70 | 24 | 30.5 | HSK 40 |
form C+E | -- | 7.8 | -- |
|
|
| Hollow taper shank 50 E | |||||||||||
 |

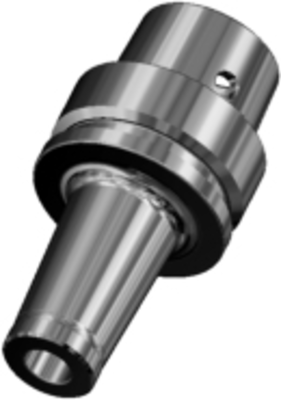

50 12 E50 S | Ø 12 | 50 | 24 | 28.4 | HSK 50 |
form E | -- | 7.8 | A, B |
|
| 100 12 E50 S | Ø 12 | 100 | 24 | 34 | HSK 50 |
form E | -- | 7.8 | A, B |
|
|
|
KMR-50A A > Page 406 |
SCHLUESSELHSK50 B > Page 406 |
||||||||||
| Hollow taper shank 63 A | |||||||||||
 |
50 12 A63 S | Ø 12 | 50 | 24 | 28.4 | HSK 63 |
form A | -- | 7.8 | A, B |
|
| 75 12 A63 S | Ø 12 | 75 | 24 | 31 | HSK 63 |
form A | -- | 7.8 | A, B |
|
|
| 100 12 A63 S | Ø 12 | 100 | 24 | 33.7 | HSK 63 |
form A | -- | 7.8 | A, B |
|
|
| 150 12 A63 S | Ø 12 | 150 | 24 | 39 | HSK 63 |
form E | -- | 7.8 | A, B |
|
|
| 200 12 A63 S | Ø 12 | 200 | 24 | 44.1 | HSK 63 |
form A | -- | 7.8 | A, B |
|
|
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||
| Hollow taper shank 63 F | |||||||||||
 |
50 12 F63 S | Ø 12 | 50 | 24 | 29 | HSK 63 |
form F | -- | 7.8 |
|
|
| Hollow taper shank 100 A | |||||||||||
|
100 12 A100 S | Ø 12 | 100 | 24 | 33.7 | HSK 100 |
form A | -- | 7.8 | A, B |
|
| 150 12 A100 S | Ø 12 | 150 | 24 | 39 | HSK 100 |
form A | -- | 7.8 | A, B |
|
|
|
KMR-100A A > Page 406 |
SCHLUESSELHSK100 B > Page 406 |
||||||||||
| Morse taper shank adapters | |||||||||||
 |
50 12 MK3 S | Ø 12 | 50 | 24 | 24.5 | MTS 3 |
-- | -- | 7.8 | 336-339 |
|
| 100 12 MK3 S | Ø 12 | 100 | 24 | 24 | MTS 3 |
-- | -- | -- | 336-339 |
|
|
| 150 12 MK3 S | Ø 12 | 150 | 24 | 31 | MTS 4 |
-- | -- | 7.8 | 336-339 |
|
|
| 200 12 MK5 S | Ø 12 | 200 | 24 | 44.5 | MTS 5 |
-- | -- | 7.8 | 336-339 |
|
|
| for threaded shanks | |||||||||||
 |
60 12 12 784 S | Ø 12 | 60 | 21 | 21 | M 12 | -- | -- | 7.8 |
|
|
| 60 12 16 784 S | Ø 12 | 60 | 24 | 29 | M 16 | -- | -- | 7.8 |
|
||
