FOR SHRINKING PROCESSES |
|
for Ø 10 |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - SK and BT arbors with coolant supply through collar on request - other dimensions on request |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| Plain shank | |||||||||||
 |
104 10 604 S | Ø 10 | 104 | 15 | 25 | Ø 25 | -- | 160 | -- | 382-383 |
 |

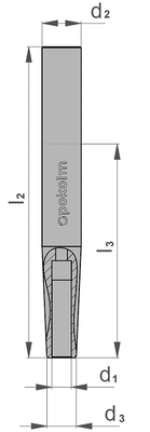

| 110 10 604 S | Ø 10 | 110 | 15 | 20 | Ø 20 | -- | 160 | -- | 379-381 |
|
|
| SK 30 DIN 69 871 AD | |||||||||||
 |
50 10 730 S | Ø 10 | 50 | 20 | 24.4 | SK 30 | DIN 69871 AD |
-- | 7.8 | A, B |
|
 KBSK30-69872A A > Page 406 |
 KBSK30-69872B B > Page 406 |
||||||||||
| BT 30 MAS BT | |||||||||||
 |
50 10 734 S | Ø 10 | 50 | 20 | 24.4 | Ø 30 | JIS B 6339 AD |
-- | 7.8 | 375-378 |
|
| SK 40 DIN 69 871 AD | |||||||||||
|
50 10 750 S | Ø 10 | 50 | 20 | 24.4 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
| 75 10 750 S | Ø 10 | 75 | 20 | 27 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
| 100 10 750 S | Ø 10 | 100 | 20 | 29.7 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
|
KBSK40-69872A A > Page 406 |
KBSK40-69872B B > Page 406 |
||||||||||
| SK 40 DIN 69 871 AD | reinforced version | |||||||||||
 |
50 10 750 SB | Ø 10 | 50 | 24 | 30.6 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
| 100 10 750 SB | Ø 10 | 100 | 24 | 38.5 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
|
KBSK40-69872A A > Page 406 |
KBSK40-69872B B > Page 406 |
||||||||||
| Int.taper 40 MAS BT | |||||||||||
|
50 10 754 S | Ø 10 | 50 | 20 | 24.4 | BT 40 | JIS B 6339 AD |
-- | 7.8 |
|
|
| 100 10 754 S | Ø 10 | 100 | 20 | 29.7 | BT 40 | JIS B 6339 AD |
-- | 7.8 |
|
||
| Int.taper 50 DIN 69 871 AD | |||||||||||
|

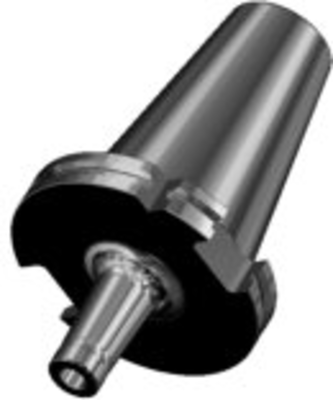

50 10 710 S | Ø 10 | 50 | 20 | 25 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
| 100 10 710 S | Ø 10 | 100 | 20 | 30 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
| 150 10 710 S | Ø 10 | 150 | 20 | 35 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
| 200 10 710 S | Ø 10 | 200 | 20 | 40 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
|
KBSK50-69872A A > Page 406 |
KBSK50-69872B B > Page 406 |
||||||||||
| BT 50 MAS BT | |||||||||||
 |
50 10 714 S | Ø 10 | 50 | 20 | 25 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
|
| 100 10 714 S | Ø 10 | 100 | 20 | 30 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
||
| 150 10 714 S | Ø 10 | 150 | 20 | 35 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
||
| 200 10 714 S | Ø 10 | 200 | 20 | 40 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
||
| HSK 25 Form E | |||||||||||
 |
40 10 E25 S | Ø 10 | 40 | 19 | 19 | HSK 25 |
form E | -- | 7.8 | A, B |
|
 KMR-25 A > Page 406 |
 SCHLUESSELHSK25 B > Page 406 |
||||||||||
| HSK 32 Form E | |||||||||||
|

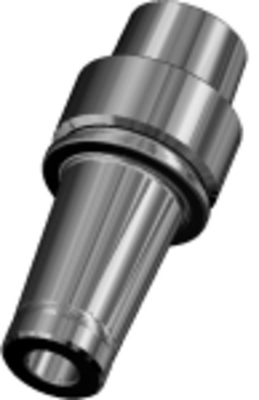

40 10 E32 S | Ø 10 | 40 | 20 | 24 | HSK 32 |
form E | -- | 7.8 | A, B |
|
|
KMR-32 A > Page 406 |
SCHLUESSELHSK32 B > Page 406 |
||||||||||
| Hollow taper shank 40 E | |||||||||||
 |

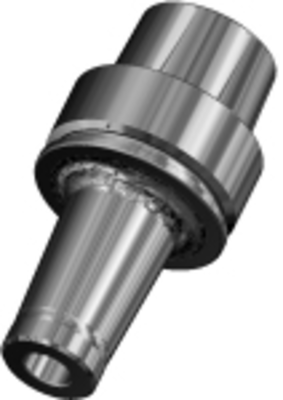

40 10 E40 S | Ø 10 | 40 | 20 | 23.4 | HSK 40 |
form E | -- | 7.8 | A, B |
|
| 70 10 E40 S | Ø 10 | 70 | 20 | 26.5 | HSK 40 |
form E | -- | 7.8 | A, B |
|
|
|
KMR-40A A > Page 406 |
SCHLUESSELHSK40 B > Page 406 |
||||||||||
| Hollow taper shank 40 EC | |||||||||||
 |
40 10 EC 40 S | Ø 10 | 40 | 20 | 24 | HSK 40 |
form C+E | -- | 7.8 | -- |
|
| 70 10 EC 40 S | Ø 10 | 70 | 20 | 26.5 | HSK 40 |
form C+E | -- | 7.8 | -- |
|
|
| 100 10 EC 40 S | Ø 10 | 100 | 20 | 29.6 | HSK 40 |
form C+E | -- | 7.8 | -- |
|
|
| Hollow taper shank 50 E | |||||||||||
 |

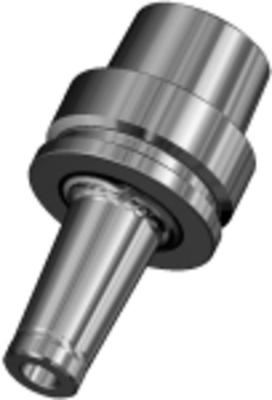

50 10 E50 S | Ø 10 | 50 | 20 | 24.4 | HSK 50 |
form E | -- | 7.8 | A, B |
|
| 100 10 E50 S | Ø 10 | 100 | 20 | 30 | HSK 50 |
form E | -- | 7.8 | A, B |
|
|
|
KMR-50A A > Page 406 |
SCHLUESSELHSK50 B > Page 406 |
||||||||||
| Hollow taper shank 63 A | |||||||||||
 |
50 10 A63 S | Ø 10 | 50 | 20 | 24.4 | HSK 63 |
form A | -- | 7.8 | A, B |
|
| 75 10 A63 S | Ø 10 | 75 | 20 | 27 | HSK 63 |
form A | -- | 7.8 | A, B |
|
|
| 100 10 A63 S | Ø 10 | 100 | 20 | 30 | HSK 63 |
form A | -- | 7.8 | A, B |
|
|
| 100 10 A63 SB | Ø 10 | 100 | 24 | 38.5 | HSK 63 |
form E | -- | 7.8 | A, B |
|
|
| 150 10 A63 S | Ø 10 | 150 | 20 | 35 | HSK 63 |
form A | -- | 7.8 | A, B |
|
|
| 200 10 A63 S | Ø 10 | 200 | 20 | 40.1 | HSK 63 |
form E | -- | 7.8 | A, B |
|
|
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||
| Hollow taper shank 63 A | reinforced version | |||||||||||
 |
50 10 A63 SB | Ø 10 | 50 | 24 | 30.6 | HSK 63 |
form A | -- | 7.8 | A, B |
|
| 100 10 A63 SB | Ø 10 | 100 | 24 | 38.5 | HSK 63 |
form A | -- | 7.8 | A, B |
|
|
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||
| Hollow taper shank 63 F | |||||||||||
 |

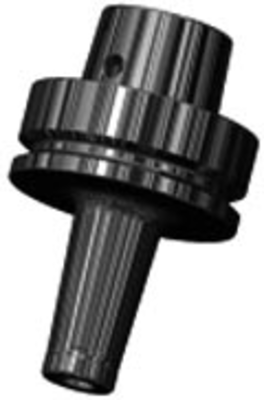

50 10 F63 S | Ø 10 | 50 | 20 | 25 | HSK 63 |
form F | -- | 7.8 |
|
|
| Hollow taper shank 100 A | |||||||||||
|
100 10 A100 S | Ø 10 | 100 | 20 | 29.7 | HSK 100 |
form A | -- | 7.8 | A, B |
|
| 150 10 A100 S | Ø 10 | 150 | 20 | 35 | HSK 100 |
form A | -- | 7.8 | A, B |
|
|
|
KMR-100A A > Page 406 |
SCHLUESSELHSK100 B > Page 406 |
||||||||||
| Morse taper shank adapters | |||||||||||
 |
50 10 MK3 S | Ø 10 | 50 | 20 | 24 | MTS 3 |
-- | -- | 7.8 | 336-339 |
|
| 100 10 MK3 S | Ø 10 | 100 | 20 | 24 | MTS 3 |
-- | -- | 7.8 | 336-339 |
|
|
| 150 10 MK3 S | Ø 10 | 150 | 20 | 32 | MTS 4 |
-- | -- | 7.8 | 336-339 |
|
|
| 200 10 MK5 S | Ø 10 | 200 | 20 | 44.2 | MTS 5 |
-- | -- | 7.8 | 336-339 |
|
|
| DuoPlug® | |||||||||||
 |
50 10 16 SG | Ø 10 | 50 | 20 | 23.5 | M 12 | -- | -- | -- | 310-311 |
|
| for threaded shanks | |||||||||||
 |
60 10 10 784 S | Ø 10 | 60 | 18 | 18 | M 10 | -- | -- | 7.8 |
|
|
| 60 10 12 784 S | Ø 10 | 60 | 20 | 21 | M 12 | -- | -- | 7.8 |
|
||
| 60 10 16 784 S | Ø 10 | 60 | 20 | 29 | M 16 | -- | -- | 7.8 |
|
||
