FOR SHRINKING PROCESSES |
|
for Ø 32 |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - SK and BT arbors with coolant supply through collar on request - other dimensions on request Please note: Zero-reach arbors cannot be ordered separately. We only supply in a shrink-grip connection with a solid carbide or dense antivibration adapter. (Please indicate desired adapter on purchase-order form.) |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| Int.taper 50 DIN 69 871 AD | |||||||||||
 |
60 32 710 S | Ø 32 | 60 | 44 | 53 | SK 50 | DIN 69871 AD |
-- | -- | A, B |
 |
 KBSK50-69872A A > Page 406 |
 KBSK50-69872B B > Page 406 |
||||||||||
| SK 50 DIN 69 871 AD | Nulllänge | |||||||||||
 |
00 32 710 S | Ø 32 | -- | -- | -- | -- | DIN 69871 AD |
-- | -- |
 |
|
| BT 50 MAS BT | |||||||||||
 |
60 32 714 S | Ø 32 | 60 | 44 | 53 | BT 50 | JIS B 6339 AD |
-- | -- |
|
|
| BT 50 MAS BT | Nulllänge | |||||||||||
 |
00 32 714 S | Ø 32 | -- | -- | -- | -- | JIS B 6339 AD |
-- | -- |
|
|

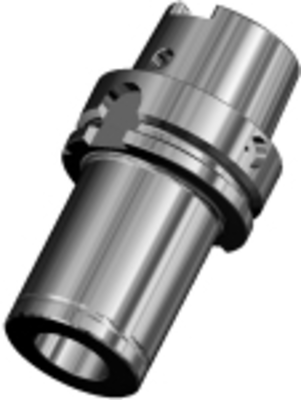

| HSK 63 Form A | |||||||||||
 |
60 32 A63 S | Ø 32 | 60 | 44 | 53 | HSK 63 |
form A | -- | -- | A, B |
|
| HSK 100 Form A | |||||||||||
|
70 32 A100 S | Ø 32 | 70 | 44 | 53 | HSK 100 |
form A | -- | 7.8 | A, B |
|
 KMR-100A A > Page 406 |
 SCHLUESSELHSK100 B > Page 406 |
||||||||||
