FOR SHRINKING PROCESSES |
|
for Ø 25 |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - SK and BT arbors with coolant supply through collar on request - other dimensions on request Please note: Zero-reach arbors cannot be ordered separately. We only supply in a shrink-grip connection with a solid carbide or dense antivibration adapter. (Please indicate desired adapter on purchase-order form.) |
| Arbor and Adapter Systems |

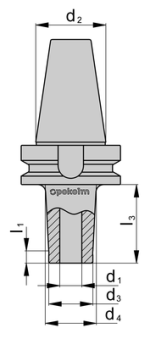

catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| Int.taper 40 DIN 69 871 AD | |||||||||||
 |
60 25 750 S | Ø 25 | 60 | 46 | 46 | SK 40 | DIN 69871 AD |
-- | - | A, B |
 |
 KBSK40-69872A A > Page 406 |
 KBSK40-69872B B > Page 406 |
||||||||||
| Int.taper 40 DIN 69 871 AD|with zero reach | |||||||||||
 |
00 25 750 S | Ø 25 | 10 | 44 | 44 | SK 40 | DIN 69871 AD |
-- | -- | A, B |
 |
|
KBSK40-69872A A > Page 406 |
KBSK40-69872B B > Page 406 |
||||||||||
| BT 40 MAS BT | |||||||||||
 |
60 25 754 S | Ø 25 | 60 | 46 | 46 | BT 40 | JIS B 6339 AD |
-- | -- |
|
|
| BT 40 MAS BT | with zero reach | |||||||||||
 |
00 25 754 S | Ø 25 | 10 | 46 | 46 | BT 40 | JIS B 6339 AD |
-- | -- |
|
|
| Int.taper 50 DIN 69 871 AD | |||||||||||
|

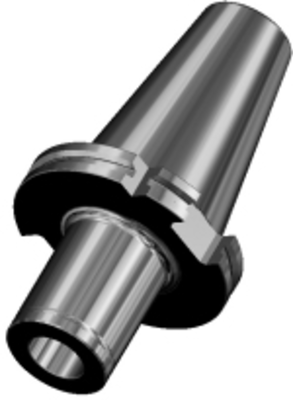

60 25 710 S | Ø 25 | 60 | 46 | 46 | SK 50 | DIN 69871 AD |
-- | -- | A, B |
|
| 100 25 710 S | Ø 25 | 100 | 46 | 56 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
|
KBSK50-69872A A > Page 406 |
KBSK50-69872B B > Page 406 |
||||||||||
| Int.taper 50 DIN 69 871 AD|with zero reach | |||||||||||
 |
00 25 710 S | Ø 25 | 0 | -- | -- | SK 50 | JIS B 6339 AD |
-- | -- |
|
|
| BT 50 MAS BT | |||||||||||
 |
60 25 714 S | Ø 25 | 60 | 46 | 46 | BT 50 | JIS B 6339 AD |
-- | -- |
|
|
| 100 25 714 S | Ø 25 | 100 | 46 | 56 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
||
| BT 50 MAS BT | with zero reach | |||||||||||
|
00 25 714 S | Ø 25 | 0 | -- | -- | BT 50 | JIS B 6339 AD |
-- | -- |
|
|
| Hollow taper shank 63 A | |||||||||||
 |
60 25 A63 S | Ø 25 | 60 | 46 | 46 | HSK 63 |
form A | -- | 7.8 | A, B |
|
 KMR-50A A > Page 406 |
 SCHLUESSELHSK50 B > Page 406 |
||||||||||
| Hollow taper shank 100 A | |||||||||||
|
60 25 A100 S | Ø 25 | 60 | 45 | 45 | HSK 100 |
form A | -- | 7.8 | A, B |
|
|
KMR-100A A > Page 406 |
SCHLUESSELHSK100 B > Page 406 |
||||||||||
