FOR SHRINKING PROCESSES |
|
for Ø 36 |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - SK and BT arbors with coolant supply through collar on request - other dimensions on request Please note: Zero-reach arbors cannot be ordered separately. We only supply in a shrink-grip connection with a solid carbide or dense antivibration adapter. (Please indicate desired adapter on purchase-order form.) |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| Int.taper 50 DIN 69 871 AD | |||||||||||
 |

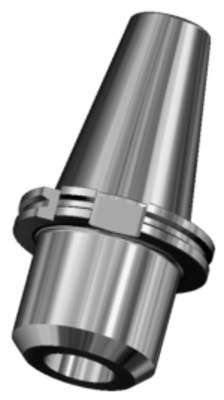

60 36 710 S | Ø 36 | 60 | 72 | 72 | SK 50 | DIN 69871 AD |
-- | -- | A, B |
 |
 KBSK50-69872A A > Page 406 |
 KBSK50-69872B B > Page 406 |
||||||||||
| Int.taper 50 DIN 69 871 AD|with zero reach | |||||||||||
 |
00 36 710 S | Ø 36 | 10 | 50 | 50 | SK 50 | JIS B 6339 AD |
-- | -- |
 |
|
|
KBSK50-69872A A > Page 406 |
KBSK50-69872B B > Page 406 |
||||||||||
