FOR SHRINKING PROCESSES |
|
for Ø 3 |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - SK and BT arbors with coolant supply through collar on request - other dimensions on request |

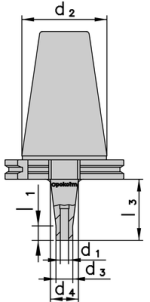

| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |

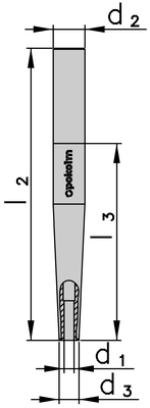

| Plain shank | |||||||||||
 |
112 03 604 S | Ø 3 | 112 | 8 | 16 | Ø 16 | -- | 160 | -- | 375-378 |
 |
| 115 03 604 S | Ø 3 | 115 | 8 | 12 | Ø 12 | -- | 160 | -- | 385 |
|
|

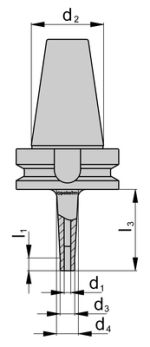

| SK 30 DIN 69 871 AD | |||||||||||
 |
50 03 730 S.01 | Ø 3 | 50 | 9 | 15.7 | SK 30 | DIN 69871 AD |
-- | 7.8 | A, B |
|
 KBSK30-69872A A > Page 406 |
 KBSK30-69872B B > Page 406 |
||||||||||
| BT 30 MAS BT | |||||||||||
 |
50 03 734 S.01 | Ø 3 | 50 | 9 | 15.6 | Ø 30 | JIS B 6339 AD |
-- | 7.8 | 375-378 |
|
| SK 40 DIN 69 871 AD | |||||||||||
|
50 03 750 S.01 | Ø 3 | 50 | 9 | 15.6 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
| 100 03 750 S.01 | Ø 3 | 100 | 9 | 23.5 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
|
KBSK40-69872A A > Page 406 |
KBSK40-69872B B > Page 406 |

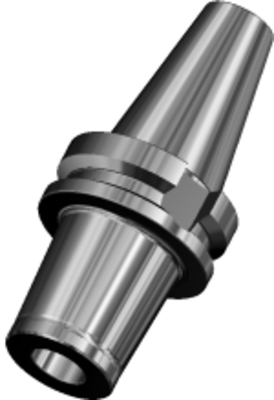

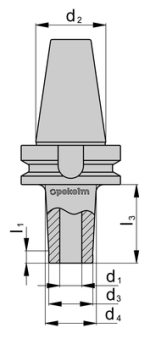

||||||||||
| BT 40 MAS BT | |||||||||||
 |
50 03 754 S.01 | Ø 3 | 50 | 9 | 15.6 | Ø 40 | JIS B 6339 AD |
-- | 7.8 | 375-378 |
|
| 100 03 754 S.01 | Ø 3 | 100 | 9 | 23.5 | Ø 40 | JIS B 6339 AD |
-- | 7.8 | 375-378 |
|
|

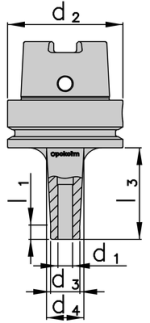

| HSK 25 Form E | |||||||||||
 |
40 03 E25 S.01 | Ø 3 | 40 | 9 | 14 | HSK 25 |
form E | -- | 7.8 | A, B |
|
 KMR-25 A > Page 406 |
 SCHLUESSELHSK25 B > Page 406 |
||||||||||
| Hollow taper shank 32 E | |||||||||||
|
40 03 E32 S.01 | Ø 3 | 40 | 9 | 12.4 | HSK 32 |
form E | -- | 7.8 | A, B |
|
|
KMR-32 A > Page 406 |
SCHLUESSELHSK32 B > Page 406 |
||||||||||
| Hollow taper shank 40 E | |||||||||||
|

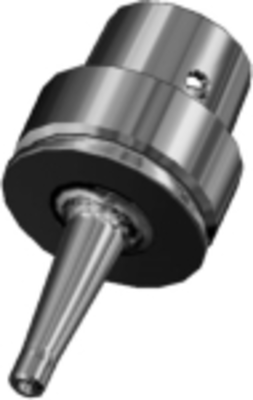

40 03 E40 S.01 | Ø 3 | 40 | 9 | 14 | HSK 40 |
form E | -- | 7.8 | A, B |
|
| 70 03 E40 S.01 | Ø 3 | 70 | 9 | 18.79 | HSK 40 |
form E | -- | 7.8 | A, B |
|
|
|
KMR-40A A > Page 406 |
SCHLUESSELHSK40 B > Page 406 |
||||||||||
| Hollow taper shank 40 EC | |||||||||||
 |
40 03 EC 40 S.01 | Ø 3 | 40 | 9 | 14.07 | HSK 40 |
form C+E | -- | 7.8 | -- |
|
| 70 03 EC 40 S.01 | Ø 3 | 70 | 9 | 18.79 | HSK 40 |
form C+E | -- | 7.8 | -- |
|
|
| Hollow taper shank 50 E | |||||||||||
 |

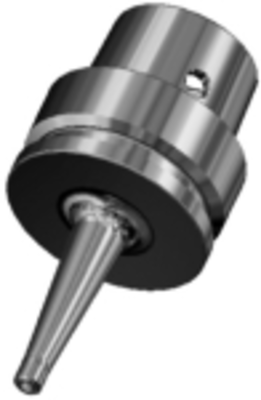

50 03 E50 S.01 | Ø 3 | 50 | 9 | 15.6 | HSK 50 |
form E | -- | 7.8 | A, B |
|
| 100 03 E50 S.01 | Ø 3 | 100 | 9 | 23.51 | HSK 50 |
form E | -- | 7.8 | A, B |
|
|
|
KMR-50A A > Page 406 |
SCHLUESSELHSK50 B > Page 406 |
||||||||||
| Hollow taper shank 63 A | |||||||||||
 |
50 03 A63 S.01 | Ø 3 | 50 | 9 | 15.6 | HSK 63 |
form A | -- | 7.8 | A, B |
|
| 100 03 A63 S.01 | Ø 3 | 100 | 9 | 23.5 | HSK 63 |
form E | -- | 7.8 | A, B |
|
|
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||

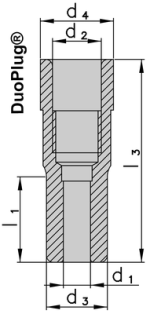

| DuoPlug® | |||||||||||
 |
30 03 07 SG | Ø 3 | 30 | 7 | 10.8 | M 7 | -- | -- | 10.4 | 310-311 |
|
| 35 03 10 SG | Ø 3 | 35 | 7 | 15 | M 10 | -- | -- | -- | 310-311 |
|
|
