FOR SHRINKING PROCESSES |
|
for Ø 16 |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - SK and BT arbors with coolant supply through collar on request - other dimensions on request Please note: Zero-reach arbors cannot be ordered separately. We only supply in a shrink-grip connection with a solid carbide or dense antivibration adapter. (Please indicate desired adapter on purchase-order form.) |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| SK 30 DIN 69 871 AD | |||||||||||
 |
50 16 730 S | Ø 16 | 50 | 32 | 36.4 | SK 30 | DIN 69871 AD |
-- | 7.8 | A, B |
 |
 KBSK30-69872A A > Page 406 |
 KBSK30-69872B B > Page 406 |
||||||||||
| SK 30 DIN 69 871 AD | with zero reach | |||||||||||
 |
15 16 730 S | Ø 16 | 15 | 32 | 32 | SK 30 | DIN 69871 AD |
-- | 7.8 | A, B |
 |
|
KBSK30-69872A A > Page 406 |
KBSK30-69872B B > Page 406 |
||||||||||
| BT 30 MAS BT | |||||||||||
 |
50 16 734 S | Ø 16 | 50 | 32 | 36.4 | Ø 30 | JIS B 6339 AD |
-- | 7.8 | 375-378 |
|
| BT 30 MAS BT | with zero reach | |||||||||||
 |
10 16 734 S | Ø 16 | 10 | 32 | 32 | Ø 30 | JIS B 6339 AD |
-- | -- | 375-378 |
|
| Int. taper 40 DIN 69 871 AD | |||||||||||
|
50 16 750 S | Ø 16 | 50 | 32 | 36.4 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
| 75 16 750 S | Ø 16 | 75 | 32 | 39 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
| 100 16 750 S | Ø 16 | 100 | 32 | 41.7 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
|
KBSK40-69872A A > Page 406 |
KBSK40-69872B B > Page 406 |
||||||||||
| Int.taper 40 DIN 69 871 AD|with zero reach | |||||||||||
 |
00 16 750 S | Ø 16 | 0 | -- | -- | SK 40 | DIN 69871 AD |
-- | -- | A, B |
|
|
KBSK40-69872A A > Page 406 |
KBSK40-69872B B > Page 406 |
||||||||||
| Int.taper 40 MAS BT | |||||||||||
|

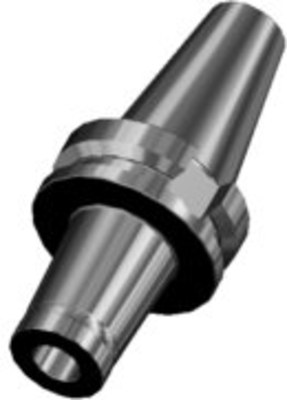

50 16 754 S | Ø 16 | 50 | 32 | 36.4 | BT 40 | JIS B 6339 AD |
-- | 7.8 |
|
|
| 100 16 754 S | Ø 16 | 100 | 32 | 41.7 | BT 40 | JIS B 6339 AD |
-- | 7.8 |
|
||
| Int.taper 40 MAS BT | with zero reach | |||||||||||
|
00 16 754 S | Ø 16 | 0 | -- | -- | BT 40 | JIS B 6339 AD |
-- | -- |
|
|
| Int.taper 50 DIN 69 871 AD | |||||||||||
 |
50 16 710 S | Ø 16 | 50 | 32 | 36.4 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
| 100 16 710 S | Ø 16 | 100 | 32 | 41.7 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
| 150 16 710 S | Ø 16 | 150 | 32 | 46.9 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
| 200 16 710 S | Ø 16 | 200 | 32 | 52 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B |
|
|
|
KBSK50-69872A A > Page 406 |
KBSK50-69872B B > Page 406 |
||||||||||
| BT 50 MAS BT | |||||||||||
|
50 16 714 S | Ø 16 | 50 | 32 | 36.4 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
|
| 100 16 714 S | Ø 16 | 100 | 32 | 41.7 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
||
| 150 16 714 S | Ø 16 | 150 | 32 | 46.9 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
||
| 200 16 714 S | Ø 16 | 200 | 32 | 52 | BT 50 | JIS B 6339 AD |
-- | 7.8 |
|
||
| Hollow taper shank 40 E | |||||||||||
 |

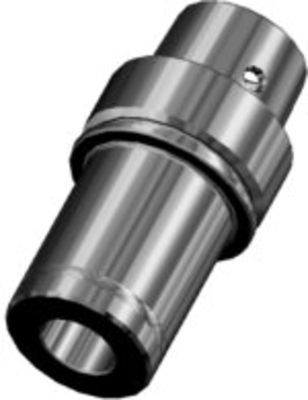

40 16 E40 S | Ø 16 | 40 | 32 | 32 | HSK 40 |
form E | -- | 7.8 | A, B |
|
 KMR-40A A > Page 406 |
 SCHLUESSELHSK40 B > Page 406 |
||||||||||
| Hollow taper shank 40 EC | |||||||||||
 |
40 16 EC 40 S | Ø 16 | 40 | 32 | 32 | HSK 40 |
form C+E | -- | 7.8 | -- |
|
| Hollow taper shank 50 E | |||||||||||
 |

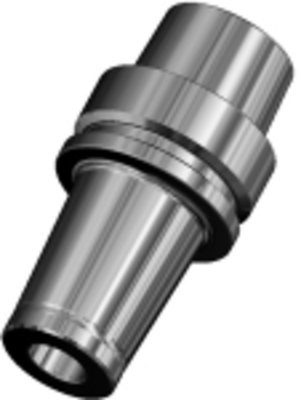

50 16 E50 S | Ø 16 | 50 | 32 | 36.4 | HSK 50 |
form E | -- | 7.8 | A, B |
|
| 100 16 E50 S | Ø 16 | 100 | 32 | 40 | HSK 50 |
form E | -- | 7.8 | A, B |
|
|
|
KMR-50A A > Page 406 |
SCHLUESSELHSK50 B > Page 406 |
||||||||||
| Hollow taper shank 63 A | |||||||||||
 |
50 16 A63 S | Ø 16 | 50 | 32 | 36.4 | HSK 63 |
form A | -- | 7.8 | A, B |
|
| 75 16 A63 S | Ø 16 | 75 | 32 | 39 | HSK 63 |
form A | -- | 7.8 | A, B |
|
|
| 100 16 A63 S | Ø 16 | 100 | 32 | 41.7 | HSK 63 |
form A | -- | 7.8 | A, B |
|
|
| 150 16 A63 S | Ø 16 | 150 | 32 | 46.9 | HSK 63 |
form E | -- | 7.8 | A, B |
|
|
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||
| Hollow taper shank 63 F | |||||||||||
 |
50 16 F63 S | Ø 16 | 50 | 32 | 36.4 | HSK 63 |
form F | -- | 7.8 |
|
|
| 100 16 F63 S | Ø 16 | 150 | 32 | 42 | HSK 63 |
form F | -- | 7.8 |
|
||
| Hollow taper shank 100 A | |||||||||||
|
60 16 A100 S | Ø 16 | 60 | 32 | 37.5 | HSK 100 |
form A | -- | 7.8 | A, B |
|
| 100 16 A100 S | Ø 16 | 100 | 32 | 41.7 | HSK 100 |
form A | -- | 7.8 | A, B |
|
|
| 150 16 A100 S | Ø 16 | 150 | 32 | 46.9 | HSK 100 |
form A | -- | 7.8 | A, B |
|
|
|
KMR-100A A > Page 406 |
SCHLUESSELHSK100 B > Page 406 |
||||||||||
| Morse taper shank adapters | |||||||||||
 |
150 16 MK4 S | Ø 16 | 150 | 32 | 32 | MTS 4 |
-- | -- | 7.8 | 336-339 |
|
| 200 16 MK5 S | Ø 16 | 200 | 32 | 44.2 | MTS 3 |
-- | -- | -- | 336-339 |
|
|
