Прорезка и точение канавок

1 2 3 4 5 6 7 8 Возврат

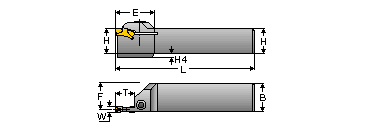

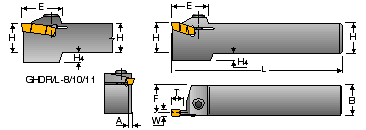

GHDR/L

GHDR/L Резцы для наружной обработки
W	T	Обозначение	HxB	L	F	A	E	H4	Винт	Ключ	Пластины
2.8-4	8	GHDR/L 12-3	12x12	110	10.0	2.4	25	4	SR 76-1022	T-20/5	GIP, GIF, GIPA, GIPY, GITM, GIM, GIMF, GIMY, GPV
2.8-4	9	GHDR/L 16-3	16x16	110	14.8	2.4	26	4	SR M5x20	HW 4
2.8-4	9	GHDR/L 16-3ST(1)	16x16.1	78	15.0	2.2	26	4	SR M5x20	HW 4
2.8-4	9	GHDR/L 20-3	20x20	120	18.8	2.4	26	-	SR M5x20	HW 4
2.8-4	9	GHDR/L 25-3	25x25	135	23.8	2.4	26	-	SR M5x20	HW 4
4-5	10	GHDR/L 16-4	16x16	110	14.4	3.2	26	4	SR M6x20	HW 5
4-5.4	10	GHDR/L 16-4ST(1)	16x15.7	78	14.0	3.4	25	4	SR M6x20	HW 5
4-5	10	GHDR/L 20-4	20x20	120	18.4	3.2	26	-	SR M6x20	HW 5
4-5	10	GHDR/L 25-4	25x25	135	23.4	3.2	27	-	SR M6x25	HW 5
4-5	10	GHDR/L 32-4	32x32	150	30.4	3.2	27	-	SR M6x25	HW 5
5-6.4	12	GHDR/L 20-5	20x20	120	17.9	4.2	29	-	SR M6x20	HW 5
5-6.4	12	GHDR/L 25-5	25x25	135	22.9	4.2	29	-	SR M6x25	HW 5
5-6.4	12	GHDR/L 32-5	32x32	150	29.9	4.2	29	-	SR M6x25	HW 5
6.6-8.3	25	GHDR/L 25-8	25x25	150	22.0	6	40	7.6	SR M6x25	HW 5	GIF 8, GIPA/GIDA 8, GDMY 8... GDMF, GDMU
6.6-8.3	25	GHDR/L 25-8	32x32	170	29.0	6	40	-	SR M6x25	HW 5
6.6-8.3	12	GHDR/L 25-812	25x25	140	22.0	5.9	33	-	SR M6x25	HW 5
6.6-8.3	12	GHDR/L 32-812	32x32	160	29.0	5.9	33	-	SR M6x25	HW 5
6.6-8.3	36	GHDR/L 25-836	32x32	170	28.9	6.3	56	8	SR M8x30	HW 6
8	25	GHDR/L 25-8А	25x25	150	22.0	6	40	7.6	SR M6x25	HW 5	GIDA 80-40
8	25	GHDR/L 32-8А	32x32	170	29.0	6	40	-	SR M6x25	HW 5
7.2-10	16.5	GHDR/L 25-P8	25x25	150	21.8	6.5	35.7	-	SR M8x25	HW 6	GIMY/GYMF, 8.../10...GPV
7.2-10	16.5	GHDR/L 32-P8	32x32	170	28.8	6.5	35.7	-	SR M8x25	HW 6
8.6-11.1	25	GHDR/L 25-10	25x25	150	21.3	7.4	43	7.6	SR M8x30	HW 6	GIF 10, GDPY10/11, GDPU10/11
8.6-11.1	25	GHDR/L 32-10	32x32	170	28.3	7.4	43	-	SR M8x30	HW 6
8.6-11.1	25	GHDR/L 40-10	40x40	200	36.3	7.4	43	-	SR M8x30	HW 6

(1) GHDR/L-ST - для многошпиндельных станков и станков STAR

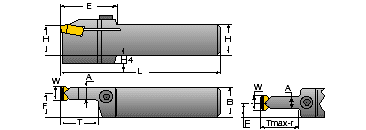

GHDR/L/N...12/14...

GHDR/L/N...12/14... Резцы для наружной обработки
W	T	Обозначение	HxB	L	F	A	E	H4	Винт	Пластины
12	30	GHDR/L 32-12	32x32	170	27.3	9.5	50	-	SR M8x30	GIMY 1260, GPV TIGER 1453-152
13-17.4	12	GHDR/L 2525 14T12	25x25	140	19	12	41		SR M8x25	TIGER 14/16/17 GPV 14/17
13-17.4	12	GHDR/L 3232 14T12	32x32	170	26	12	41		SR M8x30
13-17.4	38	GHDR/L 3232 14T38	32x32	170	26	12	59	8	SR M8x30	TIGER 1453-152 TIGER 16.63-1.52 TIGER 1740-200 GPV
	38	GHDN 3232 14T38	32x32	170	16	12	57.5	8	SR M8x30
	38	GHDR/L 4040 14T38	40x40	170	34	12	59	-	SR M8x30
	38	GHDN 4040 14T38	40x40	170	20	12	57.5	-	SR M8x30
	45	GHDN 4040 14T45	40x40	170	20	12	55.5	-	SR 76-1285(1)

Ключ: HW 6. (1) Ключ: HW 5.

THDR/L/N...20...

THDR/L/N...20... Резцы для наружной обработки
W	T	Обозначение	HxB	L	F	A	H4	Винт	Ключ	Пластины
20.06	38	THDR/L 3232-20T38	32x32	170	23.3	17.5	8	SR 14-519	T-20/61	TIGER 2006-152
	38	THDN 3232-20T38	32x32	170	16.0	17.5	8
20.06	45	THDR/L 4040-20T45	40x40	170	31.3	17.5	-
	45	THDN 4040-20T45	40x40	170	20.0	17.5	-

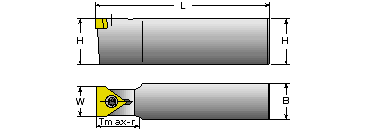

SXCNN

SXCNN Резцы для наружной обработки
W	T	Обозначение	H	B	L	Torx ключ	Ключ	Пластины
13.0	20.0	SXCNN 1212 K13-05	12	12	125	SR 76-2068	T-20/5	XNUW 1305-05
13.0	23.0	SXCNN 1414 K13-05	14	14	125	SR 76-2068
13.0	23.0	SXCNN 1616 K13-05	16	16	125	SR 14-591
13.0	23.0	SXCNN 2020 P13-05	20	20	170	SR 14-591
13.0	23.0	SXCNN 2525 P13-05	25	25	170	SR 14-591
14.5	-	SXCNN 1212 K14-03	12	12	125	SR 76-2067	T-15/5	XNUW 14T3-03
14.5	18.0	SXCNN 1616 K14-03	16	16	125
14.5	18.0	SXCNN 2020 P14-03	20	20	170
14.5	18.0	SXCNN 2525 P14-03	25	25	170
20.5	-	SXCNN 1616 K20-05	16	16	125	SR 14-591	T-20/5	XNUW 2006-05
20.5	24.0	SXCNN 2020 P20-05	20	20	170
20.5	24.0	SXCNN 2525 P20-05	25	25	170
20.5	24.0	SXCNN 3232 P20-05	32	32	170
24.5	28.0	SXCNN 2525 P24-05	25	25	170	SR 14-591	T-20/5	XNUW 2406-05
24.5		SXCNN 3232 P24-05	32	32
36.5	-	SXCNN 3232 P36-10	32	32	170	SR 14-591	T-20/5	XNUW 3606-10

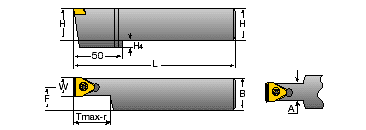

TGDR/L

TGDR/L Резцы для наружной обработки
W	Tmax	Обозначение	HxB	L	F	E	H4	Винт	Пластины	Hex ключ
3	7.5	TGDR/L 1616-3M	16x16	100	14.75	30.5	6	SR M5x16	TGMF 3..	HW 4
3		TGDR/L 2020-3M	20x20	125	18.75	30.5	-	SR M5x20
3		TGDR/L 2525-3M	25x25	140	23.75	30.5	-	SR M5x20
4-5	9.0	TGDR/L 1616-4M	16x16	100	14.25	32.2	6	SR M5x20	TGMF/P 4/5	HW 4
4-5	9.0	TGDR/L 2020-4M	20x20	125	18.25	32.2	6
4-5	15.5	TGDR/L 2525-4M	25x25	140	23.75	34	-
5	18	TGDR/L 2525-5M	25x25	140	22.75	37	-	SR M5x25	TGMF/P 5..	HW 4
5	22	TGDR/L 3232-5M	32x32	150	29.75	45	-	SR M6x25		HW 5
6-6.35	22	TGDR/L 2525-6M	25x25	150	22.5	43	-	SR M6x25	TGMF 6..	HW 4
		TGDR/L 3232-6M	32x32	150	29.5	43	-			HW 5

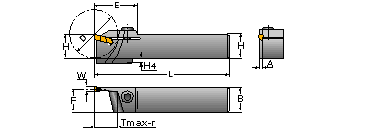

GHGR/L

GHGR/L Резцы для глубокой наружной обработки
W	Tmax	Обозначение	HxB	L	F	A	E	H4	Винт	Ключ	Пластины
2.2-2.4	34	GHGR/L 20-2	20x20	120	19.2	1.7	33	-	SR M5x20	HW 4	GIP, GIMP GIG, GIM
		GHGR/L 25-2	25x25	140	24.2	1.7	33	-
3-4	40	GHGR/L 16-3	16x16	110	14.7	2.5	36	4	SR M6x20	HW 5	GIP, GIF GIPA, GIPY GITM, GIM GPV, GIMF GIMY
	34	GHGR/L 16-3ST(1)	16x16	78	15.0	2.4	33	-	SR M6x20
	40	GHGR/L 20-3	20x20	120	18.7	2.5	36	-	SR M6x20
	40	GHGR/L 25-3	25x25	140	23.7	2.5	36	-	SR M6x25
4-5	40	GHGR/L 16-4	16x16	110	14.4	3.2	36	4	SR M6x20
	40	GHGR/L 20-4	20x20	120	18.2	3.5	36	-	SR M6x20
	40	GHGR/L 25-4	25x25	140	23.2	3.5	36	-	SR M6x25
	50	GHGR/L 25-425	25x25	140	23.2	3.5	41	-	SR M6x25
5-6.4	50	GHGR/L 25-5	25x25	140	22.9	4.2	41	-	SR M6x25
	50	GHGR/L 32-5	32x32	150	29.9	4.2	41	-	SR M6x25
6-8	60	GHGR/L 25-630	25x25	140	22.3	5.4	45	-	SR M6x25
	64	GHGR/L 32-632	32x32	170	29.4	5.4	50	-	SR M6x25
