FOR THREADED SHANK END MILL BODIES |
|
M 8 |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - arbors for left-hand cutting on request - SK and BT arbors with coolant supply through collar on request - other dimensions on request |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |

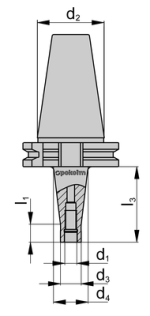

| Int. taper 40 DIN 69 871 AD | tapered | |||||||||||
 |
25 08 750 | M 8 | 25 | 13.8 | 15 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
 |
| 50 08 750 | M 8 | 50 | 13.8 | 23 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 75 08 750 | M 8 | 75 | 13.8 | 25 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 100 08 750 | M 8 | 100 | 13.8 | 30 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
 KBSK40-69872A A > Page 406 |
 KBSK40-69872B B > Page 406 |
||||||||||

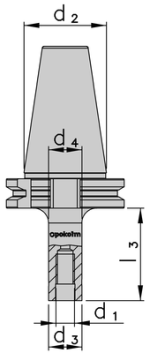

| Int. taper 40 DIN 69 871 AD | cylindrical | |||||||||||
 |
50 08 750 ZYL | M 8 | 50 | 13.8 | 13.8 | SK 40 | DIN 69871 AD |
-- | -- | A, B |
|
|
KBSK40-69872A A > Page 406 |
KBSK40-69872B B > Page 406 |
||||||||||

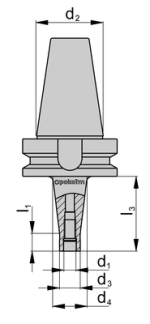

| Int. taper 40 MAS BT | |||||||||||
 |
25 08 754 | M 8 | 25 | 13.8 | 15 | BT 40 | JIS B 6339 AD |
-- | 12 |
|
|
| 50 08 754 | M 8 | 50 | 13.8 | 23 | BT 40 | JIS B 6339 AD |
-- | 12 |
|
||
| 75 08 754 | M 8 | 75 | 13.8 | 25 | BT 40 | JIS B 6339 AD |
-- | 12 |
|
||

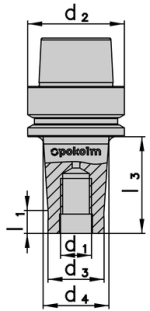

| Hollow taper shank 40 E | |||||||||||
 |
25 08 E40 | M 8 | 25 | 13.8 | 15 | HSK 40 |
form E | -- | 12 | A, B |
|
| 50 08 E40 | M 8 | 50 | 13.8 | 23 | HSK 40 |
form E | -- | 12 | A, B |
|
|
| 75 08 E40 | M 8 | 75 | 13.8 | 25 | HSK 40 |
form E | -- | 12 | A, B |
|
|
 KMR-40A A > Page 406 |
 SCHLUESSELHSK40 B > Page 406 |
||||||||||

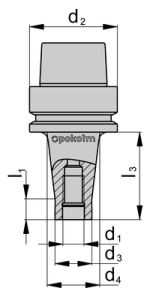

| Hollow taper shank 50 E | |||||||||||
 |
25 08 E50 | M 8 | 25 | 13.8 | 15 | HSK 50 |
form E | -- | 12 | A, B |
|
| 50 08 E50 | M 8 | 50 | 13.8 | 23 | HSK 50 |
form E | -- | 12 | A, B |
|
|
| 75 08 E50 | M 8 | 75 | 13.8 | 25 | HSK 50 |
form E | -- | 12 | A, B |
|
|
| 100 08 E50 | M 8 | 100 | 13.8 | 30 | HSK 50 |
form E | -- | 12 | A, B |
|
|
|
KMR-50A A > Page 406 |
SCHLUESSELHSK50 B > Page 406 |
||||||||||
| Hollow taper shank 63 A | |||||||||||
 |
25 08 A63 | M 8 | 25 | 13.8 | 15 | HSK 63 |
form A | -- | 12 | A, B |
|
| 50 08 A63 | M 8 | 50 | 13.8 | 23 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 75 08 A63 | M 8 | 75 | 13.8 | 25 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 100 08 A63 | M 8 | 100 | 13.8 | 30 | HSK 63 |
form A | -- | 12 | A, B |
|
|
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||
| Hollow taper shank 63 A | cylindrical | |||||||||||
 |
50 08 A63 ZYL | M 8 | 50 | 13.8 | 13.8 | HSK 63 |
form A | -- | 12 | A, B |
|
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||
| Hollow taper shank 63 F | |||||||||||
 |
25 08 F63 | M 8 | 25 | 13.8 | 15 | HSK 63 |
form F | -- | 12 |
|
|
| 75 08 F63 | M 8 | 75 | 13.8 | 25 | HSK 63 |
form F | -- | 12 |
|
||

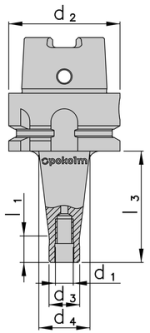

| Hollow taper shank 100 A | |||||||||||
 |
50 08 A100 | M 8 | 50 | 13.8 | 23 | HSK 100 |
form A | -- | 12 | A, B |
|
| 100 08 A100 | M 8 | 100 | 13.8 | 30 | HSK 100 |
form A | -- | 12 | A, B |
|
|
|
KMR-100A A > Page 406 |
SCHLUESSELHSK100 B > Page 406 |
||||||||||
| Morse taper shank adapters | |||||||||||
 |
20 670 | M 8 | 20 | 13.8 | 18 | MTS 2 |
-- | -- | -- | 336-339 |
|
| 40 670 | M 8 | 40 | 13.8 | 18 | MTS 2 |
-- | -- | 8.5 | 336-339 |
|
|
| 60 670 | M 8 | 60 | 13.8 | 18 | MTS 2 |
-- | -- | 8.5 | 336-339 |
|
|
| 80 670 | M 8 | 80 | 13.8 | 24 | MTS 3 |
-- | -- | 8.5 | 336-339 |
|
|
| 100 670 | M 8 | 100 | 13.8 | 24.1 | MTS 3 |
-- | -- | 8.5 | 336-339 |
|
|
| Adapters plain shank + flats | |||||||||||
 |
20 16 600 | M 8 | 20 | 13.8 | 15.8 | Ø 16 | -- | 68 | 7.8 | 375-378 |
|
| 40 16 600 | M 8 | 40 | 13.8 | 15.8 | Ø 16 | -- | 88 | 7.8 | 375-378 |
|
|
| Adapters plain shank | |||||||||||
 |
20 16 600 G | M 8 | 20 | 13.8 | 15.8 | Ø 16 | -- | 68 | 7.8 | 375-378 |
|
| 40 16 600 G | M 8 | 40 | 13.8 | 15.8 | Ø 16 | -- | 88 | 7.8 | 375-378 |
|
|
| Plain shank | dense antivibration material | |||||||||||
 |
40 08 601 | M 8 | 40 | 14.2 | 15.3 | Ø 16 | -- | 88 | 9 | 375-378 | |
| 60 08 601 | M 8 | 60 | 14.2 | 15.3 | Ø 16 | -- | 108 | 9 | 375-378 | ||
| 80 08 601 | M 8 | 80 | 14.2 | 15.3 | Ø 16 | -- | 128 | 9 | 375-378 | ||
| 100 08 601 | M 8 | 100 | 14.2 | 15.3 | Ø 16 | -- | 148 | 9 | 375-378 | ||
| 120 08 601 | M 8 | 120 | 14.2 | 15.3 | Ø 16 | -- | 168 | 9 | 375-378 | ||
| 150 08 601 | M 8 | 150 | 14.2 | 15.3 | Ø 16 | -- | 198 | 9 | 375-378 | ||
| Plain shank | solid carbide | |||||||||||
 |
40 08 606 | M 8 | 40 | 14.2 | 15.3 | Ø 16 | -- | 88 | 9 | 375-378 |
 |
| 60 08 606 | M 8 | 60 | 14.2 | 15.3 | Ø 16 | -- | 108 | 9 | 375-378 |
|
|
| 80 08 606 | M 8 | 80 | 14.2 | 15.3 | Ø 16 | -- | 128 | 9 | 375-378 |
|
|
| 100 08 606 | M 8 | 100 | 14.2 | 15.3 | Ø 16 | -- | 148 | 9 | 375-378 |
|
|
| 120 08 606 | M 8 | 120 | 14.2 | 15.3 | Ø 16 | -- | 168 | 9 | 375-378 |
|
|
| Extension adapters | |||||||||||
 |
08 40 780 | M 8 | 40 | 13.8 | 13.8 | M 8 | -- | -- | -- | 314-318 |
|
| 08 60 780 | M 8 | 60 | 13.8 | 16.8 | M 8 | -- | -- | -- | 314-318 |
|
|
| Reductions | |||||||||||
 |
10 40 781 | M 8 | 40 | 13.8 | 18 | M 10 | -- | -- | 6.5 | 319-323 |
|
| 12 60 781 | M 8 | 60 | 13.8 | 21 | M 12 | -- | -- | 7.8 | 324-329 |
|
|
