FOR THREADED SHANK END MILL BODIES |
|
M 10 |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - arbors for left-hand cutting on request - SK and BT arbors with coolant supply through collar on request - other dimensions on request |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |

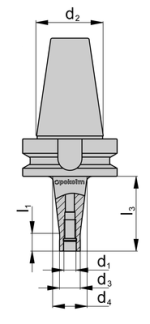

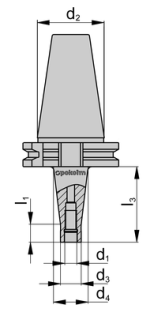

| Int. taper 40 DIN 69 871 AD | tapered | |||||||||||
 |
25 10 750 | M 10 | 25 | 18 | 23 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
 |
| 50 10 750 | M 10 | 50 | 18 | 25 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 75 10 750 | M 10 | 75 | 18 | 30 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 100 10 750 | M 10 | 100 | 18 | 35 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 125 10 750 | M 10 | 125 | 18 | 40 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 150 10 750 | M 10 | 150 | 18 | 45 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
 KBSK40-69872A A > Page 406 |
 KBSK40-69872B B > Page 406 |
||||||||||

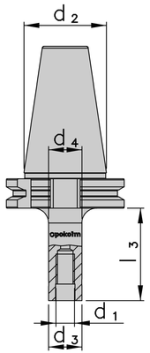

| Int. taper 40 DIN 69 871 AD | cylindrical | |||||||||||
 |
50 10 750 ZYL | M 10 | 50 | 18 | 18 | SK 40 | DIN 69871 AD |
-- | -- | A, B |
|
| 75 10 750 ZYL | M 10 | 75 | 18 | 18 | SK 40 | DIN 69871 AD |
-- | -- | A, B |
|
|
| 100 10 750 ZYL | M 10 | 100 | 18 | 18 | SK 40 | DIN 69871 AD |
-- | -- | A, B |
|
|
|
KBSK40-69872A A > Page 406 |
KBSK40-69872B B > Page 406 |
||||||||||
| Int. taper 40 MAS BT | |||||||||||
 |
25 10 754 | M 10 | 25 | 18 | 23 | BT 40 | JIS B 6339 AD |
-- | 12 |
|
|
| 50 10 754 | M 10 | 50 | 18 | 25 | BT 40 | JIS B 6339 AD |
-- | 12 |
|
||
| 75 10 754 | M 10 | 75 | 18 | 30 | BT 40 | JIS B 6339 AD |
-- | 12 |
|
||
| 100 10 754 | M 10 | 100 | 18 | 35 | BT 40 | JIS B 6339 AD |
-- | 12 |
|
||

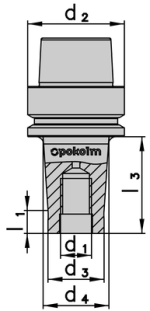

| Hollow taper shank 40 E | |||||||||||
 |
25 10 E40 | M 10 | 25 | 18 | 23 | HSK 40 |
form E | -- | 12 | A, B |
|
| 50 10 E40 | M 10 | 50 | 18 | 25 | HSK 40 |
form E | -- | 12 | A, B |
|
|
| 75 10 E40 | M 10 | 75 | 18 | 30 | HSK 40 |
form E | -- | 12 | A, B |
|
|
 KMR-40A A > Page 406 |
 SCHLUESSELHSK40 B > Page 406 |
||||||||||

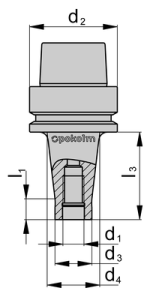

| Hollow taper shank 50 E | |||||||||||
 |
25 10 E50 | M 10 | 25 | 18 | 23 | HSK 50 |
form E | -- | 12 | A, B |
|
| 50 10 E50 | M 10 | 50 | 18 | 25 | HSK 50 |
form E | -- | 12 | A, B |
|
|
| 75 10 E50 | M 10 | 75 | 18 | 30 | HSK 50 |
form E | -- | 12 | A, B |
|
|
| 100 10 E50 | M 10 | 100 | 18 | 35 | HSK 50 |
form E | -- | 12 | A, B |
|
|
|
KMR-50A A > Page 406 |
SCHLUESSELHSK50 B > Page 406 |
||||||||||
| Hollow taper shank 63 A | |||||||||||
 |
25 10 A63 | M 10 | 25 | 18 | 23 | HSK 63 |
form A | -- | 12 | A, B |
|
| 50 10 A63 | M 10 | 50 | 18 | 25 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 75 10 A63 | M 10 | 75 | 18 | 30 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 100 10 A63 | M 10 | 100 | 18 | 35 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 125 10 A63 | M 10 | 125 | 18 | 38 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 150 10 A63 | M 10 | 150 | 18 | 45 | HSK 63 |
form A | -- | 12 | A, B |
|
|
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||

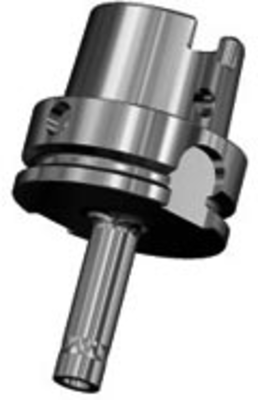

| Hollow taper shank 63 A | cylindrical | |||||||||||
 |
50 10 A63 ZYL | M 10 | 50 | 18 | 18 | HSK 63 |
form A | -- | 12 | A, B |
|
| 100 10 A63 ZYL | M 10 | 100 | 18 | 18 | HSK 63 |
form A | -- | 12 |
|
||
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||

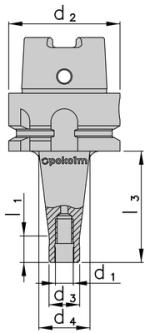

| Hollow taper shank 100 A | |||||||||||
 |
50 10 A100 | M 10 | 50 | 18 | 25 | HSK 100 |
form A | -- | 12 | A, B |
|
| 75 10 A100 | M 10 | 75 | 18 | 30 | HSK 100 |
form A | -- | 12 | A, B |
|
|
| 100 10 A100 | M 10 | 100 | 18 | 35 | HSK 100 |
form A | -- | 12 | A, B |
|
|
| 150 10 A100 | M 10 | 150 | 18 | 45 | HSK 100 |
form A | -- | 12 | A, B |
|
|
|
KMR-100A A > Page 406 |
SCHLUESSELHSK100 B > Page 406 |
||||||||||

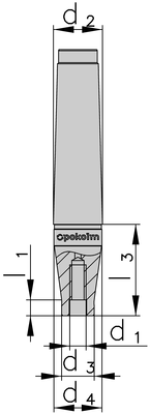

| Morse taper shank adapters | |||||||||||
 |
20 680 | M 10 | 20 | 18 | 18 | MTS 2 |
-- | -- | -- | 336-339 |
|
| 40 680 | M 10 | 40 | 18 | 18 | MTS 2 |
-- | -- | -- | 336-339 |
|
|
| 60 680 | M 10 | 60 | 18 | 18 | MTS 2 |
-- | -- | -- | 336-339 |
|
|
| 80 600 | M 10 | 80 | 18 | 24 | MTS 3 |
-- | -- | 8.5 | 336-339 |
|
|
| 100 680 | M 10 | 100 | 18 | 23.6 | MTS 3 |
-- | -- | 8.5 | 336-339 |
|
|

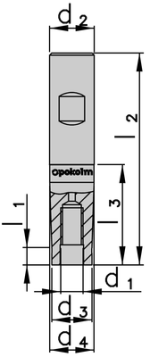

| Adapters plain shank + flats | |||||||||||
 |
20 20 600 | M 10 | 25 | 18 | 19.8 | Ø 20 | -- | 75 | 7.8 | 379-381 |
|
| 40 20 600 | M 10 | 45 | 18 | 19.8 | Ø 20 | -- | 95 | 7.8 | 379-381 |
|
|

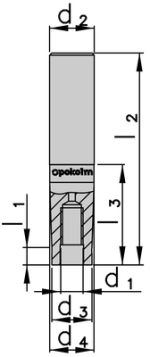

| Adapters plain shank | |||||||||||
 |
25 20 600 G | M 10 | 25 | 18 | 19.8 | Ø 20 | -- | 75 | 7.8 | 379-381 |
|
| 45 20 600 G | M 10 | 45 | 18 | 19.8 | Ø 20 | -- | 95 | 7.8 | 379-381 |
|
|

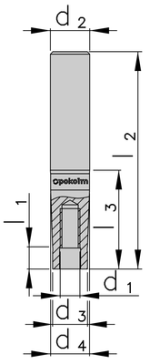

| Plain shank | dense antivibration material | |||||||||||
 |
60 10 601 | M 10 | 60 | 18.5 | 19.3 | Ø 20 | -- | 110 | 9 | 379-381 | |
| 80 10 601 | M 10 | 80 | 18.5 | 19.3 | Ø 20 | -- | 130 | 9 | 379-381 | ||
| 100 10 601 | M 10 | 100 | 18.5 | 19.3 | Ø 20 | -- | 150 | 9 | 379-381 | ||
| 120 10 601 | M 10 | 120 | 18.5 | 19.3 | Ø 20 | -- | 170 | 9 | 379-381 | ||
| 140 10 601 | M 10 | 140 | 18.5 | 19.3 | Ø 20 | -- | 190 | 9 | 379-381 | ||
| Plain shank | solid carbide | |||||||||||
 |
60 10 606 | M 10 | 60 | 18.5 | 19.3 | Ø 20 | -- | 110 | 9 | 379-381 |
 |
| 80 10 606 | M 10 | 80 | 18.5 | 19.3 | Ø 20 | -- | 130 | 9 | 379-381 |
|
|
| 100 10 606 | M 10 | 100 | 18.5 | 19.3 | Ø 20 | -- | 150 | 9 | 379-381 |
|
|
| 120 10 606 | M 10 | 120 | 18.5 | 19.3 | Ø 20 | -- | 170 | 9 | 379-381 |
|
|
| 140 10 606 | M 10 | 140 | 18.5 | 19.3 | Ø 20 | -- | 190 | 9 | 379-381 |
|
|

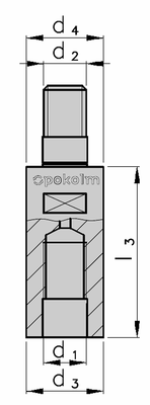

| Extension adapters | |||||||||||
 |
10 40 780 | M 10 | 40 | 18 | 18 | M 10 | -- | -- | -- | 319-323 |
|
| 10 60 780 | M 10 | 60 | 18 | 18 | M 10 | -- | -- | -- | 319-323 |
|
|
| Reductions | |||||||||||
 |

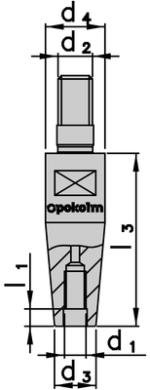

12 40 781 | M 10 | 40 | 18 | 21 | M 12 | -- | -- | 7.8 | 324-329 |
|
| 16 60 781 | M 10 | 60 | 18 | 29 | M 16 | -- | -- | 7.8 | 330-335 |
|
|
| Reduction-adapters shell-tp to thread connect |
|||||||||||
 |
60 22 M10 783 | M 10 | 60 | 18 | 48 | Ø 22 | -- | -- | 12 | 342-344 A |
|
| 100 22 M10 783 | M 10 | 100 | 18 | 48 | Ø 22 | -- | -- | 12 | 342-344 A |
|
|
| 60 27 M10 783 | M 10 | 60 | 18 | 62 | Ø 27 | -- | -- | 12 | 345-347 B |
|
|
| 100 27 M10 783 | M 10 | 100 | 18 | 62 | Ø 27 | -- | -- | 12 | 345-347 B |
|
|
 M6x25 A > Page 402 |
M8x25 B > Page 402 |
||||||||||
