FOR THREADED SHANK END MILL BODIES |
|
M 5 |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - arbors for left-hand cutting on request - SK and BT arbors with coolant supply through collar on request - other dimensions on request |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |

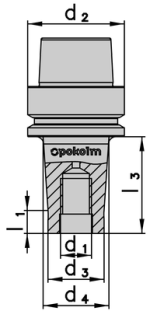

| Hollow taper shank 32 E | |||||||||||
 |
25 05 E32 | M 5 | 25 | 9.5 | 12 | HSK 32 |
form E | -- | 12 | A, B |
 |
| 50 05 E32 | M 5 | 50 | 9.5 | 20 | HSK 32 |
form E | -- | 12 | A, B |
|
|
 KMR-32 A > Page 406 |
 SCHLUESSELHSK32 B > Page 406 |
||||||||||
| Hollow taper shank 40 E | |||||||||||
|
25 05 E40 | M 5 | 25 | 9.5 | 12 | HSK 40 |
form E | -- | 12 | A, B |
|
| 50 05 E40 | M 5 | 50 | 9.5 | 20 | HSK 40 |
form E | -- | 12 | A, B |
|
|
|
KMR-40A A > Page 406 |
SCHLUESSELHSK40 B > Page 406 |
||||||||||

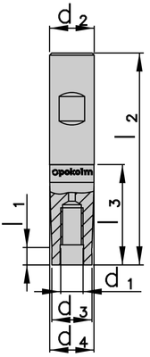

| Adapters plain shank + flats | |||||||||||
 |
10 12 600 | M 5 | 10 | 9.5 | 11.8 | Ø 12 | -- | 55 | -- | 385 |
|
| 20 12 600 | M 5 | 20 | 9.5 | 11.5 | Ø 12 | -- | 65 | -- | 385 |
|
|

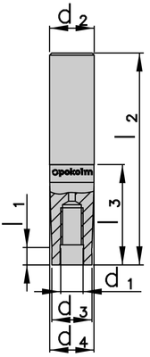

| Adapters plain shank | |||||||||||
 |
10 12 600 G | M 5 | 10 | 9.5 | 11.8 | Ø 12 | -- | 55 | 7.8 | 385 |
|
| 20 12 600 G | M 5 | 20 | 9.5 | 11.5 | Ø 12 | -- | 65 | 7.8 | 385 |
|
|

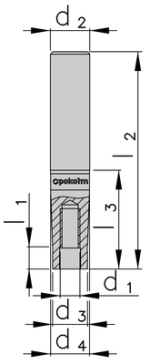

| Plain shank | dense antivibration material | |||||||||||
 |
40 05 601 | M 5 | 40 | 9.5 | 11.3 | Ø 12 | -- | 85 | 9 | 371-374 | |
| 60 05 600 | M 5 | 60 | 9.5 | 11.3 | Ø 12 | -- | 105 | 9 | 371-374 | ||
| 80 05 601 | M 5 | 80 | 9.5 | 11.3 | Ø 12 | -- | 125 | 9 | 371-374 | ||

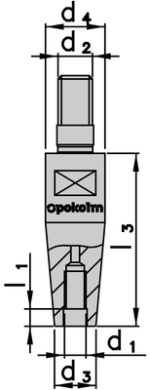

| Reductions | |||||||||||
 |
08 40 781 | M 5 | 40 | 9.5 | 13.8 | M 8 | -- | -- | 7.8 | 314-318 |
|
