FOR THREADED SHANK END MILL BODIES |
|
M 16 |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - arbors for left-hand cutting on request - SK and BT arbors with coolant supply through collar on request - other dimensions on request |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |

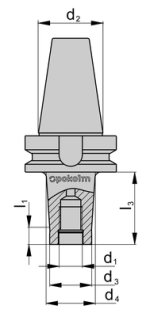

| Int. taper 40 DIN 69 871 AD | tapered---- | |||||||||||
 |
25 16 750 | M 16 | 25 | 29 | 29 | SK 40 | DIN 69871 AD |
-- | -- | A, B |
 |
| 50 16 750 | M 16 | 50 | 29 | 34 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 75 16 750 | M 16 | 75 | 29 | 35 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 100 16 750 | M 16 | 100 | 29 | 40 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 125 16 750 | M 16 | 125 | 29 | 44 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 150 16 750 | M 16 | 150 | 29 | 48 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 200 16 750 | M 16 | 200 | 29 | 48 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 250 16 750 | M 16 | 250 | 29 | 48 | SK 40 | DIN 69871 AD |
-- | 12 | A, B |
|
|
 KBSK40-69872A A > Page 406 |
 KBSK40-69872B B > Page 406 |
||||||||||
| Int. taper 40 DIN 69 871 AD | cylindrical | |||||||||||
 |
50 16 750 ZYL | M 16 | 50 | 29 | 29 | SK 40 | DIN 69871 AD |
-- | -- | A, B |
|
| 75 16 750 ZYL | M 16 | 75 | 29 | 29 | SK 40 | DIN 69871 AD |
-- | -- | A, B |
|
|
| 100 16 750 ZYL | M 16 | 100 | 29 | 29 | SK 40 | DIN 69871 AD |
-- | -- | A, B |
|
|
|
KBSK40-69872A A > Page 406 |
KBSK40-69872B B > Page 406 |
||||||||||
| Int. taper 40 MAS BT | |||||||||||
 |
25 16 754 | M 12 | 25 | 29 | 29 | BT 40 | JIS B 6339 AD |
-- | -- |
|
|
| 50 16 754 | M 16 | 50 | 29 | 34 | BT 40 | JIS B 6339 AD |
-- | 12 |
|
||
| 75 16 754 | M 16 | 75 | 29 | 35 | BT 40 | JIS B 6339 AD |
-- | 12 |
|
||
| 100 16 754 | M 16 | 100 | 29 | 40 | BT 40 | JIS B 6339 AD |
-- | 12 |
|
||
| 125 16 754 | M 16 | 125 | 29 | 44 | BT 40 | JIS B 6339 AD |
-- | 12 |
|
||
| 150 16 754 | M 16 | 100 | 29 | 48 | BT 40 | JIS B 6339 AD |
-- | 12 |
|
||

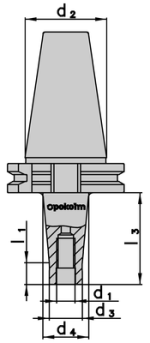

| Int. taper 50 DIN 69 871 AD | |||||||||||
 |
50 16 710 | M 16 | 50 | 29 | 34 | SK 50 | DIN 69871 AD |
-- | 12 | A, B |
|
| 100 16 710 | M 16 | 100 | 29 | 40 | SK 50 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 150 16 710 | M 16 | 150 | 29 | 48 | SK 50 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 200 16 710 | M 16 | 200 | 29 | 50 | SK 50 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 250 16 750 | M 16 | 250 | 29 | 62 | SK 50 | DIN 69871 AD |
-- | 12 | A, B |
|
|
| 300 16 750 | M 16 | 300 | 29 | 68 | SK 50 | DIN 69871 AD |
-- | 12 | A, B |
|
|
|
KBSK50-69872A A > Page 406 |
KBSK50-69872B B > Page 406 |
||||||||||

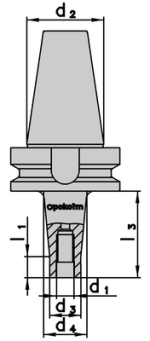

| Int. taper 50 MAS BT | |||||||||||
 |
50 16 714 | M 16 | 50 | 29 | 34 | BT 50 | JIS B 6339 AD |
-- | 12 |
|
|
| 100 16 714 | M 16 | 100 | 29 | 34 | BT 50 | JIS B 6339 AD |
-- | 12 |
|
||
| 150 16 714 | M 16 | 150 | 29 | 48 | BT 50 | JIS B 6339 AD |
-- | 12 |
|
||
| 200 16 714 | M 16 | 200 | 29 | 58 | BT 50 | JIS B 6339 AD |
-- | 12 |
|
||
| 250 16 714 | M 16 | 250 | 29 | 62 | BT 50 | JIS B 6339 AD |
-- | 12 |
|
||
| 300 16 714 | M 16 | 300 | 29 | 68 | BT 50 | JIS B 6339 AD |
-- | 12 |
|
||
| Hollow taper shank 50 E | |||||||||||
 |
25 16 E50 | M 16 | 25 | 29 | 29 | HSK 50 |
form E | -- | 12 | A, B |
|
| 50 16 E50 | M 16 | 50 | 29 | 34 | HSK 50 |
form E | -- | 12 | A, B |
|
|
| 75 16 E50 | M 16 | 75 | 29 | 35 | HSK 50 |
form E | -- | 12 | A, B |
|
|
 KMR-50A A > Page 406 |
 SCHLUESSELHSK50 B > Page 406 |
||||||||||
| Hollow taper shank 63 A | |||||||||||
 |
25 16 A63 | M 16 | 25 | 29 | 29 | HSK 63 |
form A | -- | -- | A, B |
|
| 50 16 A63 | M 16 | 50 | 29 | 34 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 75 16 A63 | M 16 | 75 | 29 | 35 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 100 16 A63 | M 16 | 100 | 29 | 40 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 125 16 A63 | M 16 | 125 | 29 | 44 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 150 16 A63 | M 16 | 150 | 29 | 48 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 175 16 A63 | M 16 | 175 | 29 | 50 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 200 16 A63 | M 16 | 200 | 29 | 50 | HSK 63 |
form A | -- | 12 | A, B |
|
|
| 250 16 A63 | M 16 | 250 | 29 | 50 | HSK 63 |
form A | -- | 12 | A, B |
|
|
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||

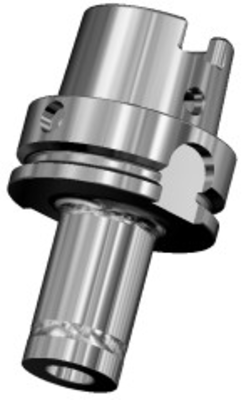

| Hollow taper shank 63 A | cylindrical | |||||||||||
 |
50 16 A63 ZYL | M 16 | 50 | 29 | 29 | HSK 63 |
form A | -- | -- | A, B |
|
| 100 16 A63 ZYL | M 16 | 100 | 29 | 29 | HSK 63 |
form A | -- | -- | A, B |
|
|
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||

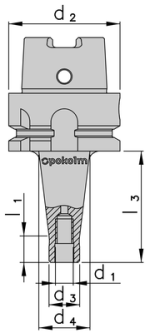

| Hollow taper shank 100 A | |||||||||||
 |
50 16 A100 | M 16 | 50 | 29 | 34 | HSK 100 |
form A | -- | 12 | A, B |
|
| 100 16 A100 | M 16 | 100 | 29 | 40 | HSK 100 |
form A | -- | 12 | A, B |
|
|
| 150 16 A100 | M 16 | 150 | 29 | 58 | HSK 100 |
form A | -- | 12 | A, B |
|
|
| 200 16 A100 | M 16 | 200 | 29 | 58 | HSK 100 |
form A | -- | 12 | A, B |
|
|
| 250 16 A100 | M 16 | 250 | 29 | 66 | HSK 100 |
form A | -- | 12 | A, B |
|
|
| 300 16 A100 | M 16 | 300 | 29 | 66 | HSK 100 |
form A | -- | 12 | A, B |
|
|
|
KMR-100A A > Page 406 |
SCHLUESSELHSK100 B > Page 406 |
||||||||||
| Morse taper shank adapters | |||||||||||
 |
10 630 | M 16 | 10 | 29 | 31.5 | MTS 4 |
-- | -- | -- | 336-339 |
|
| 35 630 | M 16 | 35 | 29 | 31.5 | MTS 4 |
-- | -- | 8.5 | 336-339 |
|
|
| 50 630 | M 16 | 50 | 29 | 31.6 | MTS 6 |
-- | -- | 8.5 | 336-339 |
|
|
| 65 630 | M 16 | 65 | 29 | 31.6 | MTS 4 |
-- | -- | 8.5 | 336-339 |
|
|
| 80 630 | M 16 | 80 | 29 | 31.6 | MTS 4 |
-- | -- | 8.5 | 336-339 |
|
|
| 95 630 | M 16 | 95 | 29 | 31.5 | MTS 4 |
-- | -- | 8.5 | 336-339 |
|
|
| 100 650 | M 16 | 100 | 29 | 44.5 | MTS 5 |
-- | -- | 8.5 | 336-339 |
|
|
| 120 650 | M 16 | 120 | 29 | 44.5 | MTS 5 |
-- | -- | 8.5 | 336-339 |
|
|
| 150 650 | M 16 | 150 | 29 | 44.7 | MTS 5 |
-- | -- | 8.5 | 336-339 |
|
|
| 180 650 | M 16 | 180 | 29 | 440 | MTS 5 |
-- | -- | 8.5 | 336-339 |
|
|
| Adapters plain shank + flats | |||||||||||
 |
50 32 600 | M 16 | 50 | 29 | 31.8 | Ø 32 | -- | 110 | 7.8 |
|
|
| Adapters plain shank | |||||||||||
 |
50 32 600 G | M 16 | 50 | 29 | 31.8 | Ø 32 | -- | 110 | 7.8 |
|
|
| Plain shank | dense antivibration material | |||||||||||
 |
100 16 601 | M 16 | 100 | 31.5 | 34.3 | Ø 36 | -- | 160 | 9 | 384 | |
| 150 16 601 | M 16 | 150 | 31.5 | 34.3 | Ø 36 | -- | 210 | 9 | 384 | ||
| 200 16 601 | M 16 | 200 | 31.5 | 34.3 | Ø 36 | -- | 260 | 9 | 384 | ||
| 250 16 601 | M 16 | 250 | 31.5 | 34.3 | Ø 36 | -- | 3310 | 9 | 384 | ||
| 300 16 601 | M 16 | 300 | 31.5 | 34.3 | Ø 36 | -- | 360 | 9 | 384 | ||
| Plain shank | solid carbide | |||||||||||
 |
100 16 606 | M 16 | 100 | 31.5 | 34.3 | Ø 36 | -- | 160 | 9 | 384 |
 |
| 150 16 606 | M 16 | 150 | 31.5 | 34.3 | Ø 36 | -- | 210 | 9 | 384 |
|
|
| 200 16 606 | M 16 | 200 | 31.5 | 34.3 | Ø 36 | -- | 260 | 9 | 384 |
|
|
| 250 16 606 | M 16 | 250 | 31.5 | 34.3 | Ø 36 | -- | 310 | 9 | 384 |
|
|
| 300 16 606 | M 16 | 300 | 31.5 | 34.3 | Ø 36 | -- | 360 | 9 | 384 |
|
|
| Extension adapters | |||||||||||
 |
16 40 780 | M 16 | 40 | 29 | 29 | M 16 | -- | -- | -- | 330-335 |
|
| 16 60 780 | M 16 | 60 | 29 | 29 | M 16 | -- | -- | -- | 330-335 |
|
|
| Reduction-adapters shell-tp to thread connect |
|||||||||||
 |
60 22 M16 783 | M 16 | 60 | 29 | 48 | Ø 22 | -- | -- | 12 | 342-344 A |
|
| 100 22 M16 783 | M 16 | 100 | 29 | 48 | Ø 22 | -- | -- | 12 | 342-344 A |
|
|
| 60 27 M16 783 | M 16 | 60 | 29 | 62 | Ø 27 | -- | -- | 12 | 345-347 B |
|
|
| 100 27 M16 783 | M 16 | 100 | 29 | 62 | Ø 27 | -- | -- | 12 | 345-347 B |
|
|
 M6x25 A > Page 402 |
M8x25 B > Page 402 |
||||||||||
