MILLING CUTTER BODIES FOR ROUND INSERTS |
|
r 3.5 x 2.38 | neutral (0° axial rake angle) |
|
Our all-purpose milling cutter: - for high-speed machining centres - for roughing and finishing applications |
| Milling cutter bodies |
catalogue no. |

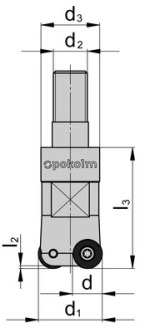

d1 |
l |
r |
l3 |
l2 |
l1 |
d2 |
d3 |
z |
ref.pg. arbors ref.accessories |
features |
| DuoPlug® | ||||||||||||
 |
2 14 200 SG | 14 | 7 | 3.5 | 24.5 | -- | -- | M 7 | 12 | 2 | 310-311 A, B, C, D, E |
 |
| 2 16 200 SG | 16 | 7 | 3.5 | 28.5 | 1.5 | -- | M 10 | 15 | 2 | 310-311 A, B, C, D, E |
|
|
| 3 16 200 SG | 16 | 7 | 3.5 | 28.5 | 1.5 | -- | M 10 | 15 | 3 | 310-311 A, B, C, D, E |
|
|
| 4 20 200 SG | 20 | 7 | 3.5 | 28.5 | 1.5 | -- | M 12 | 18.6 | 4 | 310-311 A, B, C, D, E |
|
|
| 5 25 200 SG | 25 | 7 | 3.5 | 30 | 1.5 | -- | M 16 | 23.5 | 5 | 310-311 A, B, C, D, E |
|
|
| 310-311 A, B, C, D, E, F |
||||||||||||
 |
 |
 |
 |
 |
||||||||
| 25 500 A > Page 401 |
07 500 B > Page 403 |
TV 04-1 C > Page 404 |
T7 500 D > Page 405 |
T7 502 E > Page 405 |
||||||||
| Threaded shank end mill bodies | ||||||||||||
 |
15 200 | 15 | 7 | 3.5 | 28.5 | 1.5 | -- | M 8 | 13.8 | 2 | 314-318 A, B, C, D, E |
|
| 3 16 200 | 16 | 7 | 3.5 | 28.5 | 1.5 | -- | M 8 | 13.8 | 3 | 314-318 A, B, C, D, E |
|
|
| 4 20 200 | 20 | 7 | 3.5 | 28.5 | 1.6 | -- | M 10 | 18 | 4 | 319-323 A, B, C, D, E |
|
|
| 5 25 200 | 25 | 7 | 3.5 | 28.5 | 1.5 | -- | M 12 | 21 | 5 | 324-329 A, B, C, D, E |
|
|
| 5 30 200 | 30 | 7 | 3.5 | 28.5 | 1.5 | -- | M 16 | 29 | 5 | 330-335 A, B, C, D, E |
|
|
| 6 35 200 | 35 | 7 | 3.5 | 28.5 | 1.5 | -- | M 16 | 29 | 6 | 330-335 A, B, C, D, E |
|
|
| 7 42 200 | 42 | 7 | 3.5 | 42.5 | 1.5 | -- | M 16 | 29 | 7 | 330-335 A, B, C, D, E |
|
|
|
|
|
|
|
||||||||
| 25 500 A > Page 401 |
07 500 B > Page 403 |
TV 04-1 C > Page 404 |
T7 500 D > Page 405 |
T7 502 E > Page 405 |
||||||||
| End mill bodies with plain shank and flats | ||||||||||||
 |
40 15 100 | 15 | 7 | 3.5 | 40 | 2.6 | 23 | Ø 16 | -- | 2 | 375-378 A, B, C, D, E |
 |
| 60 15 100 | 15 | 7 | 3.5 | 60 | 2.6 | 23 | Ø 16 | -- | 2 | 375-378 A, B, C, D, E |
|
|
| 80 15 100 | 15 | 7 | 3.5 | 80 | 2.6 | 22 | Ø 20 | -- | 2 | 379-381 A, B, C, D, E |
|
|
| 100 15 100 | 15 | 7 | 3.5 | 100 | 2.6 | 22 | Ø 20 | -- | 2 | 379-381 A, B, C, D, E |
|
|
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
|
|
|
|
|
||||||||
| 25 500 A > Page 401 |
07 500 B > Page 403 |
TV 04-1 C > Page 404 |
T7 500 D > Page 405 |
T7 502 E > Page 405 |
||||||||
