MILLING CUTTER BODIES FOR ROUND INSERTS |
|
r 2.5 | neutral (0° axial rake angle) |
|
Tools especially suitable for milling small dies and engraving. The larger number of teeth allows much higher feed rates. |
| Milling cutter bodies |
catalogue no. |
d1 |
l |
r |
l3 |
l2 |
l1 |
d2 |
d3 |
z |
ref.pg. arbors ref.accessories |
features |
| DuoPlug® | ||||||||||||
 |
3 12 225 SG | 12 | 5 | 2.5 | 24.5 | 1.3 | -- | M 7 | 10.8 | 3 | 310-311 A, B, C, D, E |
 |
| 4 15 225 SG | 15 | 5 | 2.5 | 28 | 1.3 | -- | M 10 | 14 | 4 | 310-311 A, B, C, D, E |
|
|
| 4 16 225 SG | 16 | 5 | 2.5 | 28 | 1.3 | -- | M 10 | 15 | 4 | 310-311 A, B, C, D, E |
|
|
| 5 20 225 SG | 20 | 5 | 2.5 | 28 | 1.3 | -- | M 12 | 18.5 | 5 | 310-311 A, B, C, D, E |
|
|
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
 |
 |
 |
 |
 |
||||||||
| 21 500 A > Page 401 |
06 500 B > Page 403 |
TV 04-1 C > Page 404 |
T6 500 D > Page 405 |
T6 502 E > Page 405 |
||||||||
| Threaded shank end mill bodies | ||||||||||||
 |
2 10 225 | 10 | 5 | 2.5 | 19 | -- | -- | M 5 | 9.5 | 2 | 312-313 A, B, C, D, E |
|
| 3 12 225 M5 | 12 | 5 | 2.5 | 20.5 | 1.3 | -- | M 5 | 9.7 | 3 | 312-313 A, B, C, D, E |
|
|
| 3 12 225 | 12 | 5 | 2.5 | 19 | -- | -- | M 8 | 11.8 | 3 | 314-318 A, B, C, D, E |
|
|
| 4 15 225 | 15 | 5 | 2.5 | 20.5 | 1.3 | -- | M 8 | 13.8 | 4 | 312-313 A, B, C, D, E |
|
|
| 5 20 225 | 20 | 5 | 2.5 | 25.5 | 1.3 | -- | M 10 | 18 | 5 | 319-323 A, B, C, D, E |
|
|
| 310-311 A, B, C, D, E, F |
||||||||||||
|
|
|
|
|
||||||||
| 21 500 A > Page 401 |
06 500 B > Page 403 |
TV 04-1 C > Page 404 |
T6 500 D > Page 405 |
T6 502 E > Page 405 |
||||||||

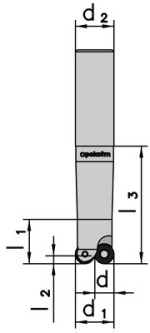

| Plain shank end mill bodies | ||||||||||||
 |
30 08 125 | 8 | 5 | 2.5 | 30 | -- | 18 | Ø 10 | -- | 1 | 366-370 A, B, C, D, E |
|
| 30 10 125 | 10 | 5 | 2.5 | 30 | -- | 24 | Ø 10 | -- | 2 | 366-370 A, B, C, D, E |
|
|
| 30 12 125 | 12 | 5 | 2.5 | 30 | 1.3 | 24 | Ø 12 | -- | 3 | 385 A, B, C, D, E |
|
|
| 30 16 125 | 16 | 5 | 2.5 | 30 | 1.3 | 23.5 | Ø 16 | -- | 5 | 375-378 A, B, C, D, E |
 |
|
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
|
|
|
|
|
||||||||
| 21 500 A > Page 401 |
06 500 B > Page 403 |
TV 04-1 C > Page 404 |
T6 500 D > Page 405 |
T6 502 E > Page 405 |
||||||||
