MILLING CUTTER BODIES FOR ROUND INSERTS |
|
r 10 | neutral (0°) and 7° positive rake angles |
|
These tools have extremely rigid inserts, which provide optimal conditions for heavy-duty milling operations under most difficult conditions and allows for very high-performance milling and extremely high feed-rates. |
| Milling cutter bodies |
catalogue no. |
d1 |
l |
r |
l3 |
l2 |
l1 |
d2 |
d3 |
z |
ref.pg. arbors ref.accessories |
features |
| Threaded shank end mill bodies | ||||||||||||
 |
40 200 | 40 | 20 | 10 | 53.5 | -- | -- | M 16 | 29 | 2 | 330-335 A, B, C, D, E, F |
 |
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
 |
 |
 |
 |
 |
 |
|||||||
| 45 500 A > Page 401 |
10 510 B > Page 403 |
20 500 C > Page 403 |
TV 2-8 D > Page 404 |
T20 500 E > Page 405 |
T20 502 F > Page 405 |
|||||||

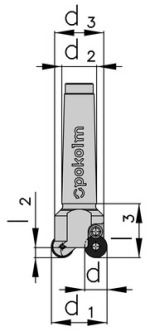

| Morse taper shank end mill bidies | ||||||||||||
 |
40 40 180 | 40 | 20 | 10 | 40 | -- | -- | MTS 4 | 34 | 2 | 335-339 A, B, C, D, E, F |
|
| 40 50 180 | 50 | 20 | 10 | 40 | 6 | -- | MTS 4 | 43 | 3 | 336-339 A, C, D, E, F |
|
|
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
|
|
|
|
|
|
|||||||
| 45 500 A > Page 401 |
10 510 B > Page 403 |
20 500 C > Page 403 |
TV 2-8 D > Page 404 |
T20 500 E > Page 405 |
T20 502 F > Page 405 |
|||||||
| Shell tp.mill.cutt. bodies | 7° pos.rake angle | ||||||||||||
 |
5 66 340/7 | 66 | 20 | 10 | 53 | 6.5 | -- | M 27 | 48 | 5 | 345-347 A, B, C, D, E, F |
|
| 80 340/7 | 80 | 20 | 10 | 53 | 6.5 | -- | M 27 | 60 | 5 | 345-347 A, B, C, D, E, F |
|
|
| 100 340/7 | 100 | 20 | 10 | 53 | 6.5 | -- | M 32 | 70 | 6 | 348 A, B, C, D, E, F |
|
|
| 160 340/7 | 160 | 20 | 10 | 53 | 6.5 | -- | M 40 | 120 | 8 | 349 A, B, C, D, E, F |
|
|
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
|
|
|
|
|
|
|||||||
| 45 500 A > Page 401 |
10 510 B > Page 403 |
20 500 C > Page 403 |
TV 2-8 D > Page 404 |
T20 500 E > Page 405 |
T20 502 F > Page 405 |
|||||||
|
MILLING CUTTER BODIES FOR ROUND INSERTS |
|
r 10 | 17° positive axial rake angles |
|
These face mills have extremely rigid inserts specially designed for very high-performance milling and an extremely high feed per tooth. The exceptionally easy cutting geometry makes it especially suitable for steel and stainless steel. |
| Milling cutter bodies |
catalogue no. |
d1 |
l |
r |
l3 |
l2 |
l1 |
d2 |
d3 |
z |
ref.pg. arbors ref.accessories |
features |
| Shell type milling cutter bodies | ||||||||||||
 |
80 340/17 | 80 | 20 | 10 | 53 | 6 | -- | Ø 27 | 60 | 5 | 345-347 A, B, C, D, E, F |
|
| 100 340/17 | 100 | 20 | 10 | 53 | 6 | -- | Ø 32 | 70 | 6 | 348 A, B, C, D, E, F |
|
|
| 160 340/17 | 160 | 20 | 10 | 53 | 6 | -- | Ø 40 | 120 | 8 | 349 A, B, C, D, E, F |
|
|
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
|
|
|
|
|
|
|||||||
| 45 500 A > Page 401 |
10 510 B > Page 403 |
20 500 C > Page 403 |
TV 2-8 D > Page 404 |
T20 500 E > Page 405 |
T20 502 F > Page 405 |
|||||||
