MILLING CUTTER BODIES FOR ROUND INSERTS |
|
r 3.5 x 1.99 | neutral (0° axial rake angle) |
|
Tools especially suitable for milling small dies and engraving. The larger number of teeth allows much higher feed rates. |
| Milling cutter bodies |
catalogue no. |
d1 |
l |
r |
l3 |
l2 |
l1 |
d2 |
d3 |
z |
ref.pg. arbors ref.accessories |
features |
| DuoPlug® | ||||||||||||
 |
2 12 235 SG | 12 | 7 | 3.5 | 24.5 | -- | -- | M 7 | 10.8 | 2 | 310-311 B, C, D, E, F |
 |
| 3 15 235 SG | 15 | 7 | 3.5 | 28 | 1.5 | -- | M 10 | 14 | 3 | 310-311 A, C, D, E, F |
|
|
| 5 25 225 SG | 25 | 7 | 3.5 | 30 | 1.5 | -- | M 16 | 23.5 | 5 | 310-311 A, C, D, E, F |
|
|
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
 |
|
 |
 |
 |
 |
|||||||
| 25 500 A > Page 401 |
25 500 K B > Page 401 |
07 500 C > Page 403 |
TV 04-1 D > Page 404 |
T7 500 E > Page 405 |
T7 502 F > Page 405 |
|||||||
| Threaded shank end mill bodies | ||||||||||||
 |
12 200 | 12 | 7 | 3.5 | 28.5 | -- | -- | M 8 | 11.8 | 2 | 314-318 B, C, D, E, F |
|
| 12 200 M5 | 12 | 7 | 3.5 | 28.5 | -- | -- | M 5 | 11.8 | 2 | 312-313 B, C, D, E, F |
|
|
| 3 15 235 | 15 | 7 | 3.5 | 28.5 | 1.5 | -- | M 8 | 13.8 | 3 | 314-318 A, C, D, E, F |
|
|
| 4 20 235 | 20 | 7 | 3.5 | 28.5 | 1.5 | -- | M 10 | 18 | 4 | 319-323 A, C, D, E, F |
|
|
| 5 25 235 | 25 | 7 | 3.5 | 28.5 | 1.5 | -- | M 12 | 21 | 5 | 324-329 A, C, D, E, F |
|
|
| 6 30 235 | 30 | 7 | 3.5 | 28.5 | 1.5 | -- | M 16 | 29 | 6 | 330-335 A, C, D, E, F |
|
|
|
|
|
|
|
|
|||||||
| 25 500 A > Page 401 |
25 500 K B > Page 401 |
07 500 C > Page 403 |
TV 04-1 D > Page 404 |
T7 500 E > Page 405 |
T7 502 F > Page 405 |
|||||||
| Plain shank end mill bodies | ||||||||||||
 |
30 12 100 | 12 | 7 | 3.5 | 30 | -- | 23 | Ø 12 | -- | 2 | 385 A, B, C, D, E |
|
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
|
|
|
|
|
||||||||
| 25 500 A > Page 401 |
07 500 B > Page 403 |
TV 04-1 C > Page 404 |
T7 500 D > Page 405 |
T7 502 E > Page 405 |
||||||||

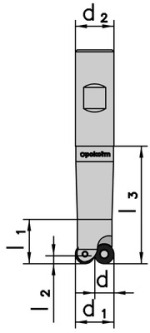

| End mill bodies with plain shank and flats | ||||||||||||
 |
40 12 100 | 12 | 7 | 3.5 | 40 | -- | 19.5 | Ø 16 | -- | 2 | 375-378 B, C, D, E, F |
|
| 60 12 100 | 12 | 7 | 3.5 | 60 | -- | 19.5 | Ø 16 | -- | 2 | 375-378 B, C, D, E, F |
|
|
| 80 12 100 | 12 | 7 | 3.5 | 80 | -- | -- | Ø 16 | -- | 2 | 375-378 B, C, D, E, F |
|
|
| 30 15 100 | 15 | 7 | 3.5 | 30 | 1.2 | 19.5 | Ø 12 | -- | 3 | 385 A, C, D, E, F |
|
|
| N 30 15 100 | 15 | 7 | 3.5 | 30 | 1.2 | 19.5 | Ø 16 | -- | 3 | 375-378 A, C, D, E, F |
|
|
| 310-311 A, B, C, D, E, F |
||||||||||||
|
|
|
|
|
|
|||||||
| 25 500 A > Page 401 |
25 500 K B > Page 401 |
07 500 C > Page 403 |
TV 04-1 D > Page 404 |
T7 500 E > Page 405 |
T7 502 F > Page 405 |
|||||||
