END MILLS |
|
2 flutes for non-ferrous materials | with + no working depth | standard + long series |
|
0412 2 flutes, plain shank, straight face, centre cutting, 45° right hand helix, PVAS-coated - standard and long series - on demand: available with working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| with + no WD | standard + long | |||||||||||
 |
NW 0412 47 010 | 1 | 2 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
 |
| NW 0412 47 0102 | 1 | 2 | 10 | 0.95 | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 0103 | 1 | 2 | 15 | 0.95 | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 015 | 1.5 | 3 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 0152 | 1.5 | 3 | 10 | 1.4 | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 0153 | 1.5 | 3 | 15 | 1.4 | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 021 | 2 | 4 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 0212 | 2 | 4 | 10 | 1.9 | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 0214 | 2 | 4 | 20 | 1.9 | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 0215 | 2 | 4 | 30 | 1.9 | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 020 | 2 | 4 | -- | -- | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 025 | 2.5 | 5 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 0252 | 2.5 | 5 | 10 | 2.4 | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 0254 | 2.5 | 5 | 20 | 2.4 | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 031 | 3 | 6 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 030 | 3 | 6 | -- | -- | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0302 | 3 | 6 | 10 | 2.9 | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0304 | 3 | 6 | 20 | 2.9 | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0305 | 3 | 6 | 30 | 2.9 | 75 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 041 | 4 | 8 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0412 47 040 | 4 | 8 | -- | -- | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0402 | 4 | 8 | 10 | 3.8 | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0404 | 4 | 8 | 20 | 3.8 | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0405 | 4 | 8 | 30 | 3.8 | 75 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0406 | 4 | 8 | 40 | 3.8 | 75 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 050 | 5 | 10 | -- | -- | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0504 | 5 | 10 | 20 | 4.8 | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0505 | 5 | 10 | 30 | 4.8 | 75 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 060 | 6 | 12 | -- | -- | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0602 | 6 | 12 | 15 | 5.8 | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0604 | 6 | 12 | 20 | 5.8 | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0605 | 6 | 12 | 30 | 5.8 | 75 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 0606 | 6 | 12 | 40 | 5.8 | 75 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0412 47 080 | 8 | 16 | -- | -- | 63 | -- | 8 | 2 | 361-365 A |
|
|
| NW 0412 47 0804 | 8 | 16 | 20 | 7.8 | 63 | -- | 8 | 2 | 361-365 A |
|
|
| NW 0412 47 0805 | 8 | 16 | 40 | 7.8 | 90 | -- | 8 | 2 | 361-365 A |
|
|
| NW 0412 47 0807 | 8 | 16 | 60 | 7.8 | 100 | -- | 8 | 2 | 361-365 A |
|
|
| NW 0412 47 100 | 10 | 20 | -- | -- | 72 | -- | 10 | 2 | 366-370 A |
|
|
| NW 0412 47 0807 | 8 | 16 | 60 | 7.8 | 100 | -- | 8 | 2 | 361-365 A |
|
|
| NW 0412 47 100 | 10 | 20 | -- | -- | 72 | -- | 10 | 2 | 366-370 A |
|
|
| NW 0412 47 1006 | 10 | 20 | 40 | 9.8 | 100 | -- | 10 | 2 | 366-370 A |
|
|
| NW 0412 47 1008 | 10 | 20 | 60 | 9.8 | 100 | -- | 10 | 2 | 366-370 A |
|
|
| NW 0412 47 120 | 12 | 24 | -- | -- | 83 | -- | 12 | 2 | 371-374 A |
|
|
| NW 0412 47 1205 | 12 | 24 | 30 | 11.8 | 83 | -- | 12 | 2 | 371-374 A |
|
|
| NW 0412 47 1207 | 12 | 24 | 60 | 11.8 | 110 | -- | 12 | 2 | 371-374 A |
|
|
| NW 0412 47 1208 | 12 | 24 | 80 | 11.8 | 110 | -- | 12 | 2 | 371-374 A |
|
|
| NW 0412 47 1209 | 12 | 24 | 100 | 11.8 | 150 | -- | 12 | 2 | 371-374 A |
|
|
| NW 0412 47 160 | 16 | 32 | -- | -- | 92 | -- | 16 | 2 | 375-378 A |
|
|
| NW 0412 47 1605 | 16 | 32 | 50 | 15.8 | 92 | -- | 16 | 2 | 375-378 A |
|
|
| NW 0412 47 1606 | 16 | 32 | 70 | 15.8 | 120 | -- | 16 | 2 | 375-378 A |
|
|
| NW 0412 47 1607 | 16 | 32 | 100 | 15.8 | 150 | -- | 16 | 2 | 375-378 A |
|
|
| NW 0412 47 1608 | 16 | 32 | 110 | 15.8 | 150 | -- | 16 | 2 | 375-378 A |
|
|
| NW 0412 47 200 | 20 | 40 | -- | -- | 104 | -- | 20 | 2 | 379-381 A |
|
|
| NW 0412 47 2006 | 20 | 40 | 60 | 19.8 | 104 | -- | 20 | 2 | 379-381 A |
|
|
| NW 0412 47 2007 | 20 | 40 | 80 | 19.8 | 150 | -- | 20 | 2 | 379-381 A |
|
|
| NW 0412 47 2008 | 20 | 40 | 100 | 19.8 | 150 | -- | 20 | 2 | 379-381 A |
|
|
|
END MILLS |
|
2 flutes for non-ferrous materials | with + no working depth | standard + long series |
|

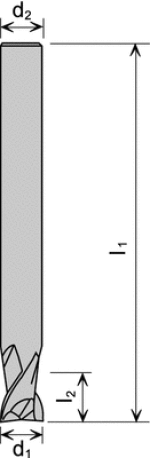

0422 2 flutes, plain shank, straight face, centre cutting, 45° right hand helix, PVAS-coated - long series - on demand: available with working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | long series | |||||||||||
 |
NW 0422 47 030 | 3 | 15 | -- | -- | 60 | -- | 3 | 2 | 350-351 A |
|
| NW 0422 47 031 | 3 | 15 | -- | -- | 75 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0422 47 040 | 4 | 20 | -- | -- | 60 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0422 47 041 | 4 | 20 | -- | -- | 75 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0422 47 042 | 4 | 20 | -- | -- | 100 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0422 47 050 | 5 | 20 | -- | -- | 70 | -- | 5 | 2 | 385 A |
|
|
| NW 0422 47 0506 | 5 | 20 | -- | -- | 75 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0422 47 0516 | 5 | 20 | -- | -- | 100 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0422 47 060 | 6 | 20 | -- | -- | 100 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0422 47 061 | 6 | 20 | -- | -- | 150 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0422 47 080 | 8 | 25 | -- | -- | 100 | -- | 8 | 2 | 361-365 A |
|
|
| NW 0422 47 081 | 8 | 25 | -- | -- | 150 | -- | 8 | 2 | 361-365 A |
|
|
| NW 0422 47 100 | 10 | 25 | -- | -- | 100 | -- | 10 | 2 | 366-370 A |
|
|
| NW 0422 47 101 | 10 | 25 | -- | -- | 150 | -- | 10 | 2 | 366-370 A |
|
|
| NW 0422 47 120 | 12 | 30 | -- | -- | 100 | -- | 12 | 2 | 371-374 A |
|
|
| NW 0422 47 121 | 12 | 30 | -- | -- | 150 | -- | 12 | 2 | 371-374 A |
|
|
| NW 0422 47 161 | 16 | 30 | -- | -- | 150 | -- | 16 | 2 | 375-378 A |
|
|
| NW 0422 47 201 | 20 | 35 | -- | -- | 150 | -- | 20 | 2 | 379-381 A |
|
|
|
END MILLS |
|
3 flutes for graphite | pre-finishing and roughing |
|

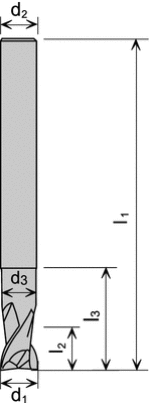

0493 3 flutes, plain shank, straight face, centre cutting, 45° right hand helix - up to 3 mm diam.: PVDiaG - diamond coating - over 3 mm diam.: PVDiaN - diamond coating - standard and long series - with and without working depth - Attention: for graphite machining only |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| with + no WD | standard + long series | |||||||||||
 |
NW 0493 48 034 | 3 | 10 | -- | -- | 50 | - | 4 | 3 | 352-355 A |
|
| SW 0493 48 031 | 3 | 20 | -- | -- | 100 | -- | 4 | 3 | 352-355 A |
|
|
| SW 0493 48 0341 | 3 | 4.5 | 10 | 2.9 | 50 | - | 4 | 3 | 352-355 A |
|
|
| SW 0493 48 03030 | 3 | 4.5 | 15 | 2.9 | 50 | -- | 4 | 3 | 352-355 A |
|
|
| SW 0493 48 03051 | 3 | 4.5 | 25 | 2.9 | 75 | - | 4 | 3 | 352-355 A |
|
|
| SW 0493 48 04170 | 4 | 6 | 15 | 3.8 | 75 | -- | 4 | 3 | 352-355 A |
|
|
| SW 0493 48 04052 | 4 | 6 | 25 | 3.8 | 75 | - | 4 | 3 | 352-355 A |
|
|
| SW 0493 48 04060 | 4 | 6 | 45 | 3.8 | 100 | -- | 4 | 3 | 352-355 A |
|
|
| SW 0493 48 0608 | 6 | 25 | -- | -- | 150 | - | 6 | 3 | 356-360 A |
|
|
| NW 0493 48 0631 | 6 | 40 | -- | -- | 100 | -- | 6 | 3 | 356-360 A |
|
|
| SW 0493 48 064 | 6 | 9 | 20 | 5.8 | 75 | - | 6 | 3 | 356-360 A |
|
|
| SW 0493 48 0631 | 6 | 9 | 25 | 5.8 | 75 | -- | 6 | 3 | 356-360 A |
|
|
| SW 0493 48 06071 | 6 | 9 | 45 | 5.8 | 100 | - | 6 | 3 | 356-360 A |
|
|
| SW 0493 48 08080 | 8 | 12 | 32 | 7.8 | 100 | -- | 8 | 3 | 361-365 A |
|
|
| SW 0493 48 0808101 | 8 | 12 | 45 | 7.8 | 100 | - | 8 | 3 | 361-365 A |
|
|
| NW 0493 48 105 | 10 | 25 | -- | -- | 80 | -- | 10 | 3 | 366-370 A |
|
|
| SW 0493 48 10090 | 10 | 15 | 25 | 9.8 | 100 | - | 10 | 3 | 366-370 A |
|
|
| SW 0493 48 10101 | 10 | 15 | 45 | 9.8 | 100 | -- | 10 | 3 | 366-370 A |
|
|
| NW 0493 48 12090 | 12 | 18 | 25 | 11.8 | 83 | - | 12 | 3 | 371-374 A |
|
|
|
END MILLS |
|
GGT roughing end mills for graphite | no working depth | standard series |
|

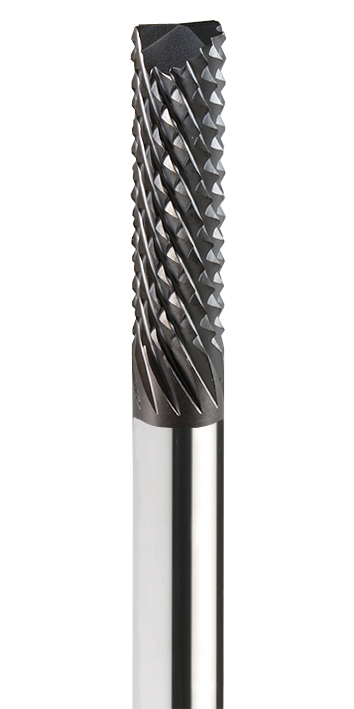

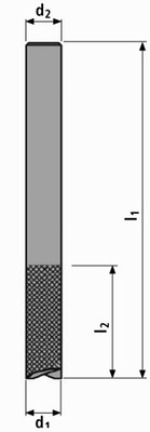

0108 alternative pyramidal teeth, for machining graphite, PVDiaN-diamond coating - 2 end teeth cutting - plain shank, straight face - centre cutting |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | standard series | |||||||||||
 |
NW 0108 48 030 | 3 | 10 | -- | -- | 50 | - | 3 | 2 | 350-351 A |
|
| NW 0108 48 040 | 4 | 10 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0108 48 060 | 6 | 20 | -- | -- | 57 | - | 6 | 2 | 356-360 A |
|
|
| NW 0108 48 080 | 8 | 20 | -- | -- | 60 | -- | 8 | 2 | 361-365 A |
|
|
| NW 0108 48 100 | 10 | 25 | -- | -- | 70 | - | 10 | 2 | 366-370 A |
|
|
| NW 0108 48 120 | 12 | 30 | -- | -- | 85 | -- | 12 | 2 | 371-374 A |
|
|
| NW 0108 48 160 | 16 | 45 | -- | -- | 85 | - | 16 | 2 | 375-378 A |
|
|
