END MILLS |
|
UGT 4 flutes, for stainless steel + heat-resistant alloys |
|

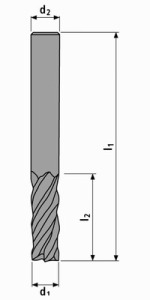

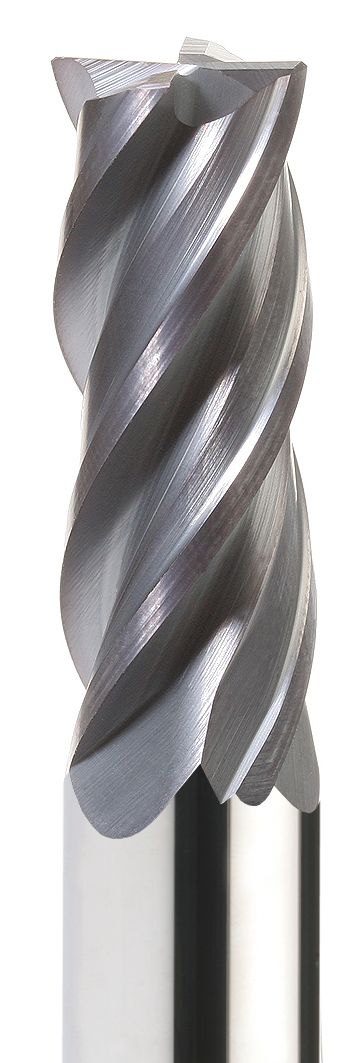

0504 4 flutes end mills, plain shank, sharp corner, centre cutting, PVST-coated - with and without clamping flats - unequal devision - unequal helix angle |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | standard series | |||||||||||
 |
NW 0504 56 030 | 3 | 8 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
 |
| NW 0504 56 040 | 4 | 10 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0504 56 050 | 5 | 12 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0504 56 060 | 6 | 16 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0504 56 080 | 8 | 20 | -- | -- | 63 | -- | 8 | 4 | 361-365 A |
|
|
| NW 0504 56 100 | 10 | 26 | -- | -- | 72 | -- | 10 | 4 | 366-370 A |
|
|
| NW 0504 56 120 | 12 | 30 | -- | -- | 83 | -- | 12 | 4 | 371-374 A |
|
|
| NW 0504 56 160 | 16 | 37 | -- | -- | 92 | -- | 16 | 4 | 375-378 A |
|
|
| NW 0504 56 200 | 20 | 44 | -- | -- | 104 | -- | 20 | 4 | 379-381 A |
|
|
| NW 0504 56 250 | 25 | 50 | -- | -- | 104 | -- | 25 | 4 | 382-383 A |
|
|
|
END MILLS |
|
UGT 4 flutes, for stainless steel + heat-resistant alloys | corner radius |
|

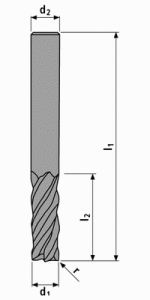

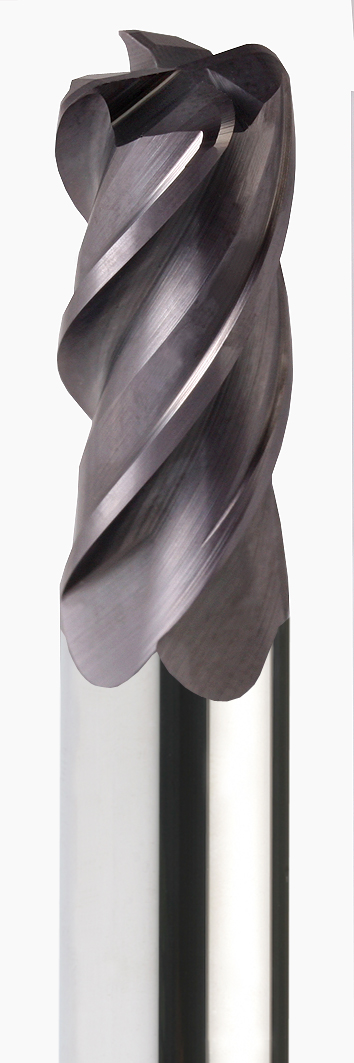

0514 4 flutes end mills, plain shank, centre cutting, PVST-coated - corner radius - with and without clamping flats - unequal devision - unequal helix angle |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | standard series | |||||||||||
 |
NW 0514 56 030 | 3 | 8 | -- | -- | 57 | 0.2 | 6 | 4 | 356-360 A |
|
| NW 0514 56 040 | 4 | 10 | -- | -- | 57 | 0.3 | 6 | 4 | 356-360 A |
|
|
| NW 0514 56 050 | 5 | 12 | -- | -- | 57 | 0.4 | 6 | 4 | 356-360 A |
|
|
| NW 0514 56 060 | 6 | 16 | -- | -- | 57 | 0.5 | 6 | 4 | 356-360 A |
|
|
| NW 0514 56 080 | 8 | 20 | -- | -- | 63 | 0.5 | 8 | 4 | 361-365 A |
|
|
| NW 0514 56 100 | 10 | 26 | -- | -- | 72 | 1 | 10 | 4 | 366-370 A |
|
|
| NW 0514 56 120 | 12 | 30 | -- | -- | 83 | 1 | 12 | 4 | 371-374 A |
|
|
| NW 0514 56 160 | 16 | 37 | -- | -- | 92 | 2 | 16 | 4 | 375-378 A |
|
|
| NW 0514 56 200 | 20 | 44 | -- | -- | 104 | 2 | 20 | 4 | 379-381 A |
|
|
| NW 0514 56 250 | 25 | 50 | -- | -- | 104 | 3 | 25 | 4 | 382-383 A |
|
|
|
END MILLS |
|
4-8 flutes for steel | no working depth | standard series |
|
0259 multiple flutes, plain shank, straight face, centre cutting, 50° right hand helix, PVTi-coated - standard series - on demand: available with working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | standard series | |||||||||||
 |
NW 0259 56 040 | 4 | 8 | -- | -- | 57 | - | 6 | 4 | 356-360 A |
|
| NW 0259 56 050 | 5 | 10 | -- | -- | 57 | -- | 6 | 5 | 356-360 A |
|
|
| NW 0259 56 060 | 6 | 12 | -- | -- | 57 | - | 6 | 6 | 356-360 A |
|
|
| NW 0259 56 080 | 8 | 16 | -- | -- | 63 | -- | 8 | 6 | 361-365 A |
|
|
| NW 0259 56 100 | 10 | 20 | -- | -- | 72 | - | 10 | 6 | 366-370 A |
|
|
| NW 0259 56 120 | 12 | 24 | -- | -- | 83 | -- | 12 | 6 | 371-374 A |
|
|
| NW 0259 56 160 | 16 | 32 | -- | -- | 92 | - | 16 | 6 | 375-378 A |
|
|
| NW 0259 56 200 | 20 | 40 | -- | -- | 104 | -- | 20 | 8 | 379-381 A |
|
|
|
END MILLS |
|
4-8 flutes for steel | no working depth | long series |
|

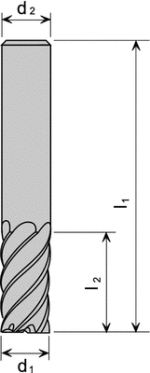

0359 multiple flutes, plain shank, straight face, centre cutting, 50° right hand helix, PVTi-coated - long series - on demand: available with working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | long series | |||||||||||
 |
NW 0359 56 040 | 4 | 12 | -- | -- | 57 | - | 6 | 4 | 356-360 A |
|
| NW 0359 56 050 | 5 | 15 | -- | -- | 57 | -- | 6 | 5 | 356-360 A |
|
|
| NW 0359 56 060 | 6 | 18 | -- | -- | 57 | - | 6 | 6 | 356-360 A |
|
|
| NW 0359 56 080 | 8 | 24 | -- | -- | 63 | -- | 8 | 6 | 361-365 A |
|
|
| NW 0359 56 100 | 10 | 30 | -- | -- | 72 | - | 10 | 6 | 366-370 A |
|
|
| NW 0359 56 120 | 12 | 36 | -- | -- | 83 | -- | 12 | 6 | 371-374 A |
|
|
| NW 0359 56 140 | 14 | 42 | -- | -- | 100 | - | 14 | 6 | A |
|
|
| NW 0359 56 160 | 16 | 48 | -- | -- | 92 | -- | 16 | 6 | 375-378 A |
|
|
| NW 0359 56 200 | 20 | 60 | -- | -- | 125 | - | 20 | 8 | 379-381 A |
|
|
|
END MILLS |
|
6-8 flutes for hardened steel | no working depth | standard series |
|

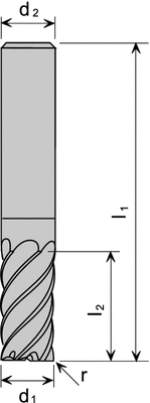

0280 multiple flutes, plain shank, centre cutting, 50° right hand helix, PVTi-coated - corner radius for edge stabilisation - standard series - on demand: available with working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | standard series | |||||||||||
 |
NW 0280 56 060 | 6 | 12 | -- | -- | 57 | 1 | 6 | 6 | 356-360 A |
|
| NW 0280 56 080 | 8 | 16 | -- | -- | 63 | 1 | 8 | 6 | 361-365 A |
|
|
| NW 0280 56 100 | 10 | 20 | -- | -- | 72 | 1.5 | 10 | 6 | 366-370 A |
|
|
| NW 0280 56 120 | 12 | 24 | -- | -- | 83 | 1.5 | 12 | 6 | 371-374 A |
|
|
| NW 0280 56 160 | 16 | 32 | -- | -- | 92 | 2 | 16 | 6 | 375-378 A |
|
|
| NW 0280 56 200 | 20 | 40 | -- | -- | 104 | 2 | 20 | 8 | 379-381 A |
|
|
|
END MILLS |
|
6-8 flutes for hardened steel | no working depth | standard + long |
|
0260 | 0270 multiple flutes, plain shank, straight face, centre cutting, 60° right hand helix, PVTi-coated - corner radius for edge stabilisation - standard and long series - without working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | standard series | |||||||||||
 |
NW 0260 56 050 | 5 | 10 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
|
| NW 0260 56 060 | 6 | 12 | -- | -- | 57 | -- | 6 | 6 | 356-360 A |
|
|
| NW 0260 56 100 | 10 | 20 | -- | -- | 72 | -- | 10 | 6 | 366-370 A |
|
|
| NW 0270 56 121 | 12 | 36 | -- | -- | 100 | -- | 12 | 4 | 371-374 A |
|
|
