END MILLS |
|
2 flutes for steel | Mini | without working depth |
|
1142 2 flutes, plain shank, straight face, 30° right hand helix, PVTi-coated - 3 mm shank-diameter - standard series - without working depth - without chamber |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| Mini | no working depth | standard series | |||||||||||
 |
NW 0142 56 001 | 0.1 | 0.2 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
 |
| NW 0142 56 0015 | 0.15 | 0.3 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 002 | 0.2 | 0.5 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 003 | 0.3 | 1 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 004 | 0.4 | 1 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 005 | 0.5 | 1.5 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 006 | 0.6 | 1.5 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 007 | 0.7 | 2 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 008 | 0.8 | 2 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 009 | 0.9 | 2.5 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 010 | 1 | 3 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 011 | 1.1 | 3 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 012 | 1.2 | 3 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 013 | 1.3 | 3 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 014 | 1.4 | 4 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 015 | 1.5 | 4 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 016 | 1.6 | 4 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 017 | 1.7 | 4 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 018 | 1.8 | 5 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 019 | 1.9 | 5 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0142 56 020 | 2 | 5 | -- | -- | 39 | -- | 3 | 2 | 350-351 A |
|
|
|
END MILLS |
|
2 flutes for steel | without working depth | standard series |
|

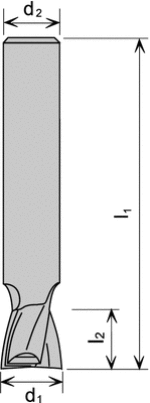

0222 2 flutes, plain shank, straight face, 30° right hand helix, PVTi-coated - standard series - without working depth - with chamber |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | standard series | |||||||||||
 |
NW 0222 56 0041 | 0.4 | 0.6 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
| NW 0222 56 0051 | 0.5 | 0.75 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0222 56 0061 | 0.6 | 0.9 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0222 56 0081 | 0.8 | 1.2 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0222 56 0101 | 1 | 1.5 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0222 56 0121 | 1.2 | 2 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0222 56 0141 | 1.4 | 2 | -- | -- | 50 | -- | 6 | 2 | 352-355 A |
|
|
| NW 0222 56 0152 | 1.5 | 2.5 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0222 56 0151 | 1.5 | 2.5 | -- | -- | 57 | -- | 4 | 2 | 356-360 A |
|
|
| NW 0222 56 020 | 2 | 3 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0222 56 022 | 2 | 3 | -- | -- | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0222 56 0251 | 2.5 | 4 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0222 56 025 | 2.5 | 4 | -- | -- | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0222 56 030 | 3 | 4.5 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0222 56 031 | 3 | 4.5 | -- | -- | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0222 56 041 | 4 | 6 | -- | -- | 50 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0222 56 040 | 4 | 6 | -- | -- | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0222 56 050 | 5 | 7.5 | -- | -- | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0222 56 060 | 6 | 9 | -- | -- | 57 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0222 56 080 | 8 | 12 | -- | -- | 63 | -- | 8 | 2 | 361-365 A |
|
|
| NW 0222 56 100 | 10 | 15 | -- | -- | 72 | -- | 10 | 2 | 366-370 A |
|
|
| NW 0222 56 120 | 12 | 18 | -- | -- | 83 | -- | 12 | 2 | 371-374 A |
|
|
| NW 0222 56 160 | 16 | 24 | -- | -- | 92 | -- | 16 | 2 | 375-378 A |
|
|
| NW 0222 56 180 | 18 | 36 | -- | -- | 92 | -- | 18 | 2 | A |
|
|
| NW 0222 56 200 | 20 | 30 | -- | -- | 104 | -- | 20 | 2 | 379-381 A |
|
|
|
END MILLS |
|
2 flutes for steel | with working depth | long series |
|

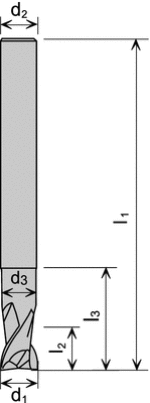

0322 2 flutes, plain shank, straight face, centre cutting, 30° right hand helix, PVTi-coated - long series - with working depth - with chamber |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| with working depth | long series | |||||||||||
 |
NW 0322 56 020 | 2 | 3 | 10 | 1.9 | 75 | -- | 6 | 2 | 356-360 A |
|
| NW 0322 56 030 | 3 | 4.5 | 12 | 2.9 | 75 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0322 56 040 | 4 | 6 | 12 | 3.8 | 75 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0322 56 050 | 5 | 7.5 | 15 | 4.8 | 75 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0322 56 060 | 6 | 9 | 20 | 5.8 | 75 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0322 56 080 | 8 | 12 | 26 | 7.8 | 90 | -- | 8 | 2 | 361-365 A |
|
|
| NW 0322 56 100 | 10 | 15 | 31 | 9.8 | 100 | -- | 10 | 2 | 366-370 A |
|
|
| NW 0322 56 120 | 12 | 18 | 37 | 11.8 | 110 | -- | 12 | 2 | 371-374 A |
|
|
| NW 0322 56 160 | 16 | 24 | 43 | 15.8 | 140 | -- | 16 | 2 | 375-378 A |
|
|
| NW 0322 56 200 | 20 | 30 | 53 | 19.8 | 150 | -- | 20 | 2 | 379-381 A |
|
|
|
END MILLS |
|
2 flutes for steel | extra long series |
|
0132 2 flutes, plain shank, straight face + sharp corner, centre cutting, 30° right hand helix, PVTi-coated - extra long series - also suitable for model making |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| with working depth | extra long series | |||||||||||
 |
NW 0132 56 030 | 3 | 30 | -- | -- | 60 | - | 3 | 2 | 350-351 A |
|
| NW 0132 56 031 | 3 | 30 | -- | -- | 75 | -- | 3 | 2 | 350-351 A |
|
|
| NW 0132 56 040 | 4 | 30 | -- | -- | 60 | - | 4 | 2 | 352-355 A |
|
|
| NW 0132 56 041 | 4 | 30 | -- | -- | 75 | -- | 4 | 2 | 352-355 A |
|
|
| NW 0132 56 050 | 5 | 35 | -- | -- | 70 | - | 5 | 2 | 385 A |
|
|
| NW 0132 56 051 | 5 | 40 | -- | -- | 100 | -- | 5 | 2 | 385 A |
|
|
| NW 0132 56 060 | 6 | 40 | -- | -- | 100 | - | 6 | 2 | 356-360 A |
|
|
| NW 0132 56 061 | 6 | 50 | -- | -- | 150 | -- | 6 | 2 | 356-360 A |
|
|
| NW 0132 56 080 | 8 | 40 | -- | -- | 100 | - | 8 | 2 | 361-365 A |
|
|
| NW 0132 56 081 | 8 | 50 | -- | -- | 150 | -- | 8 | 2 | 361-365 A |
|
|
| NW 0132 56 100 | 10 | 45 | -- | -- | 100 | - | 10 | 2 | 366-370 A |
|
|
| NW 0132 56 101 | 10 | 60 | -- | -- | 150 | -- | 10 | 2 | 366-370 A |
|
|
| NW 0132 56 120 | 12 | 45 | -- | -- | 100 | - | 12 | 2 | 371-374 A |
|
|
| NW 0132 56 121 | 12 | 75 | -- | -- | 150 | -- | 12 | 2 | 371-374 A |
|
|
| NW 0132 56 160 | 16 | 45 | -- | -- | 100 | - | 16 | 2 | 375-378 A |
|
|
| NW 0132 56 161 | 16 | 75 | -- | -- | 150 | -- | 16 | 2 | 375-378 A |
|
|
| NW 0132 46 200 | 20 | 50 | -- | -- | 100 | - | 20 | 2 | 379-381 A |
|
|
| NW 0132 56 200 | 20 | 40 | -- | -- | 100 | -- | 20 | 2 | 379-381 A |
|
|
| NW 0132 56 201 | 20 | 75 | -- | -- | 150 | - | 20 | 2 | 379-381 A |
|
|
