END MILLS |
|
4 flutes for steel | without working depth | standard series |
|

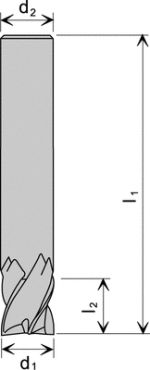

0224 4 flutes, plain shank, straight face, centre cutting, 30° right hand helix, PVTi-coated - standard series - without working depth - with chamfer |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | standard series | |||||||||||
 |
NW 0224 56 015 | 1.5 | 2.5 | -- | -- | 50 | -- | 4 | 4 | 352-355 A |
 |
| NW 0224 56 021 | 2 | 3 | -- | -- | 50 | -- | 4 | 4 | 352-355 A |
|
|
| NW 0224 56 022 | 2 | 3 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0224 56 031 | 3 | 4.5 | -- | -- | 50 | -- | 4 | 4 | 352-355 A |
|
|
| NW 0224 56 030 | 3 | 4.5 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0224 56 040 | 4 | 6 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0224 56 050 | 5 | 7.5 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0224 56 060 | 6 | 9 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0224 56 080 | 8 | 12 | -- | -- | 63 | -- | 8 | 4 | 361-365 A |
|
|
| NW 0224 56 100 | 10 | 15 | -- | -- | 72 | -- | 10 | 4 | 366-370 A |
|
|
| NW 0224 56 120 | 12 | 18 | -- | -- | 83 | -- | 12 | 4 | 371-374 A |
|
|
| NW 0224 56 160 | 16 | 24 | -- | -- | 92 | -- | 16 | 4 | 375-378 A |
|
|
| NW 0224 56 200 | 20 | 30 | -- | -- | 104 | -- | 20 | 4 | 379-381 A |
|
|
|
END MILLS |
|
4 flutes for steel | with working depth | long series |
|

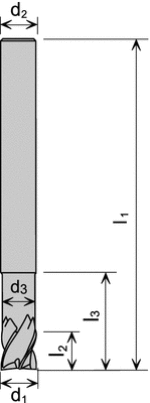

0324 4 flutes, plain shank, straight face, centre cutting, 30° right hand helix, PVTi-coated - long series - with working depth - with chamfer |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| with working depth | long series | |||||||||||
 |
NW 0324 56 020 | 2 | 4 | 10 | 1.9 | 75 | -- | 6 | 4 | 356-360 A |
|
| NW 0324 56 030 | 3 | 4.5 | 12 | 2.9 | 75 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0324 56 040 | 4 | 6 | 12 | 3.8 | 75 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0324 56 050 | 5 | 7.5 | 15 | 4.8 | 75 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0324 56 060 | 6 | 9 | 20 | 5.8 | 75 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0324 56 080 | 8 | 12 | 26 | 7.8 | 90 | -- | 8 | 4 | 361-365 A |
|
|
| NW 0324 56 100 | 10 | 15 | 31 | 9.8 | 100 | -- | 10 | 4 | 366-370 A |
|
|
| NW 0324 56 120 | 12 | 18 | 37 | 11.8 | 110 | -- | 12 | 4 | 371-374 A |
|
|
| NW 0324 56 160 | 16 | 24 | 43 | 15.8 | 140 | -- | 16 | 4 | 375-378 A |
|
|
| NW 0324 56 200 | 20 | 30 | 53 | 19.8 | 150 | -- | 20 | 4 | 379-381 A |
|
|
|
END MILLS |
|
4 flutes for steel | extra long series |
|
0134 4 flutes, plain shank, straight face + sharp corner, centre cutting, 30° right hand helix, PVTi-coated - extra long series - also suitable for model making |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| extra long series | |||||||||||
 |
NW 0134 56 030 | 3 | 30 | -- | -- | 60 | - | 3 | 4 | 350-351 A |
|
| NW 0134 56 031 | 3 | 30 | -- | -- | 75 | -- | 3 | 4 | 350-351 A |
|
|
| NW 0134 56 040 | 4 | 30 | -- | -- | 60 | - | 4 | 4 | 352-355 A |
|
|
| NW 0134 56 041 | 4 | 30 | -- | -- | 75 | -- | 4 | 4 | 352-355 A |
|
|
| NW 0134 56 050 | 5 | 35 | -- | -- | 70 | - | 5 | 4 | 385 A |
|
|
| NW 0134 56 051 | 5 | 40 | -- | -- | 100 | -- | 5 | 4 | 385 A |
|
|
| NW 0134 56 060 | 6 | 40 | -- | -- | 100 | - | 6 | 4 | 356-360 A |
|
|
| NW 0134 56 061 | 6 | 50 | -- | -- | 150 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0134 56 080 | 8 | 40 | -- | -- | 100 | - | 8 | 4 | 361-365 A |
|
|
| NW 0134 56 081 | 8 | 50 | -- | -- | 150 | -- | 8 | 4 | 361-365 A |
|
|
| NW 0134 56 100 | 10 | 45 | -- | -- | 100 | - | 10 | 4 | 366-370 A |
|
|
| NW 0134 56 101 | 10 | 60 | -- | -- | 150 | -- | 10 | 4 | 366-370 A |
|
|
| NW 0134 56 120 | 12 | 45 | -- | -- | 100 | - | 12 | 4 | 371-374 A |
|
|
| NW 0134 56 121 | 12 | 75 | -- | -- | 150 | -- | 12 | 4 | 371-374 A |
|
|
| NW 0134 56 160 | 16 | 45 | -- | -- | 100 | - | 16 | 4 | 375-378 A |
|
|
| NW 0134 56 161 | 16 | 75 | -- | -- | 150 | -- | 16 | 4 | 375-378 A |
|
|
| NW 0134 56 200 | 20 | 40 | -- | -- | 100 | - | 20 | 4 | 379-381 A |
|
|
| NW 0134 56 201 | 20 | 75 | -- | -- | 150 | -- | 20 | 4 | 379-381 A |
|
|
|
END MILLS |
|
3-4 flutes for steel | extreme milling | no working depth | standard series |
|

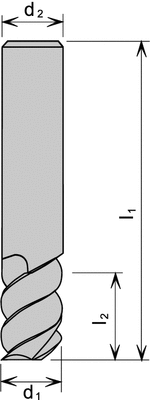

0370 3-4 flutes, plain shank, straight face, centre cutting, 50° right hand helix, PVTi-coated - standard series - also available with clamping flats, from 12 mm diam. onwards obligatory - on demand: available with working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| standard series | |||||||||||
 |
NW 0370 56 020 | 2 | 4 | -- | -- | 57 | - | 6 | 3 | 356-360 A |
|
| NW 0370 56 025 | 2.5 | 5 | -- | -- | 57 | -- | 6 | 3 | 356-360 A |
|
|
| NW 0370 56 030 | 3 | 6 | -- | -- | 57 | - | 6 | 4 | 356-360 A |
|
|
| NW 0370 56 035 | 3.5 | 7 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0370 56 040 | 4 | 8 | -- | -- | 57 | - | 6 | 4 | 356-360 A |
|
|
| NW 0370 56 045 | 4.5 | 9 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0370 56 050 | 5 | 10 | -- | -- | 57 | - | 6 | 4 | 356-360 A |
|
|
| NW 0370 56 060 | 6 | 12 | -- | -- | 57 | -- | 6 | 4 | 356-360 A |
|
|
| NW 0370 56 070 | 7 | 14 | -- | -- | 63 | - | 8 | 4 | 361-365 A |
|
|
| NW 0370 56 080 | 8 | 16 | -- | -- | 62 | -- | 8 | 4 | 361-365 A |
|
|
| NW 0370 56 090 | 9 | 18 | -- | -- | 72 | - | 10 | 4 | 366-370 A |
|
|
| NW 0370 56 100 | 10 | 20 | -- | -- | 72 | -- | 10 | 4 | 366-370 A |
|
|
| NW 0370 56 120 | 12 | 24 | -- | -- | 83 | - | 12 | 4 | 371-374 A |
|
|
| NW 0370 56 160 | 16 | 32 | -- | -- | 92 | -- | 16 | 4 | 375-378 A |
|
|
| NW 0370 56 200 | 20 | 40 | -- | -- | 104 | - | 20 | 4 | 379-381 A |
|
|
|
END MILLS |
|
3-4 flutes for steel | extreme milling | no working depth | long series |
|
0290 3-4 flutes, plain shank, straight face, centre cutting, 50° right hand helix, PVTi-coated - long series - also available with clamping flats, from 12 mm diam. onwards obligatory - on demand: available with working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| long series | |||||||||||
 |
NW 0290 56 061 | 6 | 18 | -- | -- | 75 | - | 6 | 4 | 356-360 A |
|
| NW 0290 56 081 | 8 | 24 | -- | -- | 90 | -- | 8 | 4 | 361-365 A |
|
|
| NW 0290 56 101 | 10 | 30 | -- | -- | 100 | - | 10 | 4 | 366-370 A |
|
|
| NW 0290 56 121 | 12 | 36 | -- | -- | 110 | -- | 12 | 4 | 371-374 A |
|
|
| NW 0290 56 161 | 16 | 48 | -- | -- | 140 | - | 16 | 4 | 375-378 A |
|
|
| NW 0290 56 201 | 20 | 60 | -- | -- | 150 | -- | 20 | 4 | 379-381 A |
|
|
|
END MILLS |
|

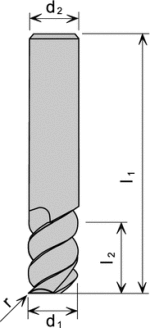

4 flutes for steel | extreme milling | no working depth | standard series | corner radius |
|
0380 4 flutes, plain shank, straight face, centre cutting, 50° right hand helix, PVTi-coated - standard series - also available with clamping flats, from 12 mm diam. onwards obligatory - with corner radius for edge stabilization - on demand: available with working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| standard series | |||||||||||
 |
NW 0380 56 030 | 3 | 6 | -- | -- | 57 | 0.3 | 6 | 4 | 356-360 A |
|
| NW 0380 56 040 | 4 | 8 | -- | -- | 57 | 0.3 | 6 | 4 | 356-360 A |
|
|
| NW 0380 56 050 | 5 | 10 | -- | -- | 57 | 0.3 | 6 | 4 | 356-360 A |
|
|
| NW 0380 56 060 | 6 | 12 | -- | -- | 57 | 0.3 | 6 | 4 | 356-360 A |
|
|
| NW 0380 56 080 | 8 | 16 | -- | -- | 63 | 0.5 | 8 | 4 | 361-365 A |
|
|
| NW 0380 56 090 | 9 | 18 | -- | -- | 72 | 0.5 | 10 | 4 | 366-370 A |
|
|
| NW 0380 56 100 | 10 | 20 | -- | -- | 72 | 0.5 | 10 | 4 | 366-370 A |
|
|
| NW 0380 56 120 | 12 | 24 | -- | -- | 83 | 1 | 12 | 4 | 371-374 A |
|
|
| NW 0380 56 160 | 16 | 32 | -- | -- | 92 | 1 | 16 | 4 | 375-378 A |
|
|
| NW 0380 56 200 | 20 | 40 | -- | -- | 104 | 1 | 20 | 4 | 379-381 A |
|
|
|
END MILLS |
|
4 flutes for steel | extreme milling | no working depth | long series | corner radius |
|
0390 4 flutes, plain shank, straight face, centre cutting, 50° right hand helix, PVTi-coated - long series - also available with clamping flats, from 12 mm diam. onwards obligatory - with corner radius for edge stabilization - on demand: available with working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| long series | |||||||||||
 |
NW 0390 56 061 | 6 | 18 | -- | -- | 75 | 0.3 | 6 | 4 | 356-360 A |
|
| NW 0390 56 081 | 8 | 24 | -- | -- | 90 | 0.5 | 8 | 4 | 361-365 A |
|
|
| NW 0290 56 101 | 10 | 30 | -- | -- | 100 | - | 10 | 4 | 366-370 A |
|
|
| NW 0290 56 121 | 12 | 36 | -- | -- | 110 | -- | 12 | 4 | 371-374 A |
|
|
| NW 0290 56 161 | 16 | 48 | -- | -- | 140 | - | 16 | 4 | 375-378 A |
|
|
| NW 0290 56 201 | 20 | 60 | -- | -- | 150 | -- | 20 | 4 | 379-381 A |
|
|
