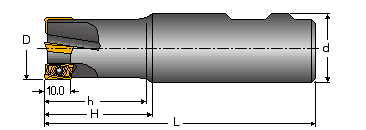

| HM90 E90A (HELI2000) | |
|
|
|
|
HM90 E90A Диапазон диаметра 10-22 мм |
||||||||||
Обозначение |
D |
Z |
H |
h |
L |
a° |
Тип/d |
СОЖ |
Kg |
Пластины |
| HM90 E90A-D10-1-C10 | 10 | 1 | 20 | 13.8 | 80 | 5 | С10 | 0.09 |
HM90 APKW 1003... HM90 APKT 1003... HM90 APCT 1003... HM90 APCR 1003... APKT 1003... APCT 1003... APCR 1003... APKR 1003... |
|
| HM90 E90A-D10-1-C10-C | 10 | 1 | 20 | 13.8 | 80 | 5 | С10 | + | 0.04 | |
| HM90 E90A-D10-1-W16 | 10 | 1 | 20 | 10.6 | 80 | 5 | W16 | 0.11 | ||
| HM90 E90A-D10-1-W16-C | 10 | 1 | 20 | 14.6 | 80 | 5 | W16 | + | 0.09 | |
| HM90 E90A-D10-1-C16-LB | 10 | 1 | 30 | 13.8 | 160 | 5 | C16 | 0.20 | ||
| HM90 E90A-D12-1-C16 | 12 | 1 | 20 | 14.0 | 80 | 32 | C16 | 0.11 | ||
| HM90 E90A-D12-1-C16-C | 12 | 1 | 20 | 14.0 | 80 | 32 | C16 | + | 0.09 | |
| HM90 E90A-D12-1-W16 | 12 | 1 | 20 | 14.0 | 80 | 32 | W16 | 0.11 | ||
| HM90 E90A-D12-1-W16-C | 12 | 1 | 20 | 14.0 | 80 | 32 | W16 | + | 0.10 | |
| HM90 E90A-D12-1-C16-LB | 12 | 1 | 20 | 16.0 | 160 | 32 | C16 | 0.20 | ||
| HM90 E90A-D14-1-C16 | 14 | 1 | 23 | 18.4 | 80 | 7 | C16 | 0.11 | ||
| HM90 E90A-D14-1-C16-C | 14 | 1 | 23 | 18.4 | 80 | 7 | C16 | + | 0.10 | |
| HM90 E90A-D14-1-W16 | 14 | 1 | 23 | 18.4 | 80 | 7 | W16 | 0.11 | ||
| HM90 E90A-D14-1-W16-C | 14 | 1 | 23 | 18.4 | 80 | 7 | W16 | + | 0.10 | |
| HM90 E90A-D16-2-C16 | 16 | 2 | 26 | 25.2 | 90 | 15 | C16 | 0.13 | ||
| HM90 E90A-D16-2-C16-C | 16 | 2 | 26 | 25.2 | 90 | 15 | C16 | + | 0.11 | |
| HM90 E90A-D16-2-W16 | 16 | 2 | 26 | 25.2 | 85 | 15 | W16 | 0.12 | ||
| HM90 E90A-D16-2-W16-C | 16 | 2 | 26 | 25.2 | 85 | 15 | W16 | + | 0.10 | |
| HM90 E90A-D16-2-C15-B | 16 | 2 | 26 | 24.4 | 150 | 15 | C15 | 0.19 | ||
| HM90 E90A-D16-2-C15-B-C | 16 | 2 | 26 | 24.4 | 150 | C15 | + | 0.18 | ||
| HM90 E90A-D16-2-C16-B | 16 | 2 | 40 | 38.2 | 150 | 15 | C16 | 0.22 | ||
| HM90 E90A-D16-2-C16-B-C | 16 | 2 | 40 | 38.2 | 150 | C16 | + | 0.20 | ||
| HM90 E90A-D16-2-C16-LB | 16 | 2 | 40 | 38.1 | 180 | 15 | C16 | 0.28 | ||
| HM90 E90A-D17-2-C16 | 17 | 2 | 28 | 27.0 | 90 | 15 | C16 | |||
| HM90 E90A-D18-2-C16 | 18 | 2 | 26 | -- | 90 | 7.5 | C16 | 0.13 | ||
| HM90 E90A-D18-2-C16-C | 18 | 2 | 26 | -- | 90 | 7.5 | C16 | + | 0.12 | |
| HM90 E90A-D18-2-W20 | 18 | 2 | 30 | 26.4 | 90 | 7.5 | W20 | 0.18 | ||
| HM90 E90A-D18-2-W20-C | 18 | 2 | 30 | 26.4 | 90 | 7.5 | W20 | + | 0.17 | |
| HM90 E90A-D20-2-C20 | 20 | 2 | 26 | 25.3 | 110 | 7.5 | C20 | 0.22 | ||
| HM90 E90A-D20-2-C20-C | 20 | 2 | 26 | 25.3 | 110 | 7.5 | C20 | + | 0.20 | |
| HM90 E90A-D20-2-W16 | 20 | 2 | 26.1 | -- | 85 | 7.5 | W20 | 0.13 | ||
| HM90 E90A-D20-2-W16-C | 20 | 2 | 26.1 | -- | 85 | 7.5 | W16 | + | 0.11 | |
| HM90 E90A-D20-2-W20 | 20 | 2 | 26 | 25.0 | 90 | 7.5 | W20 | 0.19 | ||
| HM90 E90A-D20-2-W20-C | 20 | 2 | 26 | 25.0 | 90 | 7.5 | W20 | + | 0.18 | |
| HM90 E90A-D20-2-W20-XL | 20 | 2 | 60 | 59.0 | 130 | 7.5 | W20 | 0.27 | ||
| HM90 E90A-D20-2-C19-B | 20 | 2 | 25 | -- | 160 | 7.5 | C19 | 0.33 | ||
| HM90 E90A-D20-2-C19-B-C | 20 | 2 | 25 | -- | 160 | 7.5 | C19 | + | 0.30 | |
| HM90 E90A-D20-2-C20-B | 20 | 2 | 40 | 38.0 | 160 | 7.5 | C20 | 0.36 | ||
| HM90 E90A-D20-2-C20-B-C | 20 | 2 | 40 | 38.0 | 160 | 7.5 | C20 | + | 0.32 | |
| HM90 E90A-D20-2-C20-LB | 20 | 2 | 40 | 38.0 | 200 | 7.5 | C20 | 0.46 | ||
| HM90 E90A-D20-3-C20 | 20 | 3 | 26 | 25.0 | 110 | 7.5 | C20 | 0.24 | ||
| HM90 E90A-D20-3-C20-C | 20 | 3 | 26 | 25.0 | 110 | 7.5 | C20 | + | 0.20 | |
| HM90 E90A-D20-3-W16 | 20 | 3 | 26.1 | -- | 85 | 7.5 | W16 | 0.13 | ||
| HM90 E90A-D20-3-W16-C | 20 | 3 | 26.1 | -- | 85 | 7.5 | W16 | + | 0.18 | |
| HM90 E90A-D20-3-W20 | 20 | 3 | 26.1 | 25.0 | 90 | 7.5 | W20 | 0.19 | ||
| HM90 E90A-D20-3-W20-C | 20 | 3 | 26.1 | 25.0 | 90 | 7.5 | W20 | + | 0.18 | |
| HM90 E90A-D21-3-C20 | 21 | 3 | 26 | 25.0 | 115 | 7.5 | C20 | |||
| HM90 E90A-D22-3-C20 | 22 | 3 | 26 | -- | 115 | 7.5 | C20 | 0.26 | ||
| HM90 E90A-D22-3-C20-C | 22 | 3 | 26 | -- | 115 | 7.5 | C20 | + | 0.25 | |
| HM90 E90A-D22-3-W25 | 22 | 3 | 26 | 21.0 | 95 | 7.5 | W25 | 0.30 | ||
| HM90 E90A-D22-3-W25-C | 22 | 3 | 26 | 21.0 | 95 | 7.5 | W25 | + | 0.30 | |
| HM90 E90A (HELI2000) | |
|
|
|
|
HM90 E90A Диапазон диаметра 25-32 мм |
||||||||||
Обозначение |
D |
Z |
H |
h |
L |
a° |
Тип/d |
СОЖ |
Kg |
Пластины |
| HM90 E90A-D25-2-C25 | 25 | 2 | 26.1 | 25 | 120 | 5 | C25 | 0.43 |
HM90 APKW 1003... HM90 APKT 1003... HM90 APCT 1003... HM90 APCR 1003... APKT 1003... APCT 1003... APCR 1003... APKR 1003... |
|
| HM90 E90A-D25-2-C25-C | 25 | 2 | 26.1 | 25 | 120 | 5 | C25 | + | 0.40 | |
| HM90 E90A-D25-2-W25 | 25 | 2 | 26.1 | 95 | 140 | 5 | W25 | 0.20 | ||
| HM90 E90A-D25-2-W25-C | 25 | 2 | 26.1 | 25 | 95 | 5 | W25 | + | 0.31 | |
| HM90 E90A-D25-3-C25 | 25 | 3 | 26.1 | 25 | 120 | 5 | C25 | 0.42 | ||
| HM90 E90A-D25-3-C25-C | 25 | 3 | 26.1 | 25 | 120 | 5 | C25 | + | 0.40 | |
| HM90 E90A-D25-3-C25-B | 25 | 3 | 40 | 37 | 200 | 5 | C25 | 0.72 | ||
| HM90 E90A-D25-3-C25-B-C | 25 | 3 | 40 | 37 | 200 | 5 | C25 | + | 0.68 | |
| HM90 E90A-D25-3-W25 | 25 | 3 | 26.1 | 25 | 95 | 5 | W25 | 0.32 | ||
| HM90 E90A-D25-3-W25-C | 25 | 3 | 26.1 | 25 | 95 | 5 | W25 | + | 0.31 | |
| HM90 E90A-D25-3-W25-XL | 25 | 3 | 80 | 79 | 140 | 5 | W25 | 0.35 | ||
| HM90 E90A-D25-3-C24-B | 25 | 3 | 25 | -- | 200 | 5 | C24 | 0.66 | ||
| HM90 E90A-D25-3-C24-C | 25 | 3 | 26.1 | 25 | 120 | 5 | C24 | + | 0.35 | |
| HM90 E90A-D25-3-C24-B-C | 25 | 3 | 25 | 24 | 200 | 5 | C24 | + | 0.64 | |
| HM90 E90A-D25-3-C25-B | 25 | 3 | 40 | 37 | 200 | 5 | C25 | 0.72 | ||
| HM90 E90A-D25-4-C25 | 25 | 4 | 26 | 25 | 120 | 5 | C25 | 0.42 | ||
| HM90 E90A-D25-4-C25-C | 25 | 4 | 26 | 25 | 120 | 5 | C25 | + | 0.39 | |
| HM90 E90A-D25-4-W25 | 25 | 4 | 26.1 | 25 | 95 | 5 | W25 | 0.31 | ||
| HM90 E90A-D25-4-W25-C | 25 | 4 | 26.1 | 25 | 95 | 5 | W25 | + | 0.30 | |
| HM90 E90A-D28-4-C25 | 28 | 4 | 26 | -- | 120 | 2 | C25 | 0.44 | ||
| HM90 E90A-D28-4-C25-C | 28 | 4 | 26 | -- | 120 | 2 | C25 | + | 0.42 | |
| HM90 E90A-D28-4-W25 | 28 | 4 | 26 | -- | 95 | 2 | W25 | 0.33 | ||
| HM90 E90A-D28-4-W25-C | 28 | 4 | 26 | -- | 95 | 2 | W25 | + | 0.32 | |
| HM90 E90A-D30-4-C32 | 30 | 4 | 40 | 35.4 | 130 | 2 | C32 | 0.72 | ||
| HM90 E90A-D30-4-C32-C | 30 | 4 | 40 | 35.4 | 130 | 2 | C32 | + | 0.71 | |
| HM90 E90A-D30-4-W25 | 30 | 4 | 30 | -- | 95 | 2 | W25 | 0.35 | ||
| HM90 E90A-D30-4-W25-C | 30 | 4 | 30 | -- | 95 | 2 | W25 | + | 0.33 | |
| HM90 E90A-D32-3-C31-B | 32 | 3 | 25 | 24.8 | 250 | 3 | C31 | 1.14 | ||
| HM90 E90A-D32-3-C32 | 32 | 3 | 30 | 28.5 | 130 | 3 | C32 | 0.76 | ||
| HM90 E90A-D32-3-C32-C | 32 | 3 | 30 | 28.5 | 130 | 3 | C32 | + | 0.74 | |
| HM90 E90A-D32-3-W25 | 32 | 3 | 30 | -- | 95 | 3 | W25 | 0.38 | ||
| HM90 E90A-D32-3-W25-C | 32 | 3 | 30 | -- | 95 | 3 | W25 | + | 0.36 | |
| HM90 E90A-D32-3-W32 | 32 | 3 | 30 | 28.5 | 110 | 3 | W32 | 0.50 | ||
| HM90 E90A-D32-3-W32-C | 32 | 3 | 30 | 28.5 | 110 | 3 | W32 | + | 0.60 | |
| HM90 E90A-D32-4-C32 | 32 | 4 | 30 | 28.5 | 130 | 3 | C32 | 0.75 | ||
| HM90 E90A-D32-4-C32-C | 32 | 4 | 30 | 28.5 | 130 | 3 | C32 | + | 0.73 | |
| HM90 E90A-D32-4-C32-B | 32 | 4 | 40 | 37.2 | 200 | C32 | 1.19 | |||
| HM90 E90A-D32-4-C32-LB | 32 | 4 | 40 | 37.2 | 250 | 3 | C32 | 1.50 | ||
| HM90 E90A-D32-4-W25 | 32 | 4 | 30 | -- | 95 | 3 | W25 | 0.37 | ||
| HM90 E90A-D32-4-W25-C | 32 | 4 | 30 | -- | 95 | 3 | W25 | + | 0.36 | |
| HM90 E90A-D32-4-W32 | 32 | 4 | 30 | 28.5 | 110 | 3 | W32 | 0.62 | ||
| HM90 E90A-D32-4-W32-C | 32 | 4 | 30 | 28.5 | 110 | 3 | W32 | + | 0.59 | |
| HM90 E90A-D32-4-W32-XL | 32 | 4 | 100 | 28.5 | 160 | 3 | W32 | 0.87 | ||
| HM90 E90A (HELI2000) | |
|
|
|
|
HM90 E90A Диапазон диаметра 32-40 мм |
||||||||||
Обозначение |
D |
Z |
H |
h |
L |
a° |
Тип/d |
СОЖ |
Kg |
Пластины |
| HM90 E90A-D32-5-C32 | 32 | 5 | 30 | 28.5 | 130 | 3 | C32 | 0.75 |
HM90 APKW 1003... HM90 APKT 1003... HM90 APCT 1003... HM90 APCR 1003... APKT 1003... APCT 1003... APCR 1003... APKR 1003... |
|
| HM90 E90A-D32-5-C32-C | 32 | 5 | 30 | 28.5 | 130 | 3 | C32 | + | 0.73 | |
| HM90 E90A-D32-5-W25 | 32 | 5 | 30 | -- | 95 | 3 | W25 | 0.37 | ||
| HM90 E90A-D32-5-W25-C | 32 | 5 | 30 | -- | 95 | 3 | W25 | + | 0.35 | |
| HM90 E90A-D32-5-W32 | 32 | 5 | 30 | 28.5 | 110 | 3 | W32 | 0.62 | ||
| HM90 E90A-D32-5-W32-C | 32 | 5 | 30 | 28.5 | 110 | 3 | W32 | + | 0.60 | |
| HM90 E90A-D40-3-C32 | 40 | 3 | 30 | -- | 130 | 2.7 | C32 | 1.19 | ||
| HM90 E90A-D40-3-C32-C | 40 | 3 | 30 | -- | 130 | 2.7 | C32 | 0.83 | ||
| HM90 E90A-D40-3-W32 | 40 | 3 | 30 | -- | 110 | 2.7 | W32 | 0.72 | ||
| HM90 E90A-D40-3-W32-C | 40 | 3 | 30 | -- | 110 | 2.7 | W32 | + | 0.70 | |
| HM90 E90A-D40-5-C32 | 40 | 5 | 30 | -- | 130 | 2.7 | C32 | 0.84 | ||
| HM90 E90A-D40-5-C32-C | 40 | 5 | 30 | -- | 130 | 2.7 | C32 | + | 0.81 | |
| HM90 E90A-D40-5-W32 | 40 | 5 | 30 | -- | 110 | 2.7 | W32 | 0.70 | ||
| HM90 E90A-D40-5-W32-C | 40 | 5 | 30 | 29 | 110 | 2.7 | W32 | + | 0.68 | |
| HM90 E90A-D40-5-C40-B | 40 | 5 | 40 | 36.3 | 250 | C40 | 0.68 | |||
| HM90 E90A-D40-5-W40-XL | 40 | 5 | 125 | 123 | 200 | 2.7 | W40 | 1.00 | ||
| HM90 E90A-D40-6-C32 | 40 | 6 | 30 | -- | 130 | 2.7 | C32 | 0.84 | ||
| HM90 E90A-D40-6-C32-C | 40 | 6 | 30 | -- | 130 | 2.7 | C32 | + | 0.81 | |
| HM90 E90A-D40-6-W32 | 40 | 6 | 30 | -- | 110 | 2.7 | W32 | 0.70 | ||
| HM90 E90A-D40-6-W32-C | 40 | 6 | 30 | -- | 110 | 2.7 | W32 | + | 0.68 | |

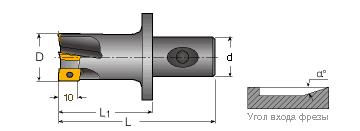

| HM90 E90A-CF4 (HELI2000 -CLICKFIT) | |
|
|
|
HM90 E90A-CF4 Диапазон диаметров 25-40 мм |
|||||||||
Обозначение |
D |
Z |
L |
L1 |
ød |
a° |
СОЖ |
Kg |
Пластины |
| HM90 E90A D25-3-CF4 | 25 | 3 | 90 | 40 | CF4 | 5.0 | + | 0.34 |
HM90 APKT 1003... HM90 APCT 1003... HM90 APCR 1003... APKT 1003... APCT 1003... APCR 1003... |
| HM90 E90A D32-4-CF4 | 32 | 4 | 95 | 45 | CF4 | 3.0 | + | 0.44 | |
| HM90 E90A D40-5-CF4 | 40 | 5 | 95 | 45 | CF4 | 2.7 | + | 0.60 | |

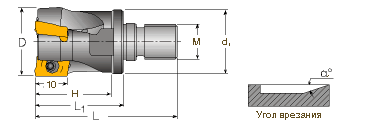

| HM90 E90A-M (HELI2000 -FLEXFIT) | |
|
|
|
HM90 E90A-M Диапазон диаметров 10-32 мм |
|||||||||||
Обозначение |
D |
Z |
d1 |
M |
H |
L1 |
L |
a° |
СОЖ |
Kg |
Пластина |
| HM90 E90A-D10-1-M06 | 10 | 1 | 10.0 | M06 | 25.0 | 25 | 39.5 | 5.0 | 0.03 |
HM90 APKT 1003... HM90 APCT 1003... HM90 APCR 1003... APKT 1003... APCT 1003... APCR 1003... APKR 1003... |
|
| HM90 E90A-D12-1-M08 | 12 | 1 | 13.0 | M08 | 17.5 | 28 | 45.5 | 32.0 | + | 0.04 | |
| HM90 E90A-D16-2-M10 | 16 | 2 | 18.0 | M10 | 26.0 | 32 | 52.0 | 15.0 | + | 0.06 | |
| HM90 E90A-D20-2-M10 | 20 | 2 | 18.0 | M10 | 30.0 | 30 | 50.0 | 7.5 | + | 0.08 | |
| HM90 E90A-D20-2-M12 | 20 | 2 | 21.0 | M12 | 24.0 | 30 | 52.0 | 7.5 | + | 0.08 | |
| HM90 E90A-D20-3-M10 | 20 | 3 | 18.0 | M10 | 30.0 | 30 | 50.0 | 7.5 | + | 0.08 | |
| HM90 E90A-D20-3-M12 | 20 | 3 | 21.0 | M12 | 24.0 | 30 | 52.0 | 7.5 | + | 0.08 | |
| HM90 E90A-D25-3-M12 | 25 | 3 | 21.0 | M12 | 35.0 | 35 | 57.0 | 5.0 | + | 0.09 | |
| HM90 E90A-D25-3-M16 | 25 | 3 | 29.0 | M16 | 29.0 | 35 | 60.0 | 5.0 | + | 0.14 | |
| HM90 E90A-D25-4-M12 | 25 | 4 | 21.0 | M12 | 35.0 | 35 | 57.0 | 5.0 | + | 0.12 | |
| HM90 E90A-D25-4-M16 | 25 | 4 | 29.0 | M16 | 29.0 | 35 | 60.0 | 5.0 | + | 0.12 | |
| HM90 E90A-D32-4-M16 | 32 | 4 | 29.0 | M16 | 35.0 | 35 | 60.0 | 3.0 | + | 0.21 | |
