FOR SHELL-TYPE MILLING CUTTER BODIES |
|
for bore Ø 40 mm |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - SK and BT arbors with coolant supply through collar on request - other dimensions on request - extent of supply includes screwed-in drive blocks Attention: arbors for direct spindle mounting can only be used together with a centering arbor. |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |

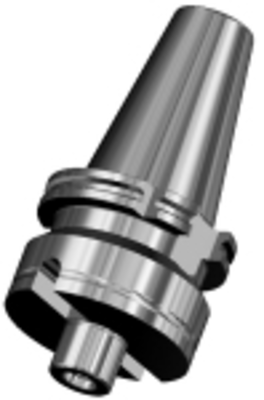

| Int. taper shank 50 DIN 69 871 AD | |||||||||||
 |
50 40 710 Z | Ø 40 | 50 | 100 | 78 | SK 50 | DIN 69871 AD |
-- | A, B, C, D |
 |
|
| 100 40 710 Z | Ø 40 | 100 | 100 | 78 | SK 50 | DIN 69871 AD |
-- | A, B, C, D |
|
||
 M6x16 A > Page 402 |
 NUTEN16x16 B > Page 406 |
 KBSK50-69872A C > Page 406 |
 KBSK50-69872B D > Page 406 |
||||||||
| Hollow taper shanks 100 A | |||||||||||
 |
50 40 A100 | Ø 40 | 50 | 100 | 88 | HSK 100 |
form A | -- | -- | A, B, C, D |
|
|
M5x16 A > Page 402 |
NUTEN14x14 B > Page 406 |
 KMR-100A C > Page 406 |
 SCHLUESSELHSK100 D > Page 406 |
||||||||
| for direct spindle mounting | |||||||||||
 |
100 40 740 | Ø 40 | 100 | 100 | 124 | Ø 50 | direct mounting |
-- | 38 | 395 A, B |
 |
| 150 40 740 | Ø 40 | 150 | 100 | 124 | Ø 50 | direct mounting |
-- | 38 | 395 A, B |
|
|
| 200 40 740 | Ø 40 | 200 | 100 | 124 | Ø 50 | direct mounting |
-- | 38 | 395 A, B |
|
|
|
M6x16 A > Page 402 |
NUTEN16x16 B > Page 406 |
||||||||||
