FOR SHELL-TYPE MILLING CUTTER BODIES |
|
for bore Ø 22 mm |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - SK and BT arbors with coolant supply through collar on request - other dimensions on request - extent of supply includes screwed-in drive blocks Attention: arbors for direct spindle mounting can only be used together with a centering arbor. |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |

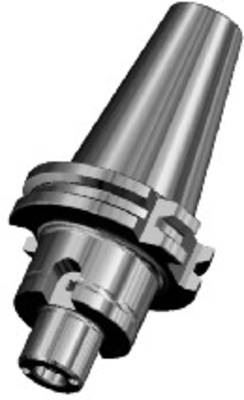

| Int. taper 40 DIN 69 871 AD | |||||||||||
 |
25 22 750 | Ø 22 | 25 | 40 | 40 | SK 40 | DIN 69871 AD |
-- | -- | A, B, C, D |
 |
| 50 22 750 | Ø 22 | 50 | 40 | 48 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 75 22 750 | Ø 22 | 75 | 48 | 48 | SK 40 | DIN 69871 AD |
-- | -- | A, B, C, D |
|
|
| 100 22 750 | Ø 22 | 100 | 48 | 48 | SK 40 | DIN 69871 AD |
-- | -- | A, B, C, D |
|
|
| 150 22 750 | Ø 22 | 150 | 48 | 48 | SK 40 | DIN 69871 AD |
-- | -- | A, B, C, D |
|
|
| 200 22 750 | Ø 22 | 200 | 48 | 48 | SK 40 | DIN 69871 AD |
-- | -- | A, B, C, D |
|
|
 M4x10 A > Page 402 |
 NUTEN10x8 B > Page 406 |
 KBSK40-69872A C > Page 406 |
 KBSK40-69872B D > Page 406 |
||||||||

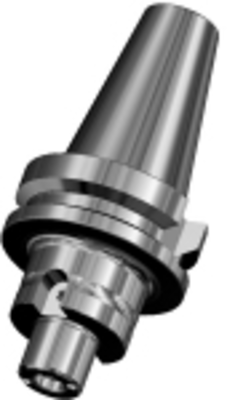

| Int. taper 40 MAS BT | |||||||||||
 |
25 22 754 | Ø 22 | 25 | 40 | 40 | BT 40 | JIS B 6339 AD |
-- | 7.8 | A, B |
|
| 50 22 754 | Ø 22 | 50 | 40 | 40 | BT 40 | JIS B 6339 AD |
-- | 7.8 | A, B |
|
|
| 75 22 75Z | Ø 22 | 75 | 48 | 48 | BT 40 | JIS B 6339 AD |
-- | 7.8 | A, B |
|
|
| 100 22 754 | Ø 22 | 100 | 48 | 48 | BT 40 | JIS B 6339 AD |
-- | 7.8 | A, B |
|
|
| 150 22 75Z | Ø 22 | 150 | 48 | 48 | BT 40 | JIS B 6339 AD |
-- | 7.8 | A, B |
|
|
| 200 22 754 | Ø 22 | 200 | 48 | 48 | BT 40 | JIS B 6339 AD |
-- | 7.8 | A, B |
|
|
|
M4x10 A > Page 402 |
NUTEN10x8 B > Page 406 |
||||||||||
| Int. taper 50 DIN 69 871 AD | |||||||||||
 |
50 22 710 | Ø 22 | 50 | 40 | 40 | SK 50 | DIN 69871 AD |
-- | -- | A, B, C, D |
|
| 100 22 710.01 | Ø 22 | 100 | 48 | 50 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 150 22 710 | Ø 22 | 150 | 48 | 62 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 200 22 710 | Ø 22 | 200 | 48 | 78 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 250 22 710 | Ø 22 | 250 | 48 | 78 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
|
M4x10 A > Page 402 |
NUTEN10x8 B > Page 406 |
KBSK50-69872A C > Page 406 |
KBSK50-69872B D > Page 406 |
||||||||
| Hollow taper shank 63 A | |||||||||||
 |
25 22 A63 | Ø 22 | 25 | 40 | 40 | HSK 63 |
form A | -- | -- | A, B, C, D |
|
| 50 22 A63 | Ø 22 | 50 | 40 | 40 | HSK 63 |
form A | -- | -- | A, B, C, D |
|
|
| 75 22 A63.01 | Ø 22 | 75 | 48 | 50 | HSK 63 |
form A | -- | 7.8 | A, B, C, D |
|
|
| 100 22 A63.01 | Ø 22 | 100 | 48 | 50 | HSK 63 |
form A | -- | 7.8 | A, B, C, D |
|
|
| 150 22 A63 | Ø 22 | 150 | 48 | 48 | HSK 63 |
form A | -- | 7.8 | A, B, C, D |
|
|
|
M4x10 A > Page 402 |
NUTEN10x8 B > Page 406 |
 KMR-63A C > Page 406 |
 SCHLUESSELHSK63 D > Page 406 |
||||||||
| Hollow taper shank 100 A | |||||||||||
 |
50 22 A100 | Ø 22 | 50 | 40 | 40 | HSK 100 |
form A | -- | -- | A, B, C, D |
|
| 75 22 A100 | Ø 22 | 75 | 48 | 48 | HSK 100 |
form A | -- | -- | A, B, C, D |
|
|
| 100 22 A100 | Ø 22 | 100 | 48 | 50 | HSK 100 |
form A | -- | 7.8 | A, B, C, D |
|
|
| 150 22 A100 | Ø 22 | 150 | 48 | 50 | HSK 100 |
form A | -- | 7.8 | A, B, C, D |
|
|
| 200 22 A100 | Ø 22 | 200 | 48 | 50 | HSK 100 |
form A | -- | 7.8 | A, B, C, D |
|
|
|
M4x10 A > Page 402 |
NUTEN10x8 B > Page 406 |
KMR-100A C > Page 406 |
SCHLUESSELHSK100 D > Page 406 |
||||||||
| for direct spindle mounting | |||||||||||
 |
200 22 740 | Ø 22 | 200 | 48 | 78 | Ø 50 | direct mounting |
-- | 38 | 395 A, B |
 |
| 250 22 740 | Ø 22 | 250 | 48 | 82 | Ø 50 | direct mounting |
-- | 38 | 395 A, B |
|
|
| 300 22 740 | Ø 22 | 300 | 48 | 86 | Ø 50 | direct mounting |
-- | 38 | 395 A, B |
|
|
| 350 22 740 | Ø 22 | 350 | 48 | 90 | Ø 50 | direct mounting |
-- | 38 | 395 A, B |
|
|
| 400 22 740 | Ø 22 | 400 | 48 | 95 | Ø 50 | direct mounting |
-- | 38 | 395 A, B |
|
|
|
M4x10 A > Page 402 |
NUTEN10x8 B > Page 406 |
||||||||||
| Shell-type extensions | |||||||||||
 |
50 22 782 | Ø 22 | 50 | 48 | 48 | Ø 22 | -- | -- | -- | 342-344 A, B, C |
|
| 100 22 782 | Ø 22 | 100 | 48 | 48 | Ø 22 | -- | -- | -- | 342-344 A, B, C |
|
|
|
M4x10 A > Page 402 |
M6x55 B > Page 402 |
NUTEN10x8 C > Page 406 |
|||||||||
