FOR SHELL-TYPE MILLING CUTTER BODIES |
|
for bore Ø 16 mm |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grades, see features - SK and BT arbors with coolant supply through collar on request - other dimensions on request - extent of supply includes screwed-in drive blocks |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |

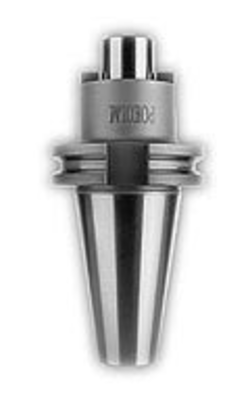

| Int. taper 40 DIN 69 871 AD | |||||||||||
 |
25 16 750 Z | Ø 16 | 25 | 38 | 40 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
 |
| 50 16 750 Z | Ø 16 | 50 | 38 | 42 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 75 16 750 Z | Ø 16 | 75 | 38 | 45 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 100 16 750 Z | Ø 16 | 100 | 38 | 48 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 125 16 750 Z | Ø 16 | 125 | 38 | 50 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 150 16 750 Z | Ø 16 | 150 | 38 | 50 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 175 16 750 Z | Ø 16 | 175 | 38 | 50 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 200 16 750 Z | Ø 16 | 200 | 38 | 50 | SK 40 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
 M3x10 A > Page 402 |
 NUTEN8x8 B > Page 406 |
 KBSK40-69872A C > Page 406 |
 KBSK40-69872B D > Page 406 |
||||||||

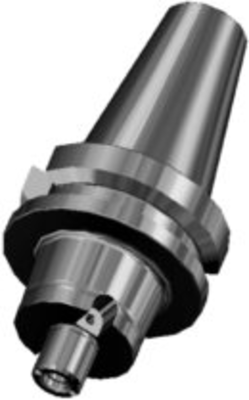

| Int. taper 40 MAS BT | |||||||||||
 |
25 16 754 Z | Ø 16 | 25 | 38 | 40 | BT 40 | JIS B 6339 AD |
-- | 7.8 | A, B |
|
| 50 16 754 Z | Ø 16 | 50 | 38 | 42 | BT 40 | JIS B 6339 AD |
-- | 7.8 | A, B |
|
|
| 75 16 754 Z | Ø 16 | 75 | 38 | 45 | BT 40 | JIS B 6339 AD |
-- | 7.8 | A, B |
|
|
| 100 16 754 Z | Ø 16 | 100 | 38 | 48 | BT 40 | JIS B 6339 AD |
-- | 7.8 | A, B |
|
|
|
M3x10 A > Page 402 |
NUTEN8x8 B > Page 406 |
||||||||||

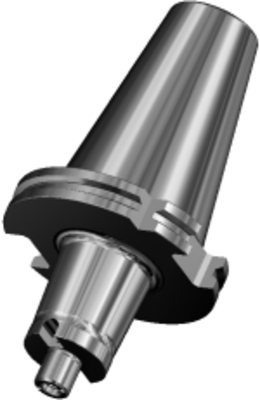

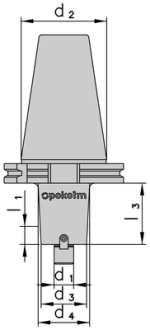

| Int. taper 50 DIN 69 871 AD | |||||||||||
 |
50 16 710 Z | Ø 16 | 50 | 38 | 42 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
| 100 16 710 Z | Ø 16 | 100 | 38 | 50 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 150 16 710 Z | Ø 16 | 150 | 38 | 50 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 200 16 710 Z | Ø 16 | 200 | 38 | 50 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 250 16 710 Z | Ø 16 | 250 | 38 | 50 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
| 300 16 710 Z | Ø 16 | 300 | 38 | 50 | SK 50 | DIN 69871 AD |
-- | 7.8 | A, B, C, D |
|
|
|
M3x10 A > Page 402 |
NUTEN8x8 B > Page 406 |
KBSK50-69872A C > Page 406 |
KBSK50-69872B D > Page 406 |
||||||||

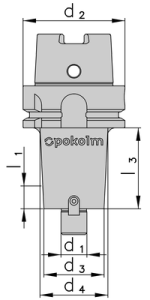

| Hollow taper shank 63 A | |||||||||||
 |
25 16 A63 Z | Ø 16 | 25 | 38 | 40 | HSK 63 |
form A | -- | 7.8 | A, B, C, D |
|
| 50 16 A63 Z | Ø 16 | 50 | 38 | 42 | HSK 63 |
form A | -- | 7.8 | A, B, C, D |
|
|
| 75 16 A63 Z | Ø 16 | 75 | 38 | 45 | HSK 63 |
form A | -- | 7.8 | A, B, C, D |
|
|
| 100 16 A63 Z | Ø 16 | 100 | 38 | 50 | HSK 63 |
form A | -- | 7.8 | A, B, C, D |
|
|
| 125 16 A63 Z | Ø 16 | 125 | 38 | 50 | HSK 63 |
form A | -- | 7.8 | A, B, C, D |
|
|
| 150 16 A63 Z | Ø 16 | 150 | 38 | 50 | HSK 63 |
form A | -- | 7.8 | A, B, C, D |
|
|
| 175 16 A63 Z | Ø 16 | 175 | 38 | 50 | HSK 63 |
form A | -- | 7.8 | A, B, C, D |
|
|
| 200 16 A63 Z | Ø 16 | 200 | 38 | 50 | HSK 63 |
form A | -- | 7.8 | A, B, C, D |
|
|
|
M3x10 A > Page 402 |
NUTEN8x8 B > Page 406 |
 KMR-63A C > Page 406 |
 SCHLUESSELHSK63 D > Page 406 |
||||||||
