1+2 flutes for steel - 4 flutes for steel - for non-ferrous materials + graphite - [Возврат]

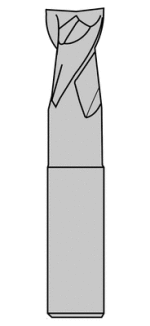

CORNER RADIUS END MILLS
2 flutes for non-ferrous materials | with + without working depth | standard + long series
0432 | 0492
2 flutes, plain shank, cornes radius, centre cutting, 30° right hand helix, PVAS-coated
- standard and long series
- with and without working depth
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with + no WD | standard + long series
NW 0432 47 021  2 2 -- -- 50 0.2 4 2 352-355
A
NW 0432 47 02011  2 2 -- -- 50 0.5 4 2 352-355
A
NW 0432 47 020  2 2 10 1.9 50 0.2 4 2 352-355
A
NW 0432 47 0201  2 2 10 1.9 50 0.5 4 2 352-355
A
NW 0432 47 031  3 3 -- -- 50 0.2 4 2 352-355
A
NW 0432 47 03011  3 3 -- -- 50 0.5 4 2 352-355
A
NW 0432 47 030  3 3 12 2.9 50 0.2 4 2 352-355
A
NW 0432 47 0301  3 3 12 2.9 50 0.5 4 2 352-355
A
NW 0432 47 041  4 4 -- -- 50 0.2 4 2 352-355
A
NW 0432 47 04011  4 4 -- -- 50 0.5 4 2 352-355
A
NW 0432 47 040  4 4 15 3.8 50 0.2 4 2 352-355
A
NW 0432 47 0401  4 4 15 3.8 50 0.5 4 2 352-355
A
NW 0432 47 050  5 5 21 4.8 57 0.2 6 2 356-360
A
NW 0432 47 0501  5 5 21 4.8 57 0.5 6 2 356-360
A
NW 0432 47 060  6 6 21 5.8 57 0.2 6 2 356-360
A
NW 0432 47 0601  6 6 21 5.8 57 0.5 6 2 356-360
A
NW 0432 47 0612  6 6 21 5.8 57 1 6 2 356-360
A
NW 0432 47 0613  6 6 30 5.8 75 1 6 2 356-360
A
NW 0432 47 081  8 8 27 7.8 63 0.5 8 2 361-365
A
NW 0432 47 080  8 8 30 7.8 63 1 8 2 361-365
A
NW 0432 47 0805  8 8 50 7.8 90 1 8 2 361-365
A
NW 0432 47 1011  10 10 32 9.8 72 0.5 10 2 366-370
A
NW 0432 47 101  10 10 32 9.8 72 1 10 2 366-370
A
NW 0432 47 1014  10 10 40 9.8 100 1 10 2 366-370
A
NW 0432 47 1016  10 10 60 9.8 100 1 10 2 366-370
A
NW 0432 47 100  10 10 32 9.8 72 1.5 10 2 366-370
A
NW 0432 47 1201  12 12 38 11.8 83 0.5 12 2 371-374
A
NW 0432 47 120  12 12 38 11.8 83 1.5 12 2 371-374
A
NW 0432 47 1206  12 12 60 11.8 110 1.5 12 2 371-374
A
NW 0432 47 1208  12 12 80 11.8 110 1.5 12 2 371-374
A
NW 0432 47 1615  16 16 50 15.8 92 1.5 16 2 375-378
A
NW 0432 47 1619  16 16 100 15.8 150 1.5 16 2 375-378
A
NW 0432 47 160  16 16 44 15.8 92 1.5 16 2 375-378
A
NW 0432 47 2009  20 20 100 19.8 150 1.5 20 2 379-381
A
NW 0432 47 200  20 20 54 19.8 104 2 20 2 379-381
A
 without WD | long series
NW 0492 47 060  6 20 -- -- 100 1 6 2 356-360
A
NW 0492 47 080  8 25 -- -- 100 1 8 2 361-365
A
NW 0492 47 100  10 25 -- -- 100 1.5 10 2 366-370
A
NW 0492 47 121  12 30 -- -- 150 1.5 12 2 371-374
A

CORNER RADIUS END MILLS

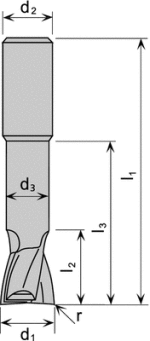

2 flutes for non-ferrous materials + high-temp alloys| with + without working depth | standard series
0462
2 flutes, plain shank, corner radius, centre cutting, 30° right hand helix, PVCN-coated
- standard series
- available with extra-small corner radii
- with and without working depth
- new coatings
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 no working depth | standard series
NW 0462 43 011  1 1 -- -- 50 0.2 4 2 352-355
A
NW 0462 43 010  1 1 10 0.95 50 0.2 4 2 352-355
A
NW 0462 43 0151  1.5 1.5 -- -- 50 0.2 4 2 352-355
A
NW 0462 43 015  1.5 1.5 10 1.4 50 0.2 4 2 352-355
A
NW 0462 43 0121  2 2 -- -- 50 0.2 4 2 352-355
A
NW 0462 43 020  2 2 10 1.9 50 0.2 4 2 352-355
A
NW 0462 43 02105  2 2 -- -- 50 0.5 4 2 352-355
A
NW 0462 43 02005  2 2 10 1.9 50 0.5 4 2 352-355
A
NW 0462 43 031  3 3 -- -- 50 0.2 4 2 352-355
A
NW 0462 43 030  3 3 12 2.9 50 0.2 4 2 352-355
A
NW 0462 43 03105  3 3 -- -- 50 0.5 4 2 352-355
A
NW 0462 43 03005  3 3 12 2.9 50 0.5 4 2 352-355
A
NW 0462 43 041  4 4 -- -- 50 0.2 4 2 352-355
A
NW 0462 43 040  4 4 15 3.8 50 0.2 4 2 352-355
A
NW 0462 43 04105  4 4 -- -- 50 0.5 4 2 352-355
A
NW 0462 43 04005  4 4 15 3.8 50 0.5 4 2 352-355
A
NW 0462 43 051  5 5 -- -- 57 0.2 6 2 356-360
A
NW 0462 43 050  5 5 21 4.8 57 0.2 6 2 356-360
A
NW 0462 43 05105  5 5 -- -- 57 0.5 6 2 356-360
A
NW 0462 43 05005  5 5 21 4.8 57 0.5 6 2 356-360
A
NW 0462 43 06105  6 6 -- -- 57 0.5 6 2 356-360
A
NW 0462 43 06005  6 6 21 5.8 57 0.5 6 2 356-360
A
NW 0462 43 061  6 6 -- -- 57 0.7 6 2 356-360
A
NW 0462 43 060  6 6 21 5.8 57 0.7 6 2 356-360
A
NW 0462 43 06110  6 6 -- -- 57 1 6 2 356-360
A
NW 0462 43 06010  6 6 21 5.8 57 1 6 2 356-360
A
NW 0462 43 0811  8 8 -- -- 63 0.5 8 2 361-365
A
NW 0462 43 0801  8 8 27 7.8 63 0.5 8 2 356-360
A
NW 0462 43 081  8 8 -- -- 63 0.7 8 2 361-365
A
NW 0462 43 080  8 8 27 7.8 63 0.7 8 2 356-360
A
NW 0462 43 0812  8 8 -- -- 63 1 8 2 361-365
A
NW 0462 43 0802  8 8 27 7.8 63 1 8 2 356-360
A
NW 0462 43 101  10 10 -- -- 72 0.7 10 2 366-370
A
NW 0462 43 100  10 10 32 9.8 72 0.7 10 2 366-370
A
NW 0462 43 1102  10 10 -- -- 72 1 10 2 366-370
A
NW 0462 43 1002  10 10 32 9.8 72 1 10 2 366-370
A
NW 0462 43 121  12 12 -- -- 83 0.7 12 2 371-374
A
NW 0462 43 120  12 12 38 11.8 83 0.7 12 2 371-374
A
NW 0462 43 1213  12 12 -- -- 83 1.5 12 2 371-374
A
NW 0462 43 1203  12 12 38 11.8 83 1.5 12 2 371-374
A
NW 0462 43 161  16 16 -- -- 92 0.7 16 2 376-378
A
NW 0462 43 160  16 16 44 15.8 92 0.7 16 2 375-378
A
NW 0462 43 201  20 20 -- -- 104 0.7 20 2 379-381
A
NW 0462 43 200  20 20 54 19.8 104 0.7 20 2 379-381
A

CORNER RADIUS END MILLS
2 flutes for non-ferrous materials | PCD | spherical | with working depth
0600
2 flutes, plain shank, corner radius, centre cutting
- with working depth
- for non-ferrous material
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with working depth | PCD
NW 0600 20 020  2 -- 5 1.9 50 0.2 6 1 356-360
A
NW 0600 20 040  4 -- 15 3.8 50 0.2 6 2 356-360
A
NW 0600 20 050  5 -- 20 4.8 75 0.2 6 2 356-360
A
NW 0600 20 060  6 -- 30 5.8 75 0.2 6 2 356-360
A
NW 0600 20 080  8 -- 35 7.8 100 0.2 8 2 361-365
A
NW 0600 20 100  10 -- 35 9.8 100 0.3 10 2 366-370
A
NW 0600 20 120  12 -- 50 -- 100 0.3 10 2 366-370
A

CORNER RADIUS END MILLS

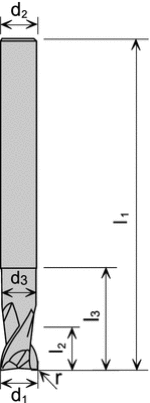

2 flutes for graphite | finishing
0452
2 flutes, plain shank, corner radius, centre cutting, 30° right hand helix, PVDiaG+N-coated
- up to 3 mm diam.: PVDiaG - diamond coating
- over 3 mm diam.: PVDiaN - diamond coating
- standard and long series
- with and without working depth
- Attention: for praphite machining only
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with + without WD | standard + long series
SW 0452 48 00403  0.4 0.6 2.5 0.37 50 0.05 4 2 352-355
A
SW 0452 48 00404  0.4 0.6 5 0.37 50 0.05 4 2 352-355
A
NW 0452 48 0050  0.5 0.8 -- -- 50 0.05 4 2 352-355
A
SW 0452 48 00503  0.5 0.8 3.5 0.45 50 0.05 4 2 352-355
A
NW 0452 48 0051  0.5 0.8 5 0.45 50 0.05 4 2 352-355
A
SW 0452 48 00504  0.5 0.8 7 0.45 50 0.05 4 2 352-355
A
NW 0452 48 0052  0.5 0.8 10 0.45 50 0.05 4 2 352-355
A
SW 0452 48 00603  0.6 0.9 3.5 0.55 50 0.05 4 2 352-355
A
SW 0452 48 00604  0.6 0.9 7 0.55 50 0.05 4 2 352-355
A
NW 0452 48 008  0.8 2 -- -- 39 -- 3 2 350-351
A
SW 0452 48 00803  0.8 1.2 5 0.75 50 0.05 4 2 352-355
A
SW 0452 48 00804  0.8 1.2 10 0.75 50 0.05 4 2 352-355
A
NW 0452 48 010  1 3 -- -- 39 -- 3 2 350-351
A
SW 0452 48 0103  1 1.5 5 0.95 50 0.05 4 2 352-355
A
SW 0452 48 0104  1 1.5 10 0.95 50 0.05 4 2 352-355
A
SW 0452 48 010  1 1.5 -- -- 50 0.1 4 2 352-355
A
NW 0452 48 01000  1 1.5 5 0.95 50 0.1 4 2 352-355
A
NW 0452 48 01010  1 1.5 10 0.95 50 0.1 4 2 352-355
A
NW 0452 48 01011  1 1.5 20 0.95 75 0.1 4 2 352-355
A
NW 0452 48 01020  1 1.5 10 0.95 50 0.2 4 2 352-355
A
NW 0452 48 0102  1 1.5 15 0.95 50 0.2 4 2 352-355
A
SW 0452 48 0152  1.5 2.3 10 1.4 50 0.1 4 2 352-355
A
NW 0452 48 0151  1.5 2.3 -- -- 50 0.15 4 2 352-355
A
NW 0452 48 0152  1.5 2.3 10 1.4 50 0.15 4 2 352-355
A
NW 0452 48 01521  1.5 2.3 15 1.4 50 0.15 4 2 352-355
A
SW 0452 48 01521  1.5 2.3 10 1.4 50 0.2 4 2 352-355
A
NW 0452 48 01520  1.5 2.3 15 1.4 50 0.2 4 2 352-355
A
SW 0452 48 0154  1.5 2.3 25 1.4 75 0.2 4 2 352-355
A
SW 0452 48 0202  2 3 10 1.9 50 0.1 4 2 352-355
A
NW 0452 48 0200  2 3 -- -- 50 0.2 4 2 352-355
A
NW 0452 48 0201  2 3 5 1.9 50 0.2 4 2 352-355
A
NW 0452 48 0202  2 3 10 1.9 50 0.2 4 2 352-355
A
NW 0452 48 0203  2 3 15 1.9 50 0.2 4 2 352-355
A
NW 0452 48 0204  2 3 20 1.9 75 0.2 4 2 352-355
A
NW 0452 48 0205  2 3 25 1.9 75 0.2 4 2 352-355
A
NW 0452 48 021  2 3 10 1.9 50 0.3 4 2 352-355
A
NW 0452 48 0214  2 3 20 1.9 75 0.3 4 2 352-355
A
NW 0452 48 0301  3 4.5 15 2.9 75 0.2 4 2 352-355
A
NW 0452 48 052  5 7.5 45 4.8 100 0.3 5 2 385
A

CORNER RADIUS END MILLS

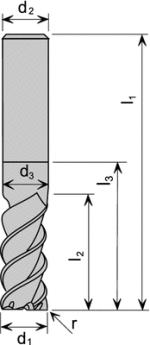

3 flutes for graphite | pre-finishing + roughing | with and without working depth | standard and long series
0453
3 flutes, plain shank, corner radius, centre cutting, 30° and 40° right hand helix
- up to 3 mm diam.: PVDiaG - diamond coating
- over 3 mm diam.: PVDiaN - diamond coating
- standard and long series
- with and without working depth
- Attention: for praphite machining only
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with + without WD | standard + long series
SW 0453 48 0306  3 4.5 10 2.9 50 0.1 4 3 352-355
A
SW 0453 48 03031  3 4.5 15 2.9 50 0.2 4 3 352-355
A
SW 0453 48 03052  3 4.5 25 2.9 75 0.2 4 3 352-355
A
NW 0453 48 0300  3 4.5 -- -- 50 0.3 4 3 352-355
A
NW 0453 48 031  3 30 -- -- 100 0.3 4 3 352-355
A
NW 0453 48 0302  3 4.5 10 2.9 50 0.3 4 3 352-355
A
NW 0453 48 0303  3 4.5 15 2.9 50 0.3 4 3 352-355
A
NW 0453 48 0304  3 4.5 20 2.9 75 0.3 4 3 352-355
A
NW 0453 48 0305  3 4.5 25 2.9 75 0.3 4 3 352-355
A
SW 0453 48 0417  4 6 15 3.8 75 0.2 4 3 352-355
A
SW 0453 48 04053  4 6 25 3.8 75 0.2 4 3 352-355
A
SW 0453 48 04061  4 6 45 3.8 100 0.2 4 3 352-355
A
NW 0453 48 0400  4 6 -- -- 50 0.3 4 3 352-355
A
NW 0453 48 0402  4 6 10 3.8 50 0.3 4 3 352-355
A
NW 0453 48 0403  4 6 15 3.8 50 0.3 4 3 352-355
A
NW 0453 48 0404  4 6 20 3.8 75 0.3 4 3 352-355
A
NW 0453 48 0405  4 6 25 3.8 75 0.3 4 3 352-355
A
NW 0453 48 0406  4 6 45 3.8 100 0.3 4 3 352-355
A
NW 0453 48 04020  4 6 10 3.8 50 0.5 4 3 352-355
A
NW 0453 48 04001  4 6 -- -- 50 1 4 3 352-355
A
NW 0453 48 04021  4 6 10 3.8 50 1 4 3 352-355
A
NW 0453 48 04031  4 6 15 3.8 50 1 4 3 352-355
A
NW 0453 48 04041  4 6 20 3.8 75 1 4 3 352-355
A
NW 0453 48 04051  4 6 25 3.8 75 1 4 3 352-355
A
NW 0453 48 04061  4 6 45 3.8 100 1 4 3 352-355
A
NW 0453 48 050  5 35 -- -- 75 0.3 5 3 385
A
NW 0453 48 051  5 40 -- -- 100 0.3 5 3 385
A
NW 0453 48 0502  5 7.5 10 4.8 57 0.3 5 3 385
A
NW 0453 48 0503  5 7.5 20 4.8 75 0.3 5 3 385
A
NW 0453 48 0504  5 7.5 45 4.8 100 0.3 5 3 385
A
NW 0453 48 067  6 50 -- -- 150 0.2 6 3 356-360
A
SW 0453 48 06052  6 9 25 5.8 75 0.2 6 3 356-360
A
SW 0453 48 06072  6 9 45 5.8 100 0.2 6 3 356-360
A
NW 0453 48 0600  6 9 -- -- 57 0.3 6 3 356-360
A
NW 0453 48 060  6 60 -- -- 150 0.3 6 3 356-360
A
NW 0453 48 0603  6 9 15 5.8 57 0.3 6 3 356-360
A
NW 0453 48 0604  6 9 20 5.8 75 0.3 6 3 356-360
A
NW 0453 48 0605  6 9 25 5.8 75 0.3 6 3 356-360
A
NW 0453 48 0606  6 9 30 5.8 75 0.3 6 3 356-360
A
NW 0453 48 0607  6 9 45 5.8 100 0.3 6 3 356-360
A
NW 0453 48 0608  6 9 60 5.8 150 0.3 6 3 356-360
A
NW 0453 48 06030  6 9 15 5.8 57 0.5 6 3 356-360
A
SW 0453 48 06053  6 9 25 5.8 75 0.7 6 3 356-360
A
SW 0453 48 06073  6 9 45 5.8 100 0.7 6 3 356-360
A
NW 0453 48 06001  6 9 -- -- 57 1 6 3 356-360
A
NW 0453 48 06031  6 9 15 5.8 57 1 6 3 356-360
A
NW 0453 48 06041  6 9 20 5.8 75 1 6 3 356-360
A
NW 0453 48 06051  6 9 25 5.8 75 1 6 3 356-360
A
NW 0453 48 06061  6 9 30 5.8 75 1 6 3 356-360
A
NW 0453 48 06071  6 9 45 5.8 100 1 6 3 356-360
A
NW 0453 48 06081  6 9 60 5.8 150 1 6 3 356-360
A
SW 0453 48 0808  8 12 32 7.8 75 0.3 8 3 361-365
A
NW 0453 48 0800  8 12 -- -- 63 0.5 8 3 361-365
A
NW 0453 48 0801  8 12 20 7.8 63 0.5 8 3 361-365
A
NW 0453 48 0810  8 12 45 7.8 100 0.5 8 3 361-365
A
NW 0453 48 0820  8 12 60 7.8 150 0.5 8 3 361-365
A
SW 0453 48 08081  8 12 32 7.8 100 0.7 8 3 361-365
A
SW 0453 48 0808102  8 12 45 7.8 100 0.7 8 3 361-365
A
NW 0453 48 08001  8 12 -- -- 63 1 8 3 361-365
A
NW 0453 48 083  8 20 -- -- 75 1 8 3 361-365
A
NW 0453 48 08011  8 12 20 7.8 63 1 8 3 361-365
A
NW 0453 48 08101  8 12 45 7.8 100 1 8 3 361-365
A
NW 0453 48 08201  8 12 60 7.8 150 1 8 3 361-365
A
NW 0453 48 1000  10 15 -- -- 72 0.5 10 3 366-370
A
NW 0453 48 1009  10 15 25 9.8 100 0.5 10 3 366-370
A
NW 0453 48 1010  10 15 45 9.8 100 0.5 10 3 366-370
A
NW 0453 48 102  10 15 60 9.8 150 0.5 10 3 366-370
A
SW 0453 48 10091  10 15 25 9.8 100 0.7 10 3 366-370
A
SW 0453 48 10102  10 15 45 9.8 100 0.7 10 3 366-370
A
NW 0453 48 1001  10 15 -- -- 72 1 10 3 366-370
A
NW 0453 48 1002  10 15 25 9.8 100 1 10 3 366-370
A
NW 0453 48 1011  10 15 45 9.8 100 1 10 3 366-370
A
NW 0453 48 1021  10 15 60 9.8 150 1 10 3 366-370
A
NW 0453 48 1200  12 18 -- -- 83 0.5 12 3 371-374
A
NW 0453 48 1209  12 18 25 11.8 83 0.5 12 3 371-374
A
NW 0453 48 1210  12 18 45 11.8 100 0.5 12 3 371-374
A
NW 0453 48 1220  12 18 60 11.8 150 0.5 12 3 371-374
A
NW 0453 48 12091  12 18 25 11.8 83 0.7 12 3 371-374
A
NW 0453 48 1201  12 18 -- -- 83 1 12 3 371-374
A
NW 0453 48 1202  12 18 25 11.8 83 1 12 3 371-374
A
NW 0453 48 1211  12 18 45 11.8 100 1 12 3 371-374
A
NW 0453 48 1221  12 18 60 11.8 150 1 12 3 371-374
A
NW 0453 48 160  16 24 -- -- 92 1 16 3 375-378
A
NW 0453 48 1610  16 24 45 15.8 100 1 16 3 375-378
A
NW 0453 48 162  16 24 60 15.8 150 1 16 3 375-378
A
NW 0453 48 200  20 30 45 19.8 100 1 20 3 379-381
A
NW 0453 48 201  20 30 60 19.8 150 1 20 3 379-381
A

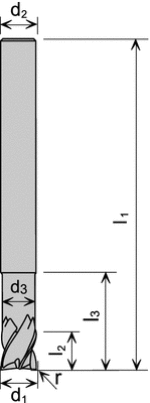

CORNER RADIUS END MILLS
4 flutes for graphite | finishing | with and without working depth | standard and long series
0453
4 flutes, plain shank, corner radius, centre cutting, 30° right hand helix
- up to 3 mm diam.: PVDiaG - diamond coating
- over 3 mm diam.: PVDiaN - diamond coating
- standard and long series
- with and without working depth
- Attention: for praphite machining only
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with + without WD | standard + long series
NW 0454 48 0405  4 6 25 3.8 75 1 4 4 352-355
A
NW 0454 48 04051  4 6 25 -- 75 1 4 4 352-355
A
NW 0454 48 06061  6 9 30 5.8 75 1 6 4 356-360
A
NW 0454 48 06071  6 9 45 5.8 100 1 6 4 356-360
A
NW 0454 48 08011  8 12 20 7.8 63 1 8 4 361-365
A
NW 0454 48 08101  8 12 45 7.8 100 1 8 4 361-365
A
NW 0454 48 08201  8 12 60 7.8 150 1 8 4 361-365
A
NW 0454 48 1001  10 15 -- -- 72 1 10 4 366-370
A
NW 0454 48 1002  10 15 25 9.8 100 1 10 4 366-370
A
NW 0454 48 1202  12 18 25 11.8 83 1 12 4 371-374
A
NW 0454 48 1211  12 18 45 11.8 100 1 12 4 371-374
A
NW 0454 48 1221  12 18 60 11.8 150 1 12 4 371-374
A


1+2 flutes for steel - 4 flutes for steel - for non-ferrous materials + graphite - [Возврат]
