CORNER RADIUS END MILLS

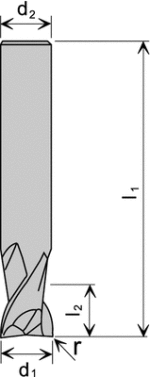

2 flutes for steel | without working depth | standard series
0332
2 flutes, plain shank, cornes radius, centre cutting, 30° right hand helix, PVTi-coated
- standard series
- without working depth
- on demand: available with working depth
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 no working depth | standard series
NW 0332 56 00501  0.5 0.8 -- -- 50 0.1 4 2 352-355
A
NW 0332 56 01001  1 1.5 -- -- 50 0.1 4 2 352-355
A
NW 0332 56 01002  1 1.5 -- -- 50 0.2 4 2 352-355
A
NW 0332 56 01502  1.5 2.3 -- -- 50 0.2 4 2 352-355
A
NW 0332 56 015021  1.5 3 8 1.4 57 0.2 6 2 356-360
A
NW 0332 56 02002  2 3 -- -- 50 0.2 4 2 352-355
A
NW 0332 56 02003  2 3 -- -- 50 0.3 4 2 352-355
A
NW 0332 56 020  2 3 -- -- 50 0.5 4 2 352-355
A
NW 0332 56 03002  3 4.5 -- -- 50 0.2 4 2 352-355
A
NW 0332 56 03003  3 4.5 -- -- 50 0.3 4 2 352-355
A
NW 0332 56 030  3 4.5 -- -- 50 0.5 4 2 352-355
A
NW 0332 56 031  3 4.5 -- -- 50 1 4 2 352-355
A
NW 0332 56 0311  3 4.5 -- -- 57 1 6 2 356-360
A
NW 0332 56 04002  4 6 -- -- 50 0.2 4 2 352-355
A
NW 0332 56 040  4 6 -- -- 50 0.5 4 2 352-355
A
NW 0332 56 041  4 6 -- -- 50 1 4 2 352-355
A
NW 0332 56 040021  4 6 -- -- 57 0.2 6 2 356-360
A
NW 0332 56 0401  4 6 -- -- 57 0.5 6 2 356-360
A
NW 0332 56 0411  4 6 -- -- 57 1 6 2 356-360
A
NW 0332 56 05002  5 7.5 -- -- 57 0.2 6 2 356-360
A
NW 0332 56 050  5 7.5 -- -- 57 0.5 6 2 356-360
A
NW 0332 56 051  5 7.5 -- -- 57 1 6 2 356-360
A
NW 0332 56 06003  6 9 -- -- 57 0.3 6 2 356-360
A
NW 0332 56 060  6 9 -- -- 57 0.5 6 2 356-360
A
NW 0332 56 061  6 9 -- -- 57 1 6 2 356-360
A
NW 0332 56 062  6 9 -- -- 57 1.5 6 2 356-360
A
NW 0332 56 080  8 12 -- -- 63 0.5 8 2 361-365
A
NW 0332 56 081  8 12 -- -- 63 1 8 2 361-365
A
NW 0332 56 082  8 12 -- -- 63 1.5 8 2 361-365
A
NW 0332 56 083  8 12 -- -- 63 2 8 2 361-365
A
NW 0332 56 100  10 15 -- -- 72 0.5 10 2 366-370
A
NW 0332 56 101  10 15 -- -- 72 1 10 2 366-370
A
NW 0332 56 102  10 15 -- -- 72 1.5 10 2 366-370
A
NW 0332 56 103  10 15 -- -- 72 2 10 2 366-370
A
NW 0332 56 120  12 18 -- -- 83 0.5 12 2 371-374
A
NW 0332 56 1206  12 18 -- -- 83 0.6 12 2 371-374
A
NW 0332 56 121  12 18 -- -- 83 1 12 2 371-374
A
NW 0332 56 122  12 18 -- -- 83 1.5 12 2 371-374
A
NW 0332 56 123  12 18 -- -- 83 2 12 2 371-374
A

CORNER RADIUS END MILLS

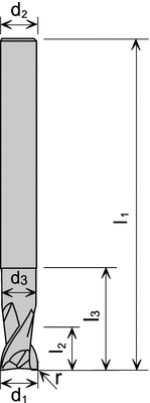

2 flutes for steel | with working depth | long series
0362
2 flutes, plain shank, corner radius, centre cutting, 30° right hand helix, PVTi-coated
- long series
- with working depth
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with working depth | long series
NW 0362 56 020  2 3 10 1.9 75 0.5 6 2 356-360
A
NW 0362 56 030  3 4.5 12 2.9 75 0.5 6 2 356-360
A
NW 0362 56 031  3 4.5 12 2.9 75 1 6 2 356-360
A
NW 0362 56 040  4 6 12 3.8 75 0.5 6 2 356-360
A
NW 0362 56 041  4 6 12 3.8 75 1 6 2 356-360
A
NW 0362 56 050  5 7.5 15 4.8 75 0.5 6 2 356-360
A
NW 0362 56 051  5 7.5 15 4.8 75 1 6 2 356-360
A
NW 0362 56 060  6 9 20 5.8 75 0.5 6 2 356-360
A
NW 0362 56 061  6 9 20 5.8 75 1 6 2 356-360
A
NW 0362 56 0611  6 9 20 5.8 100 1 6 2 356-360
A
NW 0362 56 062  6 9 20 5.8 75 1.5 6 2 356-360
A
NW 0362 56 080  8 12 26 7.8 90 0.5 8 2 361-365
A
NW 0362 56 081  8 12 26 7.8 90 1 8 2 361-365
A
NW 0362 56 082  8 12 26 7.8 90 1.5 8 2 361-365
A
NW 0362 56 083  8 12 26 7.8 90 2 8 2 361-365
A
NW 0362 56 100  10 15 31 9.8 100 0.5 10 2 366-370
A
NW 0362 56 101  10 15 31 9.8 100 1 10 2 366-370
A
NW 0362 56 102  10 15 31 9.8 100 1.5 10 2 366-370
A
NW 0362 56 103  10 15 31 9.8 100 2 10 2 366-370
A
NW 0362 56 120  12 18 37 11.8 110 0.5 12 2 371-374
A
NW 0362 56 121  12 18 37 11.8 110 1 12 2 371-374
A
NW 0362 56 122  12 18 37 11.8 110 1.5 12 2 371-374
A
NW 0362 56 123  12 18 37 11.8 110 2 12 2 371-374
A

CORNER RADIUS END MILLS

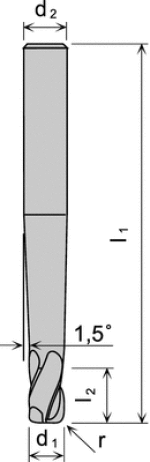

2 flutes for steel | reinforced shank | tapered working depth
0162
2 flutes, plain shank, corner radius, centre cutting, 30° right hand helix, PVTi-coated
- long series
- l3: maximum working depth; 1.5° angle behind cutting edge
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 reinforced shank | tapered working depth
NW 0162 56 020  2 3 25 -- 75 0.2 6 2 356-360
A
NW 0162 56 0206  2 3 39 -- 75 0.2 6 2 356-360
A
NW 0162 56 022  2 3 25 -- 75 0.5 6 2 356-360
A
NW 0162 56 0221  2 3 39 -- 75 0.5 6 2 356-360
A
NW 0162 56 021  2 3 50 -- 100 0.5 6 2 356-360
A
NW 0162 56 03005  3 4.5 25 -- 75 0.5 6 2 356-360
A
NW 0162 56 030  3 4.5 25 -- 75 1 6 2 356-360
A
NW 0162 56 0301  3 4.5 39 -- 75 1 6 2 356-360
A
NW 0162 56 031  3 4.5 50 -- 100 1 6 2 356-360
A
NW 0162 56 04005  4 6 25 -- 75 0.5 6 2 356-360
A
NW 0162 56 040  4 6 25 -- 75 1 6 2 356-360
A
NW 0162 56 041  4 6 44 -- 100 1 6 2 356-360
A
NW 0162 56 050  5 7.5 25 -- 75 1 6 2 356-360
A
NW 0162 56 051  5 7.5 50 -- 90 1 8 2 361-365
A
NW 0162 56 060  6 9 35 -- 75 1 8 2 361-365
A
NW 0162 56 061  6 9 50 -- 100 1 10 2 366-370
A
NW 0162 56 080  8 12 50 -- 100 2 10 2 366-370
A
NW 0162 56 081  8 12 90 -- 150 2 12 2 371-374
A
NW 0162 56 100  10 15 50 -- 110 2 12 2 371-374
A
NW 0162 56 101  10 15 50 -- 150 2 12 2 371-374
A

CORNER RADIUS END MILLS

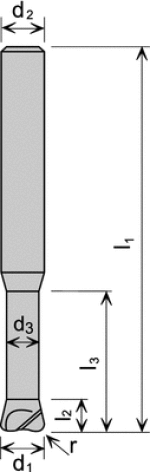

1 + 2 flutes for hardened steel | CBN | spherical | with working depth
0600
1 + 2 flutes, plain shank, corner radius
- with working depth
- for hardened steel over 60 HRC
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with working depth | CBN
NW 0600 10 015  1.5 -- 6 1.4 50 0.2 6 1 356-360
A
NW 0600 10 020  2 -- 8 1.9 50 0.2 6 1 356-360
A
NW 0600 10 030  3 -- 10 2.9 50 0.2 6 1 356-360
A
NW 0600 10 040  4 -- 15 3.8 50 0.2 6 2 356-360
A
NW 0600 10 050  5 -- 20 4.8 75 0.2 6 2 356-360
A
NW 0600 10 060  6 -- 20 5.8 75 0.2 6 2 356-360
A
NW 0600 10 080  8 -- 35 7.8 100 0.2 8 2 361-365
A
NW 0600 10 100  10 -- 35 9.8 100 0.3 10 2 366-370
A
NW 0600 10 120  12 -- 50 -- 100 0.3 10 2 366-370
A
