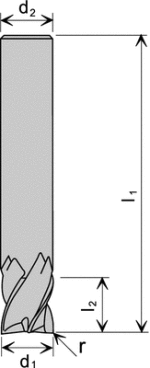

CORNER RADIUS END MILLS
4 flutes for steel | without working depth | standard series
0334
4 flutes, plain shank, cornes radius, centre cutting, 30° right hand helix, PVTi-coated
- standard series
- without working depth
- on demand: available with working depth
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 no working depth | standard series
NW 0334 56 02002  2 3 -- -- 50 0.2 4 4 352-355
A
NW 0334 56 020  2 3 -- -- 50 0.5 4 4 352-355
A
NW 0334 56 03002  3 4.5 -- -- 50 0.2 4 4 352-355
A
NW 0334 56 03003  3 4.5 -- -- 50 0.3 4 4 352-355
A
NW 0334 56 030  3 4.5 -- -- 50 0.5 4 4 352-355
A
NW 0334 56 031  3 4.5 -- -- 50 1 4 4 352-355
A
NW 0334 56 03005  3 4.5 -- -- 57 0.5 6 4 356-360
A
NW 0334 56 04002  4 6 -- -- 50 0.2 4 4 352-355
A
NW 0334 56 040  4 6 -- -- 50 0.5 4 4 352-355
A
NW 0334 56 041  4 6 -- -- 50 1 4 4 352-355
A
NW 0334 56 0401  4 6 -- -- 57 0.5 6 4 356-360
A
NW 0334 56 05002  5 7.5 -- -- 57 0.2 6 4 356-360
A
NW 0334 56 050  5 7.5 -- -- 57 0.5 6 4 356-360
A
NW 0334 56 051  5 7.5 -- -- 57 1 6 4 356-360
A
NW 0334 56 06002  6 9 -- -- 57 0.2 6 4 356-360
A
NW 0334 56 06003  6 9 -- -- 57 0.3 6 4 356-360
A
NW 0334 56 060  6 9 -- -- 57 0.5 6 4 356-360
A
NW 0334 56 061  6 9 -- -- 57 1 6 4 356-360
A
NW 0334 56 062  6 9 -- -- 57 1.5 6 4 356-360
A
NW 0334 56 080  8 12 -- -- 63 0.5 8 4 361-365
A
NW 0334 56 081  8 12 -- -- 63 1 8 4 361-365
A
NW 0334 56 082  8 12 -- -- 63 1.5 8 4 361-365
A
NW 0334 56 083  8 12 -- -- 63 2 8 4 361-365
A
NW 0334 56 100  10 15 -- -- 72 0.5 10 4 366-370
A
NW 0334 56 101  10 15 -- -- 72 1 10 4 366-370
A
NW 0334 56 102  10 15 -- -- 72 1.5 10 4 366-370
A
NW 0334 56 103  10 15 -- -- 72 2 10 4 366-370
A
NW 0334 56 120  12 18 -- -- 83 0.5 12 4 371-374
A
NW 0334 56 121  12 18 -- -- 83 1 12 4 371-374
A
NW 0334 56 122  12 18 -- -- 83 1.5 12 4 371-374
A
NW 0334 56 123  12 18 -- -- 83 2 12 4 371-374
A
NW 0334 56 163  16 24 -- -- 92 2 16 4 375-378
A

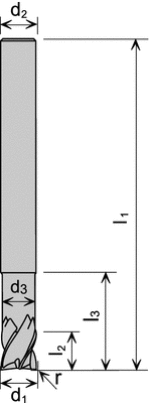

CORNER RADIUS END MILLS
4 flutes for steel | with working depth | long series
0364
4 flutes, plain shank, corner radius, centre cutting, 30° right hand helix, PVTi-coated
- long series
- with working depth
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with working depth | long series
NW 0364 56 020  2 3 10 1.9 75 0.5 6 4 356-360
A
NW 0364 56 030  3 4.5 12 2.9 75 0.5 6 4 356-360
A
NW 0364 56 031  3 4.5 12 2.9 75 1 6 4 356-360
A
NW 0364 56 040  4 6 12 3.8 75 0.5 6 4 356-360
A
NW 0364 56 041  4 6 12 3.8 75 1 6 4 356-360
A
NW 0364 56 050  5 7.5 15 4.8 75 0.5 6 4 356-360
A
NW 0364 56 051  5 7.5 15 4.8 75 1 6 4 356-360
A
NW 0364 56 060  6 9 20 5.8 75 0.5 6 4 356-360
A
NW 0364 56 061  6 9 20 5.8 75 1 6 4 356-360
A
NW 0364 56 062  6 9 20 5.8 75 1.5 6 4 356-360
A
NW 0364 56 080  8 12 26 7.8 90 0.5 8 4 361-365
A
NW 0364 56 081  8 12 26 7.8 90 1 8 4 361-365
A
NW 0364 56 082  8 12 26 7.8 90 1.5 8 4 361-365
A
NW 0364 56 083  8 12 26 7.8 90 2 8 4 361-365
A
NW 0364 56 100  10 15 31 9.8 100 0.5 10 4 366-370
A
NW 0364 56 101  10 15 31 9.8 100 1 10 4 366-370
A
NW 0364 56 102  10 15 31 9.8 100 1.5 10 4 366-370
A
NW 0364 56 103  10 15 31 9.8 100 2 10 4 366-370
A
NW 0364 56 120  12 18 37 11.8 110 0.5 12 4 371-374
A
NW 0364 56 121  12 18 37 11.8 110 1 12 4 371-374
A
NW 0364 56 122  12 18 37 11.8 110 1.5 12 4 371-374
A
NW 0364 56 123  12 18 37 11.8 110 2 12 4 371-374
A

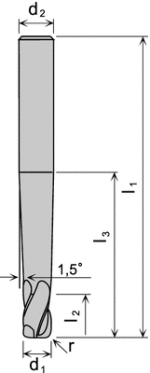

CORNER RADIUS END MILLS
4 flutes for steel | reinforced shank | tapered working depth
0164
2 flutes, plain shank, corner radius, centre cutting, 30° right hand helix, PVTi-coated
- long series
- l3: maximum working depth; 1.5° angle behind cutting edge
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 reinforced shank | tapered working depth
NW 0164 56 030  3 4.5 25 -- 75 1 6 4 356-360
A
NW 0164 56 031  3 4.5 50 -- 100 1 6 4 356-360
A
NW 0164 56 040  4 6 25 -- 75 1 6 4 356-360
A
NW 0164 56 041  4 6 50 -- 100 1 6 4 356-360
A
NW 0164 56 050  5 7.5 25 -- 75 1 6 4 356-360
A
NW 0164 56 051  5 7.5 50 -- 90 1 8 4 361-365
A
NW 0164 56 052  5 6 25 -- 75 1.5 6 4 356-360
A
NW 0164 56 060  6 9 35 -- 75 1 8 4 361-365
A
NW 0164 56 061  6 9 50 -- 100 1 10 4 366-370
A
NW 0164 56 080  8 12 50 -- 100 2 10 4 366-370
A
NW 0164 56 081  8 12 90 -- 150 2 12 4 371-374
A
NW 0164 56 100  10 15 50 -- 110 2 12 4 371-374
A
NW 0164 56 101  10 15 50 -- 150 2 12 4 371-374
A
