BALL NOSE END MILLS |
|
4 flutes for steel | without working depth | standard series |
|

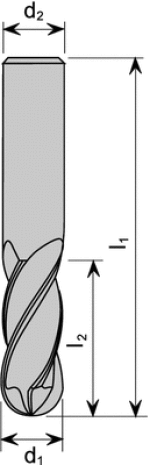

1224 4 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVTi-coated - standard series - without working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | standard series | |||||||||||
 |
NW 1224 56 020 | 2 | 3 | -- | -- | 57 | 1 | 6 | 4 | 356-360 A |
 |
| NW 1224 56 030 | 3 | 4.5 | -- | -- | 57 | 1.5 | 6 | 4 | 356-360 A |
|
|
| NW 1224 56 0301 | 3 | 6 | -- | -- | 57 | 1.5 | 6 | 4 | 356-360 A |
|
|
| NW 1224 56 040 | 4 | 6 | -- | -- | 57 | 2 | 6 | 4 | 356-360 A |
|
|
| NW 1224 56 050 | 5 | 7.5 | -- | -- | 57 | 2.5 | 6 | 4 | 356-360 A |
|
|
| NW 1224 56 060 | 6 | 9 | -- | -- | 57 | 3 | 6 | 4 | 356-360 A |
|
|
| NW 1224 56 0601 | 6 | 12 | -- | -- | 57 | 3 | 6 | 4 | 356-360 A |
|
|
| NW 1224 56 080 | 8 | 12 | -- | -- | 63 | 4 | 8 | 4 | 361-365 A |
|
|
| NW 1224 56 090 | 9 | 13.5 | -- | -- | 72 | 4.5 | 10 | 4 | 366-370 A |
|
|
| NW 1224 56 100 | 10 | 15 | -- | -- | 72 | 5 | 10 | 4 | 366-370 A |
|
|
| NW 1224 56 1001 | 10 | 20 | -- | -- | 72 | 5 | 10 | 4 | 366-370 A |
|
|
| NW 1224 56 120 | 12 | 18 | -- | -- | 83 | 6 | 12 | 4 | 371-374 A |
|
|
| NW 1224 56 1201 | 12 | 24 | -- | -- | 83 | 6 | 12 | 4 | 371-374 A |
|
|
| NW 1224 56 140 | 14 | 21 | -- | -- | 83 | 7 | 14 | 4 | A |
|
|
| NW 1224 56 160 | 16 | 24 | -- | -- | 92 | 8 | 16 | 4 | 375-378 A |
|
|
| NW 1224 56 200 | 20 | 30 | -- | -- | 104 | 10 | 20 | 4 | 379-381 A |
|
|
|
BALL NOSE END MILLS |
|
4 flutes for steel | with working depth | long series |
|

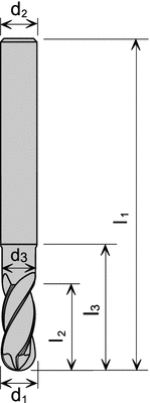

1324 4 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVTi-coated - long series - with working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| with working depth | long series | |||||||||||
 |
NW 1324 56 020 | 2 | 3 | 10 | 1.9 | 75 | 1 | 6 | 4 | 356-360 A |
|
| NW 1324 56 030 | 3 | 4.5 | 12 | 2.9 | 75 | 1.5 | 6 | 4 | 356-360 A |
|
|
| NW 1324 56 040 | 4 | 6 | 12 | 3.8 | 75 | 2 | 6 | 4 | 356-360 A |
|
|
| NW 1324 56 050 | 5 | 7.5 | 15 | 4.8 | 75 | 2.5 | 6 | 4 | 356-360 A |
|
|
| NW 1324 56 060 | 6 | 9 | 20 | 5.8 | 75 | 3 | 6 | 4 | 356-360 A |
|
|
| NW 1324 56 061 | 6 | 9 | 20 | 5.8 | 100 | 3 | 6 | 4 | 356-360 A |
|
|
| NW 1324 56 080 | 8 | 12 | 26 | 7.8 | 90 | 4 | 8 | 4 | 361-365 A |
|
|
| NW 1324 56 100 | 10 | 15 | 31 | 9.8 | 100 | 5 | 10 | 4 | 366-370 A |
|
|
| NW 1324 56 120 | 12 | 18 | 37 | 11.8 | 110 | 6 | 12 | 4 | 371-374 A |
|
|
| NW 1324 56 160 | 16 | 24 | 43 | 15.8 | 110 | 8 | 16 | 4 | 375-378 A |
|
|
| NW 1324 56 200 | 20 | 30 | 53 | 19.8 | 150 | 10 | 20 | 4 | 379-381 A |
|
|
|
BALL NOSE END MILLS |
|
4 flutes for steel | reinforced shank | tapered working depth |
|

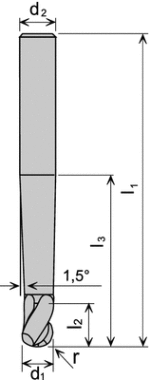

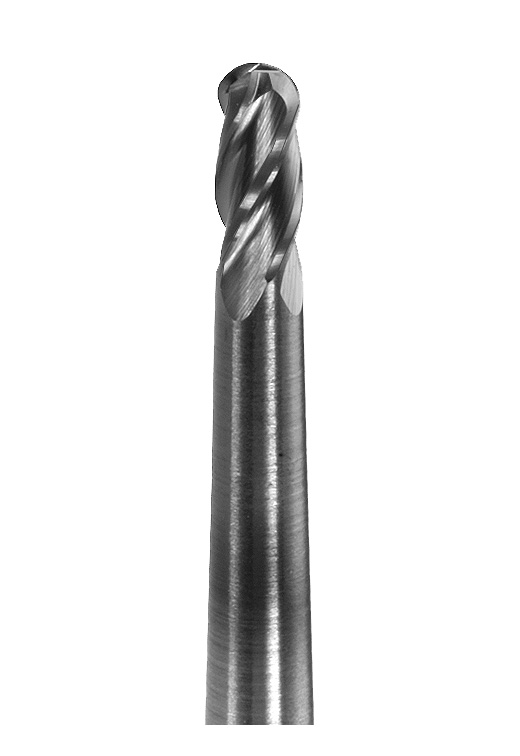

1164 4 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVTi-coated - long series - l3: maximum working depth; 1.5° draft angle behind cutting edge |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| reinforced shank | tapered WD | |||||||||||
 |
NW 1164 56 030 | 3 | 4.5 | 25 | -- | 75 | 1.5 | 6 | 4 | 356-360 A |
|
| NW 1164 56 031 | 3 | 4.5 | 50 | -- | 100 | 1.5 | 6 | 4 | 356-360 A |
|
|
| NW 1164 56 040 | 4 | 6 | 25 | -- | 75 | 2 | 6 | 4 | 356-360 A |
|
|
| NW 1164 56 041 | 4 | 6 | 50 | -- | 100 | 2 | 6 | 4 | 356-360 A |
|
|
| NW 1164 56 050 | 5 | 7.5 | 25 | -- | 75 | 2.5 | 6 | 4 | 356-360 A |
|
|
| NW 1164 56 051 | 5 | 7.5 | 50 | -- | 90 | 2.5 | 8 | 4 | 356-360 A |
|
|
| NW 1164 56 060 | 6 | 9 | 35 | -- | 75 | 3 | 8 | 4 | 361-365 A |
|
|
| NW 1164 56 061 | 6 | 9 | 50 | -- | 100 | 3 | 10 | 4 | 366-370 A |
|
|
| NW 1164 56 080 | 8 | 12 | 50 | -- | 100 | 4 | 10 | 4 | 366-370 A |
|
|
| NW 1164 56 081 | 8 | 12 | 90 | -- | 150 | 4 | 12 | 4 | 371-374 A |
|
|
| NW 1164 56 100 | 10 | 15 | 50 | -- | 110 | 5 | 12 | 4 | 371-374 A |
|
|
| NW 1164 56 101 | 10 | 15 | 50 | -- | 150 | 5 | 12 | 4 | 371-374 A |
|
|
|
BALL NOSE END MILLS |
|
4 flutes for steel | extra long series |
|
1134 4 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVTi-coated - extra long series - also suitable for model making |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| extra long series | |||||||||||
 |
NW 1134 56 030 | 3 | 30 | -- | -- | 60 | 1.5 | 3 | 4 | 350-351 A |
|
| NW 1134 56 031 | 3 | 30 | -- | -- | 100 | 1.5 | 3 | 4 | 350-351 A |
|
|
| NW 1134 46 040 | 4 | 30 | -- | -- | 60 | 2 | 4 | 4 | 352-355 A |
|
|
| NW 1134 56 040 | 4 | 30 | -- | -- | 60 | 2 | 4 | 4 | 352-355 A |
|
|
| NW 1134 56 041 | 4 | 30 | -- | -- | 75 | 2 | 4 | 4 | 352-355 A |
|
|
| NW 1134 46 050 | 5 | 35 | -- | -- | 70 | 2.5 | 5 | 4 | 385 A |
|
|
| NW 1134 56 050 | 5 | 35 | -- | -- | 70 | 2.5 | 5 | 4 | 385 A |
|
|
| NW 1134 56 051 | 5 | 40 | -- | -- | 100 | 2.5 | 5 | 4 | 385 A |
|
|
| NW 1134 46 060 | 6 | 40 | -- | -- | 100 | 3 | 6 | 4 | 356-360 A |
|
|
| NW 1134 56 060 | 6 | 40 | -- | -- | 100 | 3 | 6 | 4 | 356-360 A |
|
|
| NW 1134 56 061 | 6 | 50 | -- | -- | 150 | 3 | 6 | 4 | 356-360 A |
|
|
| NW 1134 56 080 | 8 | 40 | -- | -- | 100 | 4 | 8 | 4 | 361-365 A |
|
|
| NW 1134 56 081 | 8 | 50 | -- | -- | 150 | 4 | 8 | 4 | 361-365 A |
|
|
| NW 1134 46 100 | 10 | 50 | -- | -- | 100 | 5 | 10 | 4 | 366-370 A |
|
|
| NW 1134 56 100 | 10 | 45 | -- | -- | 100 | 5 | 10 | 4 | 366-370 A |
|
|
| NW 1134 56 101 | 10 | 60 | -- | -- | 150 | 5 | 10 | 4 | 366-370 A |
|
|
| NW 1134 56 120 | 12 | 45 | -- | -- | 100 | 6 | 12 | 4 | 371-374 A |
|
|
| NW 1134 46 121 | 12 | 75 | -- | -- | 150 | 6 | 12 | 4 | 371-374 A |
|
|
| NW 1134 56 121 | 12 | 75 | -- | -- | 150 | 6 | 12 | 4 | 371-374 A |
|
|
| NW 1134 46 160 | 16 | 50 | -- | -- | 100 | 8 | 16 | 4 | 375-378 A |
|
|
| NW 1134 56 160 | 16 | 45 | -- | -- | 100 | 8 | 16 | 4 | 375-378 A |
|
|
| NW 1134 56 161 | 16 | 75 | -- | -- | 150 | 8 | 16 | 4 | 375-378 A |
|
|
| NW 1134 46 200 | 20 | 50 | -- | -- | 100 | 10 | 20 | 4 | 379-381 A |
|
|
| NW 1134 56 200 | 20 | 40 | -- | -- | 100 | 10 | 20 | 4 | 379-381 A |
|
|
| NW 1134 56 201 | 20 | 75 | -- | -- | 150 | 10 | 20 | 4 | 379-381 A |
|
|
