1+2 flutes for steel - 4 flutes for steel - for non-ferrous materials + graphite - [Возврат]

BALL NOSE END MILLS
2 flutes for non-ferrous materials | without working depth | standard series
1412
2 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVAS-coated
- standard series
- on demand: available with working depth
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 no working depth | standard series
NW 1412 47 010  1 1.5 -- -- 50 0.5 4 2 352-355
A
NW 1412 47 015  1.5 2.5 -- -- 50 0.75 4 2 352-355
A
NW 1412 47 021  2 3 -- -- 50 1 4 2 352-355
A
NW 1412 47 020  2 3 -- -- 57 1 6 2 356-360
A
NW 1412 47 030  3 4.5 -- -- 57 1.5 6 2 356-360
A
NW 1412 47 040  4 6 -- -- 57 2 6 2 356-360
A
NW 1412 47 050  5 7.5 -- -- 57 2.5 6 2 356-360
A
NW 1412 47 060  6 9 -- -- 57 3 6 2 356-360
A
NW 1412 47 080  8 12 -- -- 63 4 8 2 361-365
A
NW 1412 47 100  10 15 -- -- 72 5 10 2 366-370
A
NW 1412 47 120  12 18 -- -- 83 6 12 2 371-374
A
NW 1412 47 140  14 28 -- -- 83 7 14 2
A
NW 1412 47 160  16 24 -- -- 92 8 16 2 375-378
A
NW 1412 47 200  20 30 -- -- 104 10 20 2 379-381
A

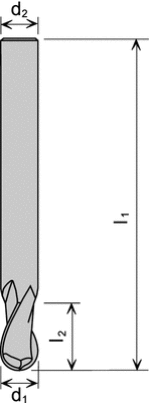

BALL NOSE END MILLS
2 flutes for non-ferrous materials | without working depth | long series
1422
4 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVAS-coated
- long series
- on demand: available with working depth
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 no working depth | long series
NW 1422 47 020  2 4 -- -- 75 1 4 2 352-355
A
NW 1422 47 030  3 15 -- -- 60 1.5 4 2 352-355
A
NW 1422 47 031  3 15 -- -- 75 1.5 4 2 352-355
A
NW 1422 47 040  4 20 -- -- 60 2 4 2 352-355
A
NW 1422 47 041  4 20 -- -- 75 2 4 2 352-355
A
NW 1422 47 050  5 20 -- -- 75 2.5 5 2 385
A
NW 1422 47 0501  5 20 -- -- 75 2.5 6 2 356-360
A
NW 1422 47 051  5 20 -- -- 100 2.5 5 2 385
A
NW 1422 47 0511  5 20 -- -- 100 2.5 6 2 356-360
A
NW 1422 47 060  6 20 -- -- 100 3 6 2 356-360
A
NW 1422 47 061  6 20 -- -- 150 3 6 2 356-360
A
NW 1422 47 080  8 25 -- -- 100 4 8 2 361-365
A
NW 1422 47 081  8 25 -- -- 150 4 8 2 361-365
A
NW 1422 47 100  10 25 -- -- 100 5 10 2 366-370
A
NW 1422 47 101  10 25 -- -- 150 5 10 2 366-370
A
NW 1422 47 120  12 30 -- -- 100 6 12 2 371-374
A
NW 1422 47 121  12 30 -- -- 150 6 12 2 371-374
A
NW 1422 47 160  16 30 -- -- 100 8 16 2 375-378
A
NW 1422 47 161  16 30 -- -- 150 8 16 2 375-378
A
NW 1422 47 201  20 35 -- -- 150 10 20 2 379-381
A

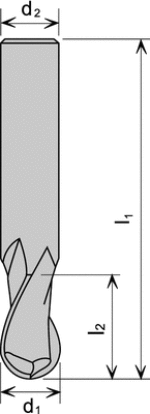

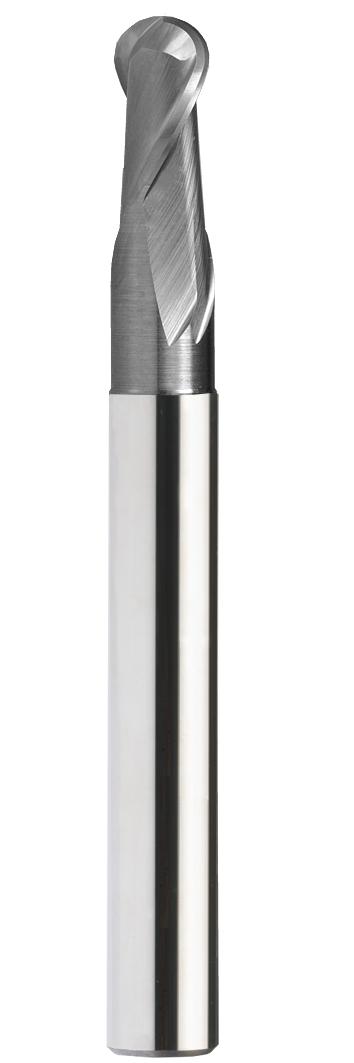

BALL NOSE END MILLS
2 flutes for non-ferrous materials | with working depth | standard + long series
1432
2 flutes, plain shank, ball nose, centre cutting, 30° right hand helix
- standard and long series
- with working depth
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with working depth | standard series
NW 1432 47 0101  1 1.5 6 0.95 50 0.5 4 2 352-355
A
NW 1432 47 0102  1 1.5 10 0.95 50 0.5 4 2 352-355
A
NW 1432 47 0103  1 1.5 15 0.95 50 0.5 4 2 352-355
A
NW 1432 47 0104  1 1.5 20 0.95 75 0.5 4 2 352-355
A
NW 1432 47 0105  1 1.5 25 0.95 75 0.5 4 2 352-355
A
NW 1432 47 0106  1 1.5 30 0.95 75 0.5 4 2 352-355
A
NW 1432 47 0152  1.5 2.5 10 1.4 50 0.75 4 2 352-355
A
NW 1432 47 0153  1.5 2.5 15 1.4 50 0.75 4 2 352-355
A
NW 1432 47 0154  1.5 2.5 20 1.4 75 0.75 4 2 352-355
A
NW 1432 47 0155  1.5 2.5 25 1.4 50 0.75 4 2 352-355
A
NW 1432 47 0156  1.5 2.5 30 1.4 75 0.75 4 2 352-355
A
NW 1432 47 0212  2 3 10 1.9 50 1 4 2 352-355
A
NW 1432 47 0213  2 3 15 1.9 50 1 4 2 352-355
A
NW 1432 47 0214  2 3 20 1.9 75 1 4 2 352-355
A
NW 1432 47 02141  2 3 25 1.9 75 1 4 2 352-355
A
NW 1432 47 0215  2 3 30 1.9 75 1 4 2 352-355
A
NW 1432 47 02151  2 3 35 1.9 75 1 4 2 352-355
A
NW 1432 47 0253  2.5 4 15 2.4 50 1.25 4 2 352-355
A
NW 1432 47 0254  2.5 4 20 2.4 75 1.25 4 2 352-355
A
NW 1432 47 02551  2.5 4 35 2.4 75 1.25 4 2 352-355
A
NW 1432 47 0302  3 4.5 10 2.9 57 1.5 6 2 356-360
A
NW 1432 47 0304  3 4.5 20 2.9 57 1.5 6 2 356-360
A
NW 1432 47 0305  3 4.5 30 2.9 75 1.5 6 2 356-360
A
NW 1432 47 0306  3 4.5 40 2.9 57 1.5 6 2 356-360
A
NW 1432 47 0402  4 6 10 3.8 57 2 6 2 356-360
A
NW 1432 47 0404  4 6 20 3.8 57 2 6 2 356-360
A
NW 1432 47 0405  4 6 30 3.8 75 2 6 2 356-360
A
NW 1432 47 0406  4 6 40 3.8 75 2 6 2 356-360
A
NW 1432 47 0604  6 6 20 5.8 57 3 6 2 356-360
A
NW 1432 47 0605  6 6 30 5.8 75 3 6 2 356-360
A
NW 1432 47 0606  6 6 40 5.8 75 3 6 2 356-360
A
NW 1432 47 0607  6 6 50 5.8 100 3 6 2 356-360
A
NW 1432 47 0608  6 6 70 5.8 100 3 6 2 356-360
A
NW 1432 47 08051  8 12 35 7.8 90 4 8 2 361-365
A
NW 1432 47 0807  8 12 50 7.8 100 4 6 2 361-365
A
NW 1432 47 0808  8 12 70 7.8 100 4 8 2 361-365
A
NW 1432 47 1006  10 15 40 9.8 72 5 10 2 366-370
A
NW 1432 47 1007  10 15 50 9.8 100 5 10 2 366-370
A
NW 1432 47 1008  10 15 70 9.8 100 5 10 2 366-370
A
NW 1432 47 1009  10 15 100 9.8 150 5 10 2 366-370
A
NW 1432 47 1206  12 18 40 11.8 83 6 12 2 371-374
A
NW 1432 47 1207  12 18 50 11.8 110 6 12 2 371-374
A
NW 1432 47 1208  12 18 70 11.8 110 6 12 2 371-374
A
NW 1432 47 1209  12 18 100 11.8 150 6 12 2 371-374
A
NW 1432 47 1609  16 24 100 15.8 150 8 16 2 375-378
A
NW 1432 47 2009  20 30 100 19.8 150 10 20 2 379-381
A

BALL NOSE END MILLS
2 flutes for non-ferrous materials | PCD | spherical | with working depth
1600
2 flutes, plain shank, ball nose, centre cutting
- for non-ferrous materials
- with working depth
- Attention:
  Please use these end mills only with approach angle of high-speed spindle!
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 PCD | spherical | with working depth
NW 1600 20 040  4 -- 15 3.8 50 2 6 2 356-360
A
NW 1600 20 050  5 -- 20 4.8 75 2.5 6 2 356-360
A
NW 1600 20 060  6 -- 30 5.8 75 3 6 2 356-360
A
NW 1600 20 080  8 -- 35 7.8 100 4 8 2 361-365
A
NW 1600 20 100  10 -- 35 9.8 100 5 10 2 366-370
A
NW 1600 20 120  12 -- 50 -- 100 6 10 2 366-370
A

BALL NOSE END MILLS
2 flutes for non-ferrous materials + high-temp. alloys| without working depth | standard series
1462
2 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVCN-coated
- standard series
- machining of titanium alloy possible
- on demand: available with working depth
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 without working depth | standard series
NW 1462 43 004  0.4 0.6 -- -- 50 0.2 4 2 352-355
A
NW 1462 43 010  1 1.5 -- -- 50 0.5 4 2 352-355
A
NW 1462 43 015  1.5 2.5 -- -- 57 0.75 6 2 356-360
A
NW 1462 43 020  2 3 -- -- 57 1 6 2 356-360
A
NW 1462 43 025  2.5 4 -- -- 57 1.25 6 2 356-360
A
NW 1462 43 030  3 4.5 -- -- 57 1.5 6 2 356-360
A
NW 1462 43 040  4 6 -- -- 57 2 6 2 356-360
A
NW 1462 43 050  5 7.5 -- -- 57 2.5 6 2 356-360
A
NW 1462 43 060  6 9 -- -- 57 3 6 2 356-360
A
NW 1462 43 080  8 12 -- -- 63 4 8 2 361-365
A
NW 1462 43 090  9 13.5 -- -- 72 4.5 10 2 366-370
A
NW 1462 43 100  10 15 -- -- 72 5 10 2 366-370
A
NW 1462 43 120  12 18 -- -- 83 6 12 2 371-374
A
NW 1462 43 160  16 24 -- -- 92 8 16 2 375-378
A

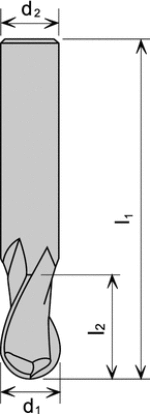

BALL NOSE END MILLS
2 flutes for non-ferrous materials + high-temp. alloys| without working depth | long series
1472
2 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVCN-coated
- long series
- machining of titanium alloy possible
- on demand: available with working depth
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 without working depth | long series
NW 1472 43 051  5 20 -- -- 100 2.5 5 2 385
A
NW 1472 43 061  6 20 -- -- 150 3 6 2 356-360
A

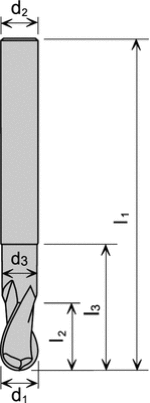

BALL NOSE END MILLS
2 flutes for graphite | finishing
1452
2 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVDiaG+N-coated
- up to 3 mm diam.: PVDiaG - diamond coating
- over 3 mm diam.: PVDiaN - diamond coating
- standard and long series
- with and without working depth
- Attention: for praphite machining only
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with + no WD | standard + long series
SW 1452 48 00403  0.4 0.6 2.5 0.37 50 0.2 4 2 352-355
A
SW 1452 48 00404  0.4 0.6 5 0.37 50 0.2 4 2 352-355
A
NW 1452 48 0050  0.5 0.8 -- -- 50 0.25 4 2 352-355
A
SW 1452 48 00503  0.5 0.8 3.5 0.45 50 0.25 4 2 352-355
A
NW 1452 48 00510  0.5 0.8 5 0.45 50 0.25 4 2 352-355
A
SW 1452 48 00504  0.5 0.8 7 0.45 50 0.25 4 2 352-355
A
NW 1452 48 0052  0.5 0.8 10 0.45 50 0.25 4 2 352-355
A
SW 1452 48 00603  0.6 0.9 3.5 0.55 50 0.3 4 2 352-355
A
SW 1452 48 00604  0.6 0.9 7 0.55 50 0.3 4 2 352-355
A
SW 1452 48 00803  0.8 1.2 5 0.75 50 0.4 4 2 352-355
A
SW 1452 48 00804  0.8 1.2 10 0.75 50 0.4 4 2 352-355
A
NW 1452 48 010  1 1.5 -- -- 50 0.5 4 2 352-355
A
NW 1452 48 01000  1 1.5 5 0.95 50 0.5 4 2 352-355
A
NW 1452 48 0101  1 1.5 10 0.95 50 0.5 4 2 352-355
A
NW 1452 48 0102  1 1.5 25 0.95 50 0.5 4 2 352-355
A
NW 1452 48 0103  1 1.5 20 0.95 50 0.5 4 2 352-355
A
NW 1452 48 011  1 1.5 -- -- 57 0.5 6 2 356-360
A
NW 1452 48 01510  1.5 2.3 -- -- 50 0.75 4 2 352-355
A
NW 1452 48 0152  1.5 2.3 10 1.4 50 0.75 4 2 352-355
A
NW 1452 48 0153  1.5 2.3 25 1.4 75 0.75 4 2 352-355
A
NW 1452 48 0200  2 3 -- -- 50 1 4 2 352-355
A
NW 1452 48 0201  2 3 5 1.9 50 1 4 2 352-355
A
NW 1452 48 0202  2 3 10 1.9 50 1 4 2 352-355
A
NW 1452 48 0203  2 3 15 1.9 50 1 4 2 352-355
A
NW 1452 48 0204  2 3 20 1.9 75 1 4 2 352-355
A
NW 1452 48 0205  2 3 25 1.9 75 1 4 2 352-355
A
NW 1452 48 021  2 3 -- -- 57 1 6 2 356-360
A
NW 1452 48 0301  3 4.5 5 2.9 50 1.5 4 2 352-355
A
NW 1452 48 0302  3 4.5 10 2.9 50 1.5 4 2 352-355
A
NW 1452 48 0303  3 4.5 15 2.9 50 1.5 4 2 352-355
A
NW 1452 48 0304  3 4.5 20 2.9 75 1.5 4 2 352-355
A
NW 1452 48 0305  3 4.5 25 2.9 75 1.5 4 2 352-355
A
NW 1452 48 0306  3 4.5 30 2.9 100 1.5 4 2 352-355
A
NW 1452 48 0402  4 6 10 3.8 50 2 4 2 352-355
A
NW 1452 48 0403  4 6 15 3.8 50 2 4 2 352-355
A
NW 1452 48 0404  4 6 20 3.8 75 2 4 2 352-355
A
NW 1452 48 0405  4 6 25 3.8 50 2 4 2 352-355
A
NW 1452 48 0406  4 6 45 3.8 100 2 4 2 352-355
A
NW 1452 48 0502  5 7.5 10 4.8 57 2.5 5 2 385
A
NW 1452 48 0503  5 7.5 25 4.8 75 2.5 5 2 385
A
NW 1452 48 0504  5 7.5 45 4.8 100 2.5 5 2 385
A
NW 1452 48 0600  6 9 -- -- 57 3 6 2 356-360
A
NW 1452 48 0601  6 9 10 5.8 57 3 6 2 356-360
A
NW 1452 48 0603  6 9 15 5.8 57 3 6 2 356-360
A
NW 1452 48 0604  6 9 20 5.8 75 3 6 2 356-360
A
NW 1452 48 0605  6 9 25 5.8 75 3 6 2 356-360
A
NW 1452 48 0606  6 9 30 5.8 75 3 6 2 356-360
A
NW 1452 48 0607  6 9 45 5.8 100 3 6 2 356-360
A
NW 1452 48 0608  6 9 60 5.8 150 3 6 2 356-360
A
NW 1452 48 0800  8 12 -- -- 63 4 8 2 361-365
A
NW 1452 48 0801  8 12 20 7.8 63 4 8 2 361-365
A
NW 1452 48 0802  8 12 25 7.8 63 4 8 2 361-365
A
NW 1452 48 081  8 12 45 7.8 100 4 8 2 361-365
A
NW 1452 48 082  8 12 60 7.8 150 4 8 2 361-365
A
NW 1452 48 100  10 15 -- -- 72 5 10 2 366-370
A
NW 1452 48 1009  10 15 25 9.8 72 5 10 2 366-370
A
NW 1452 48 1010  10 15 45 9.8 100 5 10 2 366-370
A
NW 1452 48 1209  12 18 25 11.8 83 6 12 2 371-374
A
NW 1452 48 1210  12 18 45 11.8 110 6 12 2 371-374
A
NW 1452 48 1220  12 18 60 11.8 150 6 12 2 371-374
A

BALL NOSE END MILLS
3 flutes for graphite | pre-finishing + roughing | with and without working depth | standard and long series
1453

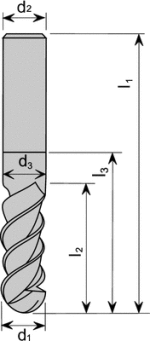

3 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVDiaG+N-coated
- up to 3 mm diam.: PVDiaG - diamond coating
- over 3 mm diam.: PVDiaN - diamond coating
- standard and long series
- with and without working depth
- Attention: for praphite machining only
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with + without WD | standard + long series
NW 1453 48 025  2.5 10 -- -- 50 1.25 4 3 352-355
A
NW 1453 48 050  5 35 -- -- 75 2.55 5 3 385
A
NW 1453 48 1000  10 15 -- -- 72 5 10 3 366-370
A
NW 1453 48 103  10 25 -- -- 80 5 10 3 366-370
A
NW 1453 48 1009  10 15 25 9.8 72 5 10 3 366-370
A
NW 1453 48 1010  10 15 45 9.8 100 5 10 3 366-370
A
NW 1453 48 1020  10 15 60 9.8 150 5 10 3 366-370
A
NW 1453 48 1200  12 18 -- -- 83 6 12 3 371-374
A
NW 1453 48 124  12 25 -- -- 90 6 12 3 371-374
A
NW 1453 48 120  12 60 -- -- 150 6 12 3 371-374
A
NW 1453 48 1209  12 18 25 11.8 83 6 12 3 371-374
A
NW 1453 48 1210  12 18 45 11.8 100 6 12 3 371-374
A
NW 1453 48 1220  12 18 60 11.8 150 6 12 3 371-374
A
NW 1453 48 160  16 45 -- -- 100 8 16 3 375-378
A
NW 1453 48 1610  16 24 45 15.8 100 8 16 3 375-378
A
NW 1453 48 162  16 24 60 15.8 150 8 16 3 375-378
A
NW 1453 48 2000  20 30 45 19.8 100 10 20 3 379-381
A
NW 1453 48 2010  20 30 60 19.8 150 10 20 3 379-381
A


1+2 flutes for steel - 4 flutes for steel - for non-ferrous materials + graphite - [Возврат]
