| 1+2 flutes for steel - 4 flutes for steel - for non-ferrous materials + graphite - [Возврат] |
|

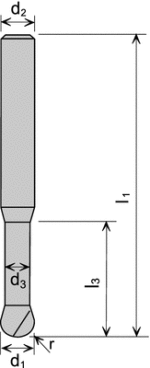

BALL NOSE END MILLS |
|
2 flutes for steel | Mini | without working depth |
|
1142 2 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVTi-coated - 3 mm shank-diameter - standard series - without working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| Mini | no working depth | standard series | |||||||||||
 |
NW 1142 56 001 | 0.1 | 0.2 | -- | -- | 39 | 0.05 | 3 | 2 | 350-351 A |
 |
| NW 1142 56 0015 | 0.15 | 0.3 | -- | -- | 39 | 0.075 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 002 | 0.2 | 0.5 | -- | -- | 39 | 0.1 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 003 | 0.3 | 1 | -- | -- | 39 | 0.15 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 004 | 0.4 | 1 | -- | -- | 39 | 0.2 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 005 | 0.5 | 1.5 | -- | -- | 39 | 0.25 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 006 | 0.6 | 1.5 | -- | -- | 39 | 0.3 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 007 | 0.7 | 2 | -- | -- | 39 | 0.35 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 008 | 0.8 | 2 | -- | -- | 39 | 0.4 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 010 | 1 | 3 | -- | -- | 39 | 0.5 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 011 | 1.1 | 3 | -- | -- | 39 | 0.55 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 012 | 1.2 | 3 | -- | -- | 39 | 0.6 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 014 | 1.4 | 4 | -- | -- | 39 | 0.7 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 015 | 1.5 | 4 | -- | -- | 39 | 0.75 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 016 | 1.6 | 5 | -- | -- | 39 | 0.8 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 018 | 1.8 | 5 | -- | -- | 39 | 0.9 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 020 | 2 | 5 | -- | -- | 39 | 1 | 3 | 2 | 350-351 A |
|
|
| NW 1142 56 025 | 2.5 | 7 | -- | -- | 39 | 1.25 | 3 | 2 | 350-351 A |
|
|
|

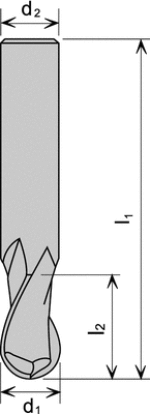

BALL NOSE END MILLS |
|
2 flutes for steel | without working depth | standard series |
|
1222 2 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVTi-coated - standard series - without working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | standard series | |||||||||||
 |
NW 1222 56 0041 | 0.4 | 0.6 | -- | -- | 50 | 0.2 | 4 | 2 | 352-355 A |
|
| NW 1222 56 0051 | 0.5 | 0.8 | -- | -- | 50 | 0.25 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 0061 | 0.6 | 0.9 | -- | -- | 50 | 0.3 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 0071 | 0.7 | 1.1 | -- | -- | 50 | 0.35 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 0081 | 0.8 | 1.2 | -- | -- | 50 | 0.4 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 011 | 1 | 1.5 | -- | -- | 50 | 0.5 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 0101 | 1 | 1.5 | -- | -- | 57 | 0.5 | 6 | 2 | 356-360 A |
|
|
| NW 1222 56 0121 | 1.2 | 1.8 | -- | -- | 50 | 0.6 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 0141 | 1.4 | 2 | -- | -- | 50 | 0.7 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 0152 | 1.5 | 2.2 | -- | -- | 50 | 0.75 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 0151 | 1.5 | 2.2 | -- | -- | 57 | 0.75 | 6 | 2 | 356-360 A |
|
|
| NW 1222 56 0161 | 1.6 | 2.4 | -- | -- | 50 | 0.8 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 0181 | 1.8 | 2.7 | -- | -- | 50 | 0.9 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 0201 | 2 | 3 | -- | -- | 50 | 1 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 021 | 2 | 3 | -- | -- | 57 | 1 | 6 | 2 | 356-360 A |
|
|
| NW 1222 56 0252 | 2.5 | 4 | -- | -- | 50 | 1.25 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 025 | 2.5 | 4 | -- | -- | 57 | 1.25 | 6 | 2 | 356-360 A |
|
|
| NW 1222 56 0301 | 3 | 4.5 | -- | -- | 50 | 1.5 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 030 | 3 | 4.5 | -- | -- | 57 | 1.5 | 6 | 2 | 356-360 A |
|
|
| NW 1222 56 0401 | 4 | 6 | -- | -- | 50 | 2 | 4 | 2 | 352-355 A |
|
|
| NW 1222 56 040 | 4 | 6 | -- | -- | 57 | 2 | 6 | 2 | 356-360 A |
|
|
| NW 1222 56 050 | 5 | 7.5 | -- | -- | 57 | 2.5 | 6 | 2 | 356-360 A |
|
|
| NW 1222 56 060 | 6 | 9 | -- | -- | 57 | 3 | 6 | 2 | 356-360 A |
|
|
| NW 1222 56 070 | 7 | 10.5 | -- | -- | 63 | 3.5 | 8 | 2 | 361-365 A |
|
|
| NW 1222 56 080 | 8 | 12 | -- | -- | 63 | 4 | 8 | 2 | 361-365 A |
|
|
| NW 1222 56 090 | 9 | 13 | -- | -- | 72 | 4.5 | 10 | 2 | 366-370 A |
|
|
| NW 1222 56 100 | 10 | 15 | -- | -- | 72 | 5 | 10 | 2 | 366-370 A |
|
|
| NW 1222 56 120 | 12 | 18 | -- | -- | 83 | 6 | 12 | 2 | 371-374 A |
|
|
| NW 1222 56 140 | 14 | 21 | -- | -- | 83 | 7 | 14 | 2 | A |
|
|
| NW 1222 56 160 | 16 | 24 | -- | -- | 92 | 8 | 16 | 2 | 375-378 A |
|
|
| NW 1222 56 180 | 18 | 27 | -- | -- | 92 | 9 | 18 | 2 | A |
|
|
| NW 1222 56 200 | 20 | 30 | -- | -- | 104 | 10 | 20 | 2 | 379-381 A |
|
|
|
BALL NOSE END MILLS |
|
2 flutes for steel | without working depth | long series |
|
|
1232 2 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVTi-coated - long series - without working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| no working depth | long series | |||||||||||
|
NW 1232 56 010 | 1 | 1.5 | -- | -- | 75 | 0.5 | 6 | 2 | 356-360 A |
|
| NW 1222 56 015 | 1.5 | 2.3 | -- | -- | 75 | 0.75 | 6 | 2 | 356-360 A |
|
|
| NW 1232 56 020 | 2 | 3 | -- | -- | 75 | 1 | 6 | 2 | 356-360 A |
|
|
| NW 1222 56 025 | 2.5 | 4 | -- | -- | 75 | 1.25 | 6 | 2 | 356-360 A |
|
|
| NW 1232 56 030 | 3 | 4.5 | -- | -- | 75 | 1.5 | 6 | 2 | 356-360 A |
|
|
| NW 1222 56 040 | 4 | 6 | -- | -- | 75 | 2 | 6 | 2 | 356-360 A |
|
|
| NW 1232 56 050 | 5 | 7.5 | -- | -- | 75 | 2.5 | 6 | 2 | 356-360 A |
|
|
| NW 1222 56 055 | 5.5 | 8.5 | -- | -- | 75 | 2.75 | 6 | 2 | 356-360 A |
|
|
| NW 1232 56 060 | 6 | 9 | -- | -- | 75 | 3 | 6 | 2 | 356-360 A |
|
|
| NW 1222 56 070 | 7 | 10.5 | -- | -- | 90 | 3.5 | 8 | 2 | 361-365 A |
|
|
| NW 1232 56 080 | 8 | 12 | -- | -- | 90 | 4 | 8 | 2 | 361-365 A |
|
|
| NW 1222 56 100 | 10 | 15 | -- | -- | 100 | 5 | 10 | 2 | 366-370 A |
|
|
| NW 1232 56 120 | 12 | 18 | -- | -- | 110 | 6 | 12 | 2 | 371-374 A |
|
|
| NW 1222 56 160 | 16 | 24 | -- | -- | 140 | 8 | 16 | 2 | 375-378 A |
|
|
| NW 1232 56 200 | 20 | 30 | -- | -- | 150 | 10 | 20 | 2 | 379-381 A |
|
|
|

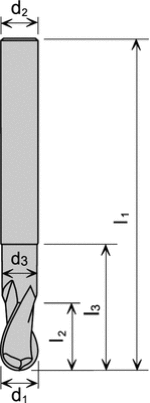

BALL NOSE END MILLS |
|
2 flutes for steel | with working depth | standard series |
|
|
1322 2 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVTi-coated - standard series - with working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| with working depth | standard series | |||||||||||
 |
NW 1322 56 020 | 2 | 3 | 10 | 1.9 | 75 | 1 | 6 | 2 | 356-360 A |
|
| NW 1322 56 030 | 3 | 4.5 | 12 | 2.9 | 75 | 1.5 | 6 | 2 | 356-360 A |
|
|
| NW 1322 56 040 | 4 | 6 | 12 | 3.8 | 75 | 2 | 6 | 2 | 356-360 A |
|
|
| NW 1322 56 050 | 5 | 7.5 | 15 | 4.8 | 75 | 2.5 | 6 | 2 | 356-360 A |
|
|
| NW 1322 56 060 | 6 | 9 | 20 | 5.8 | 75 | 3 | 6 | 2 | 356-360 A |
|
|
| NW 1322 56 080 | 8 | 12 | 26 | 7.8 | 90 | 4 | 8 | 2 | 361-365 A |
|
|
| NW 1322 56 100 | 10 | 15 | 31 | 9.8 | 100 | 5 | 10 | 2 | 366-370 A |
|
|
| NW 1322 56 120 | 12 | 18 | 37 | 11.8 | 110 | 6 | 12 | 2 | 371-374 A |
|
|
| NW 1322 56 160 | 16 | 24 | 43 | 15.8 | 140 | 8 | 16 | 2 | 375-378 A |
|
|
|

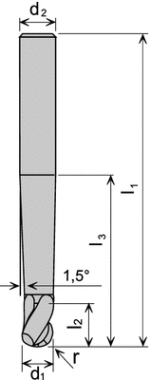

BALL NOSE END MILLS |
|
2 flutes for steel | reinforced shank | tapered working depth |
|
1162 2 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVTi-coated - long series - l3: maximum working depth; 1.5° draft angle behind cutting edge |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| reinforced shank | tapered working depth | |||||||||||
 |
NW 1162 56 0041 | 0.4 | 0.6 | 25 | -- | 75 | 0.2 | 6 | 2 | 356-360 A |
|
| NW 1162 56 010 | 1 | 1.5 | 25 | -- | 75 | 0.5 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 0101 | 1 | 1.5 | 39 | -- | 75 | 0.5 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 015 | 1.5 | 2.3 | 25 | -- | 75 | 0.75 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 020 | 2 | 3 | 25 | -- | 75 | 1 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 021 | 2 | 3 | 50 | -- | 100 | 1 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 025 | 2.5 | 4 | 25 | -- | 75 | 1.25 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 030 | 3 | 4.5 | 25 | -- | 75 | 1.5 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 034 | 3 | 4.5 | 39 | -- | 75 | 1.5 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 031 | 3 | 4.5 | 50 | -- | 100 | 1.5 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 040 | 4 | 6 | 25 | -- | 75 | 2 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 0401 | 4 | 6 | 39 | -- | 75 | 2 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 041 | 4 | 6 | 44 | -- | 100 | 2 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 050 | 5 | 7.5 | 25 | -- | 75 | 2.5 | 6 | 2 | 356-360 A |
|
|
| NW 1162 56 051 | 5 | 7.5 | 50 | -- | 90 | 2.5 | 8 | 2 | 361-365 A |
|
|
| NW 1162 56 060 | 6 | 9 | 35 | -- | 75 | 3 | 8 | 2 | 361-365 A |
|
|
| NW 1162 56 061 | 6 | 9 | 50 | -- | 100 | 3 | 10 | 2 | 366-370 A |
|
|
| NW 1162 56 080 | 8 | 12 | 50 | -- | 100 | 4 | 10 | 2 | 366-370 A |
|
|
| NW 1162 56 081 | 8 | 12 | 90 | -- | 150 | 4 | 12 | 2 | 371-374 A |
|
|
| NW 1162 56 100 | 10 | 15 | 50 | -- | 110 | 5 | 12 | 2 | 371-374 A |
|
|
| NW 1162 56 101 | 10 | 15 | 50 | -- | 150 | 5 | 12 | 2 | 371-374 A |
|
|
| NW 1162 56 121 | 12 | 18 | 90 | -- | 150 | 6 | 16 | 2 | 375-378 A |
|
|
|
BALL NOSE END MILLS |
|
2 flutes for steel | extra long series |
|
1132 2 flutes, plain shank, ball nose, centre cutting, 30° right hand helix, PVTi-coated - extra long series |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| extra long series | |||||||||||
 |
NW 1132 56 030 | 3 | 30 | -- | -- | 60 | 1.5 | 3 | 2 | 350-351 A |
|
| NW 1132 56 031 | 3 | 30 | -- | -- | 75 | 1.5 | 3 | 2 | 350-351 A |
|
|
| NW 1132 56 040 | 4 | 30 | -- | -- | 60 | 2 | 4 | 2 | 352-355 A |
|
|
| NW 1132 56 041 | 4 | 30 | -- | -- | 75 | 2 | 4 | 2 | 352-355 A |
|
|
| NW 1132 56 050 | 5 | 35 | -- | -- | 70 | 2.5 | 5 | 2 | 385 A |
|
|
| NW 1132 56 051 | 5 | 40 | -- | -- | 100 | 2.5 | 5 | 2 | 385 A |
|
|
| NW 1132 56 060 | 6 | 40 | -- | -- | 100 | 3 | 6 | 2 | 356-360 A |
|
|
| NW 1132 56 061 | 6 | 50 | -- | -- | 150 | 3 | 6 | 2 | 356-360 A |
|
|
| NW 1132 56 080 | 8 | 40 | -- | -- | 100 | 4 | 8 | 2 | 361-365 A |
|
|
| NW 1132 56 081 | 8 | 50 | -- | -- | 150 | 4 | 8 | 2 | 361-365 A |
|
|
| NW 1132 56 100 | 10 | 45 | -- | -- | 100 | 5 | 10 | 2 | 366-370 A |
|
|
| NW 1132 56 101 | 10 | 60 | -- | -- | 150 | 5 | 10 | 2 | 366-370 A |
|
|
| NW 1132 56 120 | 12 | 45 | -- | -- | 100 | 6 | 12 | 2 | 371-374 A |
|
|
| NW 1132 56 121 | 12 | 75 | -- | -- | 150 | 6 | 12 | 2 | 371-374 A |
|
|
| NW 1132 56 160 | 16 | 45 | -- | -- | 100 | 8 | 16 | 2 | 375-378 A |
|
|
| NW 1132 56 161 | 16 | 75 | -- | -- | 150 | 8 | 12 | 2 | 375-378 A |
|
|
| NW 1132 46 200 | 20 | 50 | -- | -- | 100 | 10 | 20 | 2 | 379-381 A |
|
|
| NW 1132 56 200 | 20 | 55 | -- | -- | 125 | 10 | 20 | 2 | 379-381 A |
|
|
| NW 1132 56 201 | 20 | 75 | -- | -- | 150 | 10 | 20 | 2 | 379-381 A |
|
|
|

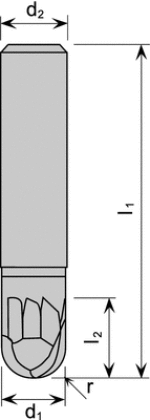

BALL NOSE END MILLS |
|
2 flutes for hardened steel | without working depth | standard series |
|
1312 2 flutes, plain shank, ball nose, centre cutting, 15° right hand helix, PVAT-coated - standard series - extremely stable core diameter - new ultramicrograin carbide - newly developed coating - optimized geometry |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| without working depth | standard series | |||||||||||
 |
NW 1312 59 011 | 1 | 1 | -- | -- | 57 | 0.5 | 6 | 2 | 356-360 A |
|
| NW 1312 59 016 | 1.5 | 1.5 | -- | -- | 57 | 0.75 | 6 | 2 | 356-360 A |
|
|
| NW 1312 59 021 | 2 | 2 | -- | -- | 57 | 1 | 6 | 2 | 356-360 A |
|
|
| NW 1312 59 031 | 3 | 3 | -- | -- | 57 | 1.5 | 6 | 2 | 356-360 A |
|
|
| NW 1312 59 041 | 4 | 4 | -- | -- | 57 | 2 | 6 | 2 | 356-360 A |
|
|
| NW 1312 59 051 | 5 | 5 | -- | -- | 57 | 2.5 | 6 | 2 | 356-360 A |
|
|
| NW 1312 59 061 | 6 | 6 | -- | -- | 57 | 3 | 6 | 2 | 356-360 A |
|
|
| NW 1312 59 081 | 8 | 8 | -- | -- | 63 | 4 | 8 | 2 | 361-365 A |
|
|
| NW 1312 59 101 | 10 | 10 | -- | -- | 72 | 5 | 10 | 2 | 366-370 A |
|
|
| NW 1312 59 121 | 12 | 12 | -- | -- | 83 | 6 | 12 | 2 | 371-374 A |
|
|
|

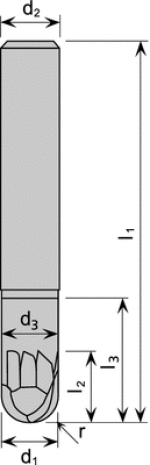

BALL NOSE END MILLS |
|
2 flutes for hardened steel | with working depth | long series |
|
1313 2 flutes, plain shank, ball nose, centre cutting, 15° right hand helix, PVAT-coated - long series - extremely stable core diameter - new ultramicrograin carbide - newly developed coating - optimized geometry |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| with working depth | long series | |||||||||||
 |
NW 1313 59 011 | 1 | 1 | 6 | 0.95 | 75 | 0.5 | 6 | 2 | 356-360 A |
|
| NW 1313 59 016 | 1.5 | 1.5 | 8 | 1.4 | 75 | 0.75 | 6 | 2 | 356-360 A |
|
|
| NW 1313 59 021 | 2 | 2 | 10 | 1.9 | 75 | 1 | 6 | 2 | 356-360 A |
|
|
| NW 1313 59 031 | 3 | 3 | 12 | 2.9 | 75 | 1.5 | 6 | 2 | 356-360 A |
|
|
| NW 1313 59 041 | 4 | 4 | 15 | 3.8 | 75 | 2 | 6 | 2 | 356-360 A |
|
|
| NW 1313 59 051 | 5 | 5 | 18 | 4.8 | 75 | 2.5 | 6 | 2 | 356-360 A |
|
|
| NW 1313 59 061 | 6 | 6 | 20 | 5.8 | 75 | 3 | 6 | 2 | 356-360 A |
|
|
| NW 1313 59 081 | 8 | 8 | 26 | 7.8 | 90 | 4 | 8 | 2 | 361-365 A |
|
|
| NW 1313 59 101 | 10 | 10 | 31 | 9.8 | 100 | 5 | 10 | 2 | 366-370 A |
|
|
| NW 1313 59 121 | 12 | 12 | 37 | 11.8 | 110 | 6 | 12 | 2 | 371-374 A |
|
|
|

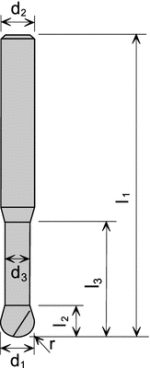

BALL NOSE END MILLS |
|
2 flutes for steel | spherical | with working depth |
|
1342 PVTi-coated - for plunging and lifting an 90° walls - with working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| spherical | with working depth | |||||||||||
 |
NW 1342 56 020 | 2 | 3 | 8 | 1.9 | 75 | 1 | 6 | 2 | 356-360 A |
|
| NW 1342 56 030 | 3 | 4 | 12 | 2.9 | 75 | 1.5 | 6 | 2 | 356-360 A |
|
|
| NW 1342 56 040 | 4 | 5 | 16 | 3.8 | 75 | 2 | 6 | 2 | 356-360 A |
|
|
| NW 1342 56 050 | 5 | 6 | 20 | 4.8 | 100 | 2.5 | 6 | 2 | 356-360 A |
|
|
| NW 1342 56 060 | 6 | 7 | 24 | 5.8 | 100 | 3 | 6 | 2 | 356-360 A |
|
|
| NW 1342 56 080 | 8 | 9 | 32 | 7.8 | 100 | 4 | 8 | 2 | 361-365 A |
|
|
| NW 1342 56 100 | 10 | 11 | 40 | 9.8 | 125 | 5 | 10 | 2 | 366-370 A |
|
|
| NW 1342 56 120 | 12 | 13 | 40 | 11.8 | 125 | 6 | 12 | 2 | 371-374 A |
|
|
|
BALL NOSE END MILLS |
|
1 + 2 flutes for hardened steel | CBN | spherical | with working depth |
|
1600 1 + 2 flutes, plain shank, ball nose, centre cutting - with working depth - for hardened steel over 60 HRC - Attention: Please use these mills only with approach angle of hifh-speed spindle! |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| CBN | spherical | with working depth | |||||||||||
 |
NW 1600 10 015 | 1.5 | -- | 6 | 1.4 | 50 | 0.75 | 6 | 1 | 356-360 A |
|
| NW 1600 10 020 | 2 | -- | 8 | 1.9 | 50 | 1 | 6 | 1 | 356-360 A |
|
|
| NW 1600 10 030 | 3 | -- | 12 | 2.9 | 50 | 1.5 | 6 | 1 | 356-360 A |
|
|
| NW 1600 10 040 | 4 | -- | 15 | 3.8 | 50 | 2 | 6 | 2 | 356-360 A |
|
|
| NW 1600 10 050 | 5 | -- | 20 | 4.8 | 75 | 2.5 | 6 | 2 | 356-360 A |
|
|
| NW 1600 10 060 | 6 | -- | 20 | 5.8 | 75 | 3 | 6 | 2 | 356-360 A |
|
|
| NW 1600 10 080 | 8 | -- | 35 | 7.8 | 100 | 4 | 8 | 2 | 361-365 A |
|
|
| NW 1600 10 100 | 10 | -- | 35 | 9.8 | 100 | 5 | 10 | 2 | 366-370 A |
|
|
| NW 1600 10 120 | 12 | -- | 50 | -- | 100 | 6 | 10 | 2 | 366-370 A |
|
|
| 1+2 flutes for steel - 4 flutes for steel - for non-ferrous materials + graphite - [Возврат] |
