BALL NOSE END MILLS FGT
2 flutes for copper, graphite, non-ferrous mat.+titan
1462 49
2 flutes, plain shank, ball nose, centre cutting, 30° right hand helix
- with and without clearance between shank and flute
- short version I long version
- with working depth, modified diamond-coating
 Solid carbide end mills

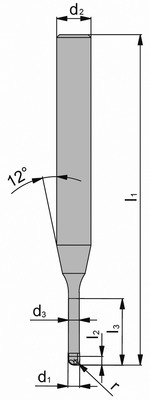

catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with working depths | standard series
NW 1462 49 0031  0.3 0.3 1 0.285 50 0.15 4 2 352-355
A
NW 1462 49 0041  0.4 0.4 1 0.385 50 0.2 4 2 352-355
A
NW 1462 49 0051  0.5 0.5 2 0.48 50 0.25 4 2 352-355
A
NW 1462 49 0061  0.6 0.6 2 0.58 50 0.3 4 2 352-355
A
NW 1462 49 0081  0.8 0.8 4 0.78 50 0.4 4 2 352-355
A
NW 1462 49 011  1 1 5 0.98 50 0.5 4 2 352-355
A
NW 1462 49 0151  1.5 1.5 10 1.45 50 0.75 4 2 352-355
A
NW 1462 49 021  2 2 10 1.95 50 1 4 2 352-355
A
NW 1462 49 031  3 3 10 2.95 57 1.5 6 2 356-360
A
NW 1462 49 0411  4 4 15 3.9 57 2 6 2 356-360
A
NW 1462 49 0511  5 5 20 4.9 57 2.5 6 2 356-360
A
NW 1462 49 0611  6 6 20 5.85 57 3 6 2 356-360
A
NW 1462 49 0614  4 4 40 5.85 75 3 6 2 356-360
A
NW 1462 49 0811  8 8 20 7.85 63 4 8 2 361-365
A
NW 1462 49 1001  10 10 20 9.85 72 5 10 2 366-370
A
