BALL NOSE END MILLS FGT |
|
2 flutes for steel | without working depth | high-precision | standard + long |
|

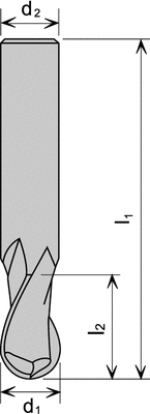

1722 2 flutes, plain shank, ball nose, centre cutting, right hand helix, PVTiH-coated - with and without clearance between shank and flute up to 20 x d - high precise r = +/- 0.005mm, d1 = /-0.015mm - without working depth |
| Solid carbide end mills |
catalogue no. |
d1 |
l2 |
l3 |
d3 |
l1 |
r |
d2 |
z |
ref.pg. arbors ref.accessories |
features |
| without working depths | high-precision | |||||||||||
 |
NW 1722 85 004 | 0.4 | 0.4 | -- | -- | 50 | 0.2 | 4 | 2 | 352-355 A |
 |
| NW 1722 85 005 | 0.5 | 0.5 | -- | -- | 50 | 0.25 | 4 | 2 | 352-355 A |
|
|
| NW 1722 85 006 | 0.6 | 0.6 | -- | -- | 50 | 0.3 | 4 | 2 | 352-355 A |
|
|
| NW 1722 85 008 | 0.8 | 0.8 | -- | -- | 50 | 0.4 | 4 | 2 | 352-355 A |
|
|
| NW 1722 85 010 | 1 | 1 | -- | -- | 50 | 0.5 | 4 | 2 | 352-355 A |
|
|
| NW 1722 85 0101 | 1 | 1 | -- | -- | 75 | 0.5 | 4 | 2 | 352-355 A |
|
|
| NW 1722 85 015 | 1.5 | 1.5 | -- | -- | 50 | 0.75 | 4 | 2 | 352-355 A |
|
|
| NW 1722 85 0151 | 1.5 | 1.5 | -- | -- | 75 | 0.75 | 4 | 2 | 352-355 A |
|
|
| NW 1722 85 020 | 2 | 2 | -- | -- | 50 | 1 | 4 | 2 | 352-355 A |
|
|
| NW 1722 85 0201 | 2 | 2 | -- | -- | 75 | 1 | 4 | 2 | 352-355 A |
|
|
| NW 1722 85 030 | 3 | 3 | -- | -- | 57 | 1.5 | 6 | 2 | 356-360 A |
|
|
| NW 1722 85 0301 | 3 | 3 | -- | -- | 75 | 1.5 | 6 | 2 | 356-360 A |
|
|
| NW 1722 85 040 | 4 | 4 | -- | -- | 57 | 2 | 6 | 2 | 356-360 A |
|
|
| NW 1722 85 0401 | 4 | 4 | -- | -- | 75 | 2 | 6 | 2 | 356-360 A |
|
|
| NW 1722 85 050 | 5 | 5 | -- | -- | 57 | 2.5 | 6 | 2 | 356-360 A |
|
|
| NW 1722 85 0501 | 5 | 5 | -- | -- | 75 | 2.5 | 6 | 2 | 356-360 A |
|
|
| NW 1722 85 060 | 6 | 6 | -- | -- | 57 | 3 | 6 | 2 | 356-360 A |
|
|
| NW 1722 85 0601 | 6 | 6 | -- | -- | 75 | 3 | 6 | 2 | 356-360 A |
|
|
| NW 1722 85 080 | 8 | 8 | -- | -- | 63 | 4 | 8 | 2 | 361-365 A |
|
|
| NW 1722 85 0801 | 8 | 8 | -- | -- | 90 | 4 | 8 | 2 | 361-365 A |
|
|
| NW 1722 85 100 | 10 | 10 | -- | -- | 72 | 5 | 10 | 2 | 366-370 A |
|
|
| NW 1722 85 1001 | 10 | 10 | -- | -- | 100 | 5 | 10 | 2 | 366-370 A |
|
|
| NW 1722 85 120 | 12 | 12 | -- | -- | 83 | 6 | 12 | 2 | 371-374 A |
|
|
| NW 1722 85 1201 | 12 | 12 | -- | -- | 110 | 6 | 12 | 2 | 371-374 A |
|
|
| NW 1722 85 160 | 16 | 16 | -- | -- | 92 | 8 | 16 | 2 | 375-378 A |
|
|
| NW 1722 85 1601 | 16 | 16 | -- | -- | 150 | 8 | 16 | 2 | 375-378 A |
|
|
