BALL NOSE END MILLS FGT
2 flutes for steel | with working depth | high-precision | standard + long
1192
2 flutes, plain shank, ball nose, centre cutting, right hand helix, PVTiH-coated
- with and without clearance between shank and flute up to 20 x d
- with working depths up to 20 times d1
- high precision, r = +/- 0.005mm, d1 = /-0.015mm
 Solid carbide end mills

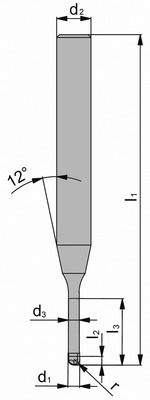

catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with working depths | high-precision
NW 1192 85 0041  0.4 0.4 1.5 0.385 50 0.2 4 2 352-355
A
NW 1192 85 0042  0.4 0.4 3 0.385 50 0.2 4 2 352-355
A
NW 1192 85 0043  0.4 0.4 5 0.385 50 0.2 4 2 352-355
A
NW 1192 85 0051  0.5 0.5 3 0.48 50 0.25 4 2 352-355
A
NW 1192 85 0052  0.5 0.5 5 0.48 50 0.25 4 2 352-355
A
NW 1192 85 0053  0.5 0.5 10 0.48 50 0.25 4 2 352-355
A
NW 1192 85 0061  0.6 0.6 3 0.58 50 0.3 4 2 352-355
A
NW 1192 85 0062  0.6 0.6 5 0.58 50 0.3 4 2 352-355
A
NW 1192 85 0063  0.6 0.6 10 0.58 50 0.3 4 2 352-355
A
NW 1192 85 0081  0.8 0.8 3 0.78 50 0.4 4 2 352-355
A
NW 1192 85 0082  0.8 0.8 5 0.78 50 0.4 4 2 352-355
A
NW 1192 85 0083  0.8 0.8 10 0.78 50 0.4 4 2 352-355
A
NW 1192 85 0084  0.8 0.8 15 0.78 50 0.4 4 2 352-355
A
NW 1192 85 0101  1 1 5 0.98 50 0.5 4 2 352-355
A
NW 1192 85 0102  1 1 10 0.98 50 0.5 4 2 352-355
A
NW 1192 85 0103  1 1 15 0.98 50 0.5 4 2 352-355
A
NW 1192 85 0104  1 1 20 0.98 75 0.5 4 2 352-355
A
NW 1192 85 0105  1 1 25 0.98 75 0.5 4 2 352-355
A
NW 1192 85 0151  1.5 1.5 5 1.45 50 0.75 4 2 352-355
A
NW 1192 85 0152  1.5 1.5 10 1.45 50 0.75 4 2 352-355
A
NW 1192 85 0153  1.5 1.5 15 1.45 50 0.75 4 2 352-355
A
NW 1192 85 0154  1.5 1.5 20 1.45 75 0.75 4 2 352-355
A
NW 1192 85 0155  1.5 1.5 25 1.45 75 0.75 4 2 352-355
A
NW 1192 85 0156  1.5 1.5 30 1.45 75 0.75 4 2 352-355
A
NW 1192 85 0201  2 2 5 1.95 50 1 4 2 352-355
A
NW 1192 85 0202  2 2 10 1.95 50 1 4 2 352-355
A
NW 1192 85 0203  2 2 15 1.95 50 1 4 2 352-355
A
NW 1192 85 0204  2 2 20 1.95 75 1 4 2 352-355
A
NW 1192 85 0205  2 2 30 1.95 75 1 4 2 352-355
A
NW 1192 85 0206  2 2 40 1.95 75 1 4 2 352-355
A
NW 1192 85 0302  3 3 10 2.95 57 1.5 6 2 356-360
A
NW 1192 85 0303  3 3 15 2.95 57 1.5 6 2 356-360
A
NW 1192 85 0304  3 3 20 2.95 75 1.5 6 2 356-360
A
NW 1192 85 0305  3 3 25 2.95 75 1.5 6 2 356-360
A
NW 1192 85 0306  3 3 30 2.95 75 1.5 6 2 356-360
A
NW 1192 85 0307  3 3 40 2.95 75 1.5 6 2 356-360
A
NW 1192 85 0402  4 4 10 3.9 57 2 6 2 356-360
A
NW 1192 85 0403  4 4 15 3.9 57 2 6 2 356-360
A
NW 1192 85 0404  4 4 20 3.9 75 2 6 2 356-360
A
NW 1192 85 0405  4 4 25 3.9 75 2 6 2 356-360
A
NW 1192 85 0406  4 4 30 3.9 75 2 6 2 356-360
A
NW 1192 85 0407  4 4 40 3.9 75 2 6 2 356-360
A
NW 1192 85 0502  5 5 10 4.9 57 2.5 6 2 356-360
A
NW 1192 85 0503  5 5 15 4.9 57 2.5 6 2 356-360
A
NW 1192 85 0504  5 5 20 4.9 75 2.5 6 2 356-360
A
NW 1192 85 0505  5 5 25 4.9 75 2.5 6 2 356-360
A
NW 1192 85 0506  5 5 30 4.9 75 2.5 6 2 356-360
A
NW 1192 85 0507  5 5 40 4.9 75 2.5 6 2 356-360
A
NW 1192 85 0602  6 6 10 5.85 57 3 6 2 356-360
A
NW 1192 85 0603  6 6 15 5.85 57 3 6 2 356-360
A
NW 1192 85 0604  6 6 20 5.85 75 3 6 2 356-360
A
NW 1192 85 0605  6 6 25 5.85 75 3 6 2 356-360
A
NW 1192 85 0606  6 6 30 5.85 75 3 6 2 356-360
A
NW 1192 85 0607  6 6 40 5.85 75 3 6 2 356-360
A
