Высокопроизводительные концевые фрезы S-CARB
Мелкозернистый твердый сплав
S-Carb Advanced Productivity Roughing &
S-Carb Advanced Productivity Finishing


ТИТАН ИНКОНЕЛЬ НЕРЖ.СТАЛЬ СТАЛЬ > 45HRC СТАЛЬ < 45HRC СТАЛЬ < 25HRC ЧУГУН НВ > 200 ЧУГУН НВ < 200 ГРАФИТ ЛАТУНЬ АЛЮМИНИЙ ПЛАСТИК СТЕКЛО-ПЛАСТИК
НЕ РЕКОМЕНДУЕТСЯ ДОПУСТИМО РЕКОМЕНДУЕТСЯ
Cерия S-Carb 43MAPR

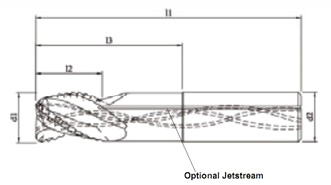

ød1 l2 l1 ød2 l3 Угловой
радиус R		 БЕЗ ПОКРЫТИЯ
mm mm mm mm mm mm EDP No.
12 18 83 12 38 44650
12 18 83 12 38 2.00 44685
12 18 83 12 38 3.00 44686
12 18 83 12 38 4.00 44687
16 24 92 16 51 44652
16 24 92 16 51 2.00 44688
16 24 92 16 51 3.00 44689
16 24 92 16 51 4.00 44690
20 30 86 20 45 44646
20 30 86 20 45 3.00 44647
20 30 86 20 45 4.00 44648
20 30 86 20 45 5.00 44649
20 35 104 20 64 44653
20 35 104 20 64 3.00 44691
20 35 104 20 64 4.00 44692
20 35 104 20 64 5.00 44693
25 35 108 25 55 3.00 44809
25 35 108 25 55 4.00 44810
25 35 108 25 55 5.00 44811
25 35 140 25 80 44654
25 35 140 25 80 3.00 44694
25 35 140 25 80 4.00 44695
25 35 140 25 80 5.00 44696
25 35 140 25 90 3.00 44645
25 43 110 25 54 3.00 44742
Available on request: TI-NAMITE B Coating and Jetstream technology
РЕЖИМЫ ОБРАБОТКИ
S-Carb APR Roughing
Metric		 CUT SPEED DIAMETER
Type Ap x D1 Ae x D1 m/min 12 16 20 25
■ ALUMINUM ALLOY
2024, 5052, 5086,
6061, 6063, 7075		 Slot < 30 kW 1 1 1000 RPM 26525 19894 15915 12732
Fz 0.08 0.11 0.15 0.18
Feed (mm/min) 6366 6565 7162 6875
Slot < 50 kW 1 1 1500 RPM 39788 29841 23873 19098
Fz 0.12 0.16 0.22 0.27
Feed (mm/min) 14324 14324 15756 15469
Profile 1.5 0.5 2000 RPM 53050 39788 31830 25464
Fz 0.12 0.16 0.22 0.27
Feed (mm/min) 19098 19098 21008 20626
■ ALUMINUM ALLOY (LITHIUM)*
2090, 2091, 2099, 2195,
2199, 2297, 8090		 Slot < 30 kW 1 1 800 RPM 21220 15915 12732 10186
Fz 0.08 0.11 0.15 0.18
Feed (mm/min) 5093 5252 5729 5500
Slot < 50 kW 1 1 1200 RPM 31830 23873 19098 15278
Fz 0.12 0.16 0.22 0.27
Feed (mm/min) 11459 11459 12605 12376
Profile 1.5 0.5 1500 RPM 39788 29841 23873 19098
Fz 0.12 0.16 0.22 0.27
Feed (mm/min) 14324 14324 15756 15469
Cерия S-Carb 43MAPF

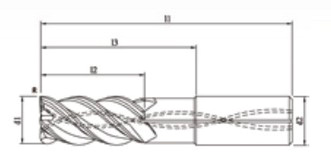

ød1 l2 l1 ød2 l3 Угловой
радиус R		 БЕЗ ПОКРЫТИЯ
mm mm mm mm mm mm EDP No.
6 24 58 6 30 44627
8 32 64 8 40 44628
10 40 80 10 50 44629
12 30 83 12 40 44630
12 30 83 12 40 2.00 44745
12 30 83 12 40 3.00 44746
12 30 83 12 40 4.00 44747
12 30 83 12 50 0.50 44641
12 30 83 12 50 5.00 44642
12 48 100 12 62 44631
12 48 100 12 62 2.00 44748
12 48 100 12 62 3.00 44749
12 48 100 12 62 4.00 44750
16 42 93 16 51 5.00 44643
16 40 92 16 51 44634
16 40 92 16 51 2.00 44751
16 40 92 16 51 3.00 44752
16 40 92 16 51 4.00 44753
16 64 125 16 82 44635
16 64 125 16 82 2.00 44754
16 64 125 16 82 3.00 44755
16 64 125 16 82 4.00 44756
25 35 140 25 80 5.00 44696
20 50 108 20 63 44636
20 50 108 20 63 3.00 44757
20 50 108 20 63 4.00 44758
20 50 108 20 63 5.00 44759
20 80 150 20 102 44637
20 80 150 20 102 3.00 44760
20 80 150 20 102 4.00 44761
20 80 150 20 102 5.00 44762
25 63 130 25 79 44638
25 63 130 25 79 3.00 44763
25 63 130 25 79 4.00 44764
25 63 130 25 79 5.00 44765
25 100 175 25 120 44639
25 100 175 25 120 3.00 44766
25 100 175 25 120 4.00 44767
25 100 175 25 120 5.00 44768
Available on request: TI-NAMITE B Coating and Jetstream technology
РЕЖИМЫ ОБРАБОТКИ
S-Carb APF Finishing
Metric		 CUT SPEED DIAMETER
Type Ap x D1 Ae x D1 m/min 6 8 10 12 16 20 25
■ ALUMINUM ALLOY
2024, 5052, 5086,
6061, 6063, 7075		 Profile 2.5 0.1 800 RPM 42440 31830 25464 21220 15915 12732 10186
Fz 0.05 0.055 0.06 0.07 0.10 0.14 0.17
Feed (mm/min) 8488 7003 6111 5942 6366 7130 6926
4 0.1 800 RPM 42440 31830 25464 21220 15915 12732 10186
Fz 0.04 0.045 0.05 0.05 0.07 0.10 0.12
Feed (mm/min) 6790 5729 5093 4244 4456 5093 4889
■ ALUMINUM ALLOY (LITHIUM)*
2090, 2091, 2099, 2195,
2199, 2297, 8090		 Profile 2.5 0.1 600 RPM 31830 23873 19098 15915 11936 9549 7639
Fz 0.05 0.055 0.06 0.07 0.10 0.14 0.17
Feed (mm/min) 6366 5252 4584 4456 4775 5347 5195
4 0.1 600 RPM 31830 23873 19098 15915 11936 9549 7639
Fz 0.04 0.045 0.05 0.05 0.07 0.10 0.12
Feed (mm/min) 5093 4297 3820 3183 3342 3820 3667
