| Euro-Patent |
NEW
| |
order number
clockwise
cutting |
40 35 180
|
40 40 180
|
70 40 180
|
40 50 180
|
| D |
Ø cutter |
35 |
40 |
40 |
50 |
| MK |
shaft |
MK
3 |
MK
4 |
MK
5 |
MK
4 |

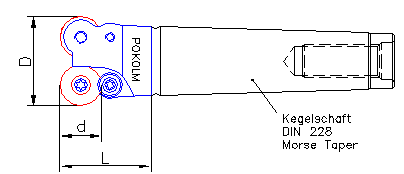

| d |
Ø carbide
inserts |
16 |
20 |
20 |
20 |
| L |
cutter length
|
40
|
40
|
70
|
40
|
| Z |
# of inserts
|
3
|
2
|
2
|
3
|
| n |
rpm |
steel
cast |
2300
2100 |
2000
1800 |
1800
1600 |
1500
1300 |
| Vf |
feed rate
mm/min. |
steel
cast |
2300 |
2000 |
2000 |
2000
|
| ap |
cutting depth mm |
steel
cast |
< 4 |
5 - 8 |
5 - 8 |
5 - 8
|
| inserts |
04 16 800
04 16 860 |
06 20 800 - 06
20 860 |
| torx
screw |
45
500 |
| torx wrenches
|
20
500 |
| clamp washer
|
- |
10
510 |
|
