UNIWORX® BALL- AND BULL END COMBI END MILLS |
|
r 3 | r 4 |
|
Our ball nose and bull end combi end mills provide maximum precision because of both the V-shaped insert seat and because the insert was ground in only one setup. The helix-shaped rake angle allows very easy cutting and extremely smooth operation. Only for finishing and pre-finishing operations. |
| Milling cutter bodies |
catalogue no. |
d1 |
l |
r |
l3 |
l2 |
l1 |
d2 |
d3 |
z |
ref.pg. arbors ref.accessories |
features |

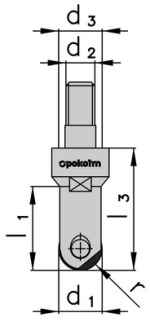

| Threaded shank end mill bodies | ||||||||||||
 |
08 214 | 8 | 8 | 3 | 4 | 26 | - | 18.9 | M 5 | 9.6 | 2 | 312-313 A, B, C, D, E |
 |
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
 |
 |
 |
 |
 |
||||||||
| 30 522 A > Page 401 |
08 500 B > Page 403 |
TV 1-5 C > Page 404 |
T10 500 D > Page 405 |
T10 502 E > Page 405 |
||||||||

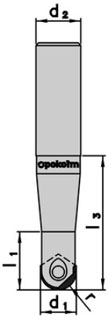

| Plain shank ball nose end mill bodies | ||||||||||||
 |
30 08 114 | 8 | 8 | 3 | 4 | 30 | -- | 20 | Ø 12 | -- | 2 | 385 A, B, C, D, E |
|
| 50 08 114 | 8 | 8 | 3 | 4 | 50 | -- | 20 | Ø 12 | -- | 2 | 385 A, B, C, D, E |
|
|
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
|
|
|
|
|
||||||||
| 30 522 A > Page 401 |
08 500 B > Page 403 |
TV 1-5 C > Page 404 |
T10 500 D > Page 405 |
T10 502 E > Page 405 |
||||||||
