TRIGAWORX® |
|
size L |
|
- allows extremely high feed rates per tooth up to fz = 3.0 mm - better utilization of insert because of its 3 effective cutting edges - very smooth operation, especially in deep slots or profiles Especially for roughing operations |
| Milling cutter bodies |
catalogue no. |

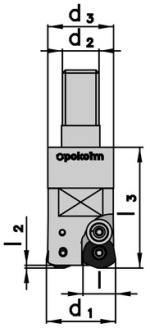

d1 |
l |
r* |
l3 |
l2 |
l1 |
d2 |
d3 |
z |
ref.pg. arbors ref.accessories |
features |
| Threaded shank end mill bodies | ||||||||||||
 |
2 32 274 SG | 32 | 14.3 | 4.6* | 42.5 | 2 | -- | M 16 | 29 | 2 | 330-335 A, B, C, D, E, F |
 |
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
 |
 |
 |
 |
 |
 |
|||||||
| 45 500 A > Page 401 |
10 510 B > Page 403 |
20 500 C > Page 403 |
TV 2-8 D > Page 404 |
T20 500 E > Page 405 |
T20 502 F > Page 405 |
|||||||
| Shell type milling cutter bodies | ||||||||||||
 |
4 52 374 SG | 52 | 14.3 | 4.6* | 52.5 | 2 | -- | Ø 22 | 40 | 4 | 342-344 A, B, C, D, E, F |
|
| 4 66 374 SG | 66 | 14.3 | 4.6* | 52.5 | 2 | -- | Ø 27 | 48 | 4 | 345-347 A, B, C, D, E, F |
|
|
| 5 80 374 SG | 80 | 14.3 | 4.6* | 52.5 | 2 | -- | Ø 27 | 60 | 5 | 342-344 A, B, C, D, E, F |
|
|
| 310-311 A, B, C, D, E, F |
||||||||||||
|
|
|
|
|
|
|||||||
| 45 500 A > Page 401 |
10 510 B > Page 403 |
20 500 C > Page 403 |
TV 2-8 D > Page 404 |
T20 500 E > Page 405 |
T20 502 F > Page 405 |
|||||||
