TRIGAWORX®
4 flutes for steel | extreme milling | with working depth | standard + long
0374
4 flutes, plain shank, special style of end teeth, PVAlsa-coated
- standard and long series
- with working depth
- excellent smoothness of operation
- extremely hiegh feed rates possible
- Attention: r* = corner radius to be programmed
 Solid carbide end mills
catalogue no.

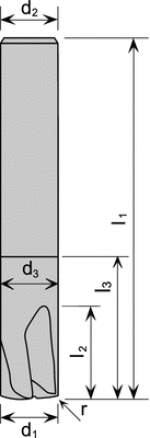

d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with working depth | standard + long series
NW 0374 55 032  3 3 16 2.9 57 0.2* 6 4 356-360
A
NW 0374 55 042  4 4 18 3.8 57 0.3* 6 4 356-360
A
NW 0374 55 052  5 5 21 4.8 57 0.4* 6 4 356-360
A
NW 0374 55 062  6 6 21 5.8 57 0.5* 6 4 356-360
A
NW 0374 55 0622  6 6 64 5.8 100 0.5* 6 4 356-360
A
NW 0374 55 082  8 8 27 7.8 63 0.7* 8 4 361-365
A
NW 0374 55 0822  8 8 64 7.8 100 0.7* 8 4 361-365
A
NW 0374 55 102  10 10 32 9.8 72 0.85* 10 4 366-370
A
NW 0374 55 1022  10 10 60 9.8 100 0.85* 10 4 366-370
A
NW 0374 55 122  12 12 38 11.8 83 1* 12 4 371-374
A
NW 0374 55 1222  12 12 65 11.8 110 1* 12 4 371-374
A
NW 0374 55 162  16 16 50 15.8 92 1.4* 16 4 375-378
A
NW 0374 55 1622  16 16 65 15.8 150 1.4* 16 4 375-378
A

TRIGAWORX®
4 flutes for steel | extreme milling | with working depth | standard + long | ICS
0374
4 flutes, plain shank, special style of end teeth, PVAlsa-coated
- standard and long series
- with working depth
- excellent smoothness of operation
- extremely hiegh feed rates possible
- internal coolant or compressed-air supply
- Attention: r* = corner radius to be programmed
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with wd | standard + long series | IC
NW 0474 55 041  4 4 12 3.8 57 0.3* 6 4 356-360
A
NW 0474 55 061  6 6 21 5.8 57 0.5* 6 4 356-360
A
NW 0474 55 0611  6 6 64 5.8 100 0.5* 6 4 356-360
A
NW 0474 55 081  8 8 27 7.8 63 0.7* 8 4 361-365
A
NW 0474 55 0811  8 8 64 7.8 100 0.7* 8 4 361-365
A
NW 0474 55 101  10 10 32 9.8 72 0.85* 10 4 366-370
A
NW 0474 55 1011  10 10 60 9.8 100 0.85* 10 4 366-370
A
NW 0474 55 121  12 12 38 11.8 83 1* 12 4 371-374
A
NW 0474 55 1211  12 12 65 11.8 110 1* 12 4 371-374
A
NW 0474 55 162  16 16 50 15.8 92 1.4* 16 4 375-378
A
NW 0474 55 1621  16 16 65 15.8 150 1.4* 16 4 375-378
A
