TORIC END MILLS FGT
2 flutes for copper, graphite, non-ferrous materials + titan | with working depth
0442

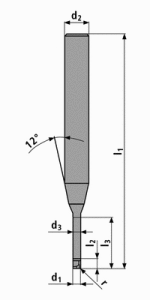

2 flutes, plain shank, toric, 30° right hand helix, PVDiaG-coated
- standard series
- modified diamond-coating
- with working depth
 Solid carbide end mills
catalogue no.
d1
l2
l3
d3
l1
r
d2
z		 ref.pg. arbors
ref.accessories
features
 with working depth | standard series
NW 0442 49 0082  0.8 0.8 5 0.78 50 0.1 4 2 352-355
A
NW 0442 49 0101  1 1 5 0.98 50 0.2 4 2 352-355
A
NW 0442 49 0151  1.5 1.5 5 1.45 50 0.2 4 2 352-355
A
NW 0442 49 0201  2 2 10 1.95 50 0.2 4 2 352-355
A
NW 0442 49 0301  3 3 10 2.95 57 0.2 4 2 352-355
A
NW 0442 49 0401  4 4 20 3.9 57 0.2 4 2 352-355
A
NW 0442 49 0501  5 5 20 4.9 57 0.3 6 2 356-360
A
NW 0442 49 0601  6 6 20 5.85 57 0.5 6 2 356-360
A
NW 0442 49 0800  8 8 20 7.85 63 0.5 8 2 361-365
A
NW 0442 49 1000  10 10 20 9.85 72 0.5 10 2 366-370
A
NW 0442 49 1215  12 12 25 11.85 83 1.5 12 2 371-374
A
