FOR MORSE TAPER SHANKS |
|
MTS 2 |
|
- arbors are pre-balanced; for balancing grades see features - for morse-taper extentions without or with tang - particularly slim form - other dimensions on enquiry |
| Arbor and Adapter Systems |
catalogue no. |

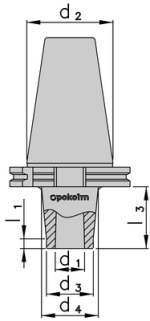

d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| Int. taper 50 DIN 69 871 A | |||||||||||
 |

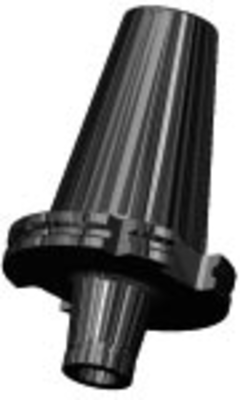

40 2 710 | MTS 2 |
50 | 30 | 36 | SK 50 | DIN 69871 AD |
-- | -- | A, D, E, F, G, H | |
| 90 2 710 | MTS 2 |
90 | 30 | 46 | SK 50 | DIN 69871 AD |
-- | -- | B, D, E, F, G, H | ||
| 140 2 710 | MTS 2 |
50 | 30 | 56 | SK 50 | DIN 69871 AD |
-- | -- | C, D, E, F, G, H | ||
 M10x40 A > Page 402 |
M10x90 B > Page 402 |
M10x140 C > Page 402 |
 GWST-M5x8-914 D > Page 403 |
 1003 E > Page 404 |
|||||||
 KBSK50-69872A A > Page 406 |
 KBSK50-69872B G > Page 406 |
 ZGHM2414 H > Page 407 |
|||||||||
| Hollow taper shank 63 E | |||||||||||
 |

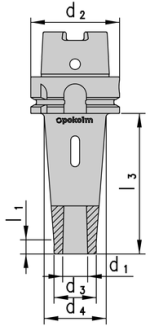

100 MK2 AL A63 | MTS 2 |
100 | 30 | 44 | HSK 63 |
form A | -- | 7.8 | A, B |
 |
 KMR-63A A > Page 406 |
 SCHLUESSELHSK63 B > Page 406 |
||||||||||
|
FOR MORSE TAPER SHANKS |
|
MTS 3 |
|
- arbors are pre-balanced; for balancing grades see features - for morse-taper extentions without or with tang - particularly slim form - other dimensions on enquiry |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| Int. taper 50 DIN 69 871 A | |||||||||||
|

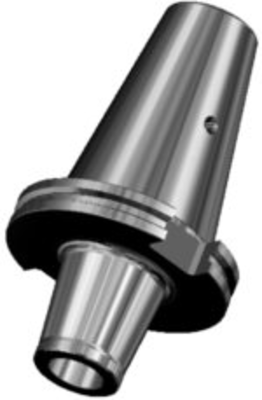

50 3 710 | MTS 3 |
50 | 38 | 46 | SK 50 | DIN 69871 AD |
-- | -- | A, E, F, G, H, I | |
| 100 3 710 | MTS 3 |
100 | 38 | 56 | SK 50 | DIN 69871 AD |
-- | -- | B, E, F, G, H, I | ||
| 150 3 710 | MTS 3 |
150 | 38 | 62 | SK 50 | DIN 69871 AD |
-- | -- | C, E, F, G, H, I | ||
| 200 3 710 | MTS 3 |
200 | 38 | 70 | SK 50 | DIN 69871 AD |
-- | -- | D, E, F, G, H, I | ||
|
M12x40 A > Page 402 |
M12x90 B > Page 402 |
M12x135 C > Page 402 |
M12x185 D > Page 402 |
GWST-M5x8-914 E > Page 403 |
|||||||
|
1003 F > Page 404 |
KBSK50-69872A G > Page 406 |
KBSK50-69872B H > Page 406 |
ZGHM2414 I > Page 407 |
||||||||
| Hollow taper shank 63 E | |||||||||||
|
120 MK3 AL A63 | MTS 3 |
130 | 35 | 46 | HSK 63 |
form A | -- | 7.8 | A, B |
|
|
KMR-63A A > Page 406 |
SCHLUESSELHSK63 B > Page 406 |
||||||||||
|
FOR MORSE TAPER SHANKS |
|
MTS 4 |
|
- arbors are pre-balanced; for balancing grades see features - for morse-taper extentions without or with tang - particularly slim form - other dimensions on enquiry |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| Int. taper 50 DIN 69 871 A | |||||||||||
|

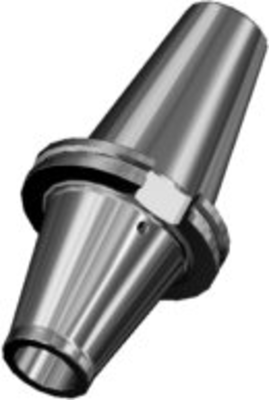

80 4 710 | MTS 4 |
80 | 44 | 56 | SK 50 | DIN 69871 AD |
-- | -- | A, B, B, D, E, F | |
| 130 4 710 | MTS 4 |
130 | 44 | 70 | SK 50 | DIN 69871 AD |
-- | -- | A, B, B, D, E, F | ||
| 180 4 710 | MTS 4 |
180 | 44 | 70 | SK 50 | DIN 69871 AD |
-- | -- | A, B, B, D, E, F | ||
| 250 4 710 | MTS 4 |
250 | 44 | 70 | SK 50 | DIN 69871 AD |
-- | -- | A, B, B, D, E, F | ||
|
M16x50 A > Page 402 |
GWST-M5x8-914 B > Page 403 |
1004 C > Page 404 |
KBSK50-69872A D > Page 406 |
KBSK50-69872B E > Page 406 |
|||||||
|
ZGHM2414L F > Page 407 |
|||||||||||
|
FOR MORSE TAPER SHANKS |
|
MTS 5 |
|
- arbors are pre-balanced; for balancing grades see features - for morse-taper extentions without or with tang - particularly slim form - other dimensions on enquiry |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| Int. taper 50 DIN 69 871 A | |||||||||||
|

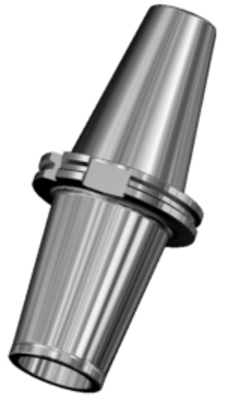

100 5 710 | MTS 5 |
100 | 56 | 70 | SK 50 | DIN 69871 AD |
-- | -- | A, B, C, D, E, F | |
| 150 5 710 | MTS 5 |
150 | 56 | 70 | SK 50 | DIN 69871 AD |
-- | -- | A, B, C, D, E, F | ||
| 200 5 710 | MTS 5 |
200 | 56 | 75 | SK 50 | DIN 69871 AD |
-- | -- | A, B, C, D, E, F | ||
|
M20x50 A > Page 402 |
GWST-M5x8-914 B > Page 403 |
1005 C > Page 404 |
KBSK50-69872A D > Page 406 |
KBSK50-69872B E > Page 406 |
|||||||
|
ZGHM2416L F > Page 407 |
|||||||||||
