HSM PRECISION COLLET CHUCKS |
|
for ER 20 collets |
|
- SK, BT and HSK arbors are already pre-balanced; for balancing grade, see features - special HSM design - extent of delivery includes precision collet chuck tightening nut - Other dimensions on request. |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| SK 30 DIN 69 871 AD | |||||||||||
 |
50 ER20 730 | ER 20 | 50 | 28 | 32 | SK 30 | DIN 69871 AD |
-- | 19.8 | A,B,C,D |
 |
 20 501 A > Page 404 |
 ER20 001 B > Page 405 |
 KBSK40-69872A C > Page 406 |
 KBSK40-69872B D > Page 406 |
||||||||
| BT 30 MAS BT | |||||||||||
 |
50 ER20 734 | ER 20 | 50 | 28 | 32 | SK 30 | JIS B 6339 AD |
-- | 19.3 | A,B |
|
|
20 501 A > Page 404 |
ER20 001 B > Page 405 |
||||||||||

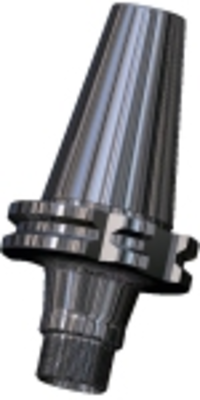

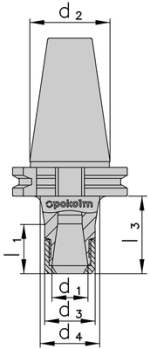

| Int. taper 40 DIN 69 871 AD | |||||||||||
|
50 ER20 750 | ER 20 | 50 | 28 | 33 | SK 40 | DIN 69871 AD |
-- | 33.8 | A,B,C,D |
|
| 100 ER20 750 | ER 20 | 100 | 28 | 40 | SK 40 | DIN 69871 AD |
-- | 33.8 | A,B,C,D |
|
|
|
20 501 A > Page 404 |
ER20 001 B > Page 405 |
KBSK40-69872A C > Page 406 |
KBSK40-69872B D > Page 406 |
||||||||

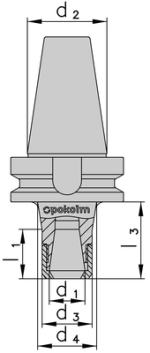

| Int. taper 40 MAS BT | |||||||||||
|
50 ER20 734 | ER 20 | 50 | 28 | 32 | BT 40 | JIS B 6339 AD |
-- | 19.3 | A,B |
|
| 100 ER20 754 | ER 20 | 100 | 28 | 40 | BT 40 | JIS B 6339 AD |
-- | 33.8 | A,B |
|
|
|
20 501 A > Page 404 |
ER20 001 B > Page 405 |
||||||||||

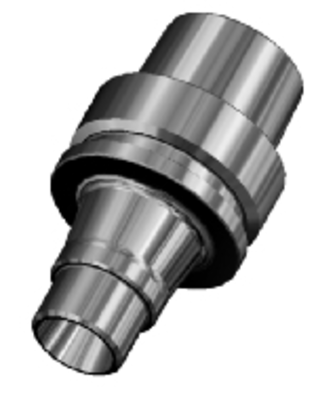

| HSK 32 Form E | |||||||||||
 |
40 ER20 E32 | ER 20 | 40 | 28 | 28 | HSK 32 |
form E | -- | 11.8 | A,B,C,D |
|
|
20 501 A > Page 404 |
ER20 001 B > Page 405 |
 KMR-32 C > Page 406 |
 SCHLUESSELHSK32 D > Page 406 |
||||||||
| Hollow taper shank 40 E | |||||||||||
 |
50 ER20 E40 | ER 20 | 50 | 28 | 32 | HSK 40 |
form E | -- | 33.8 | A,B,C,D |
|
|
20 501 A > Page 404 |
ER20 001 B > Page 405 |
KMR-40A C > Page 406 |
SCHLUESSELHSK40 D > Page 406 |
||||||||

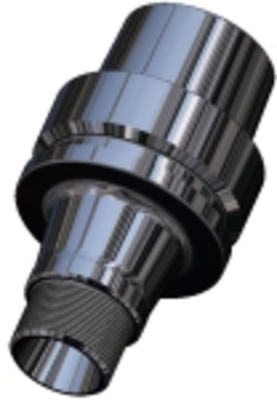

| Hollow taper shank 50 E | |||||||||||
 |
50 ER20 E50 | ER 20 | 50 | 28 | 32 | HSK 50 |
form E | -- | 33.8 | A,B,C,D |
|
|
20 501 A > Page 404 |
ER20 001 B > Page 405 |
KMR-50A C > Page 406 |
SCHLUESSELHSK50 D > Page 406 |
||||||||

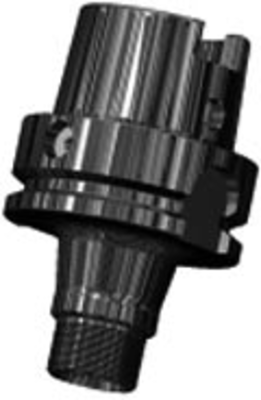

| Hollow taper shank 63 A | |||||||||||
 |
50 ER20 A63 | ER 20 | 50 | 28 | 32 | HSK 50 |
form A | -- | 33.8 | A,B,C,D |
|
| 100 ER20 A63 | ER 20 | 100 | 28 | 40 | HSK 50 |
form A | -- | 33.8 | A,B,C,D |
|
|
|
20 501 A > Page 404 |
ER20 001 B > Page 405 |
KMR-63A C > Page 406 |
SCHLUESSELHSK63 D > Page 406 |
||||||||
