FACE MILLING CUTTERS |
|
Baseworx® |
|
ReMARKably economic Face Milling Cutters for highly efficient milling with large depths of cut. These tools are outstandingly suitable through its reduced power consumption. In addition these milling cutters can be used for chamfering. |
| Milling cutter bodies |
catalogue no. |

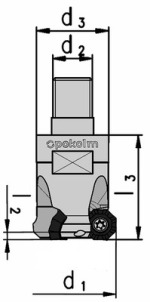

d1 |
l |
r* |
l3 |
l2 |
l1 |
d2 |
d3 |
z |
ref.pg. arbors ref.accessories |
features |
| Threaded shank end mill bodies | ||||||||||||
 |
3 35 288 | 35 | -- | 42 | 3.5 | -- | M 16 | 29 | 3 | 330-335 A, B, C, D, E |
 |
|
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
| 310-311 A, B, C, D, E, F |
||||||||||||
 |
 |
 |
 |
 |
||||||||
| 40 505 K A > Page 401 |
15 500 B > Page 403 |
TV 2-8 C > Page 404 |
T15 500 D > Page 405 |
T15 502 E > Page 405 |
||||||||
| Shell type milling cutter bodies | ||||||||||||
 |
4 40 388 | 40 | -- | 42 | 3.5 | -- | Ø 16 | 35 | 4 | 340-341 A, B, C, D, E, F |
|
|
| 4 42 388 | 42 | -- | 42 | 3.5 | -- | Ø 16 | 35 | 4 | 340-341 A, B, C, D, E, F |
|
||
| 5 50 388 | 50 | -- | 52 | 3.5 | -- | Ø 22 | 40 | 5 | 342-344 A, C, D, E, F |
|
||
| 5 52 388 | 52 | -- | 52 | 3.5 | -- | Ø 22 | 40 | 5 | 342-344 A, C, D, E, F |
|
||
| 7 63 388 | 63 | -- | 52 | 3.5 | -- | Ø 27 | 48 | 7 | 345-347 A, C, D, E, F |
|
||
| 7 66 388 | 66 | -- | 52 | 3.5 | -- | Ø 27 | 48 | 7 | 345-347 A, C, D, E, F |
|
||
| 8 80 388 | 80 | -- | 52 | 3.5 | -- | Ø 27 | 60 | 8 | 345-347 A, C, D, E, F |
|
||
| 9 100 388 | 100 | -- | 52 | 3.5 | -- | Ø 32 | 70 | 9 | 348 A, C, D, E, F |
|
||
| 12 125 388 | 125 | -- | 52 | 3.5 | -- | Ø 40 | 90 | 12 | 349 A, C, D, E, F |
|
||
|
 |
|
|
|
|
|||||||
| 40 505 K A > Page 401 |
GWSTPS8ISK B > Page 403 |
15 500 C > Page 403 |
TV 2-8 D > Page 404 |
T15 500 E > Page 405 |
T15 502 F > Page 405 |
|||||||
