DRILL CHUCKS |
|
diameter 0.3 - 8 mm |
|
CNC precision Drill chucks - can be used for up to max. 7,000 rpm - with internal coolant supply - independent of rotating direction - extremely short and slim design - Scope of delivery includes small and large seal ring |
| Arbor and Adapter Systems |
catalogue no. |

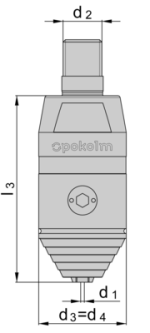

d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| Int. taper 40 DIN 69 871 AD/B | |||||||||||
 |
BF 0.3-8 750 IC | diam. 8 |
57 | -- | 36 | SK 40 | DIN 69871 AD |
-- | -- | A,B,C,D,E,F |
 |
 INBUS 4T A > Page 404 |
 KBSK40-69872A B > Page 406 |
 KBSK40-69872B C > Page 406 |
 BF 08DS04 D > Page 407 |
BF 08DS08 E > Page 407 |
|||||||
 BF08MW F > Page 407 |

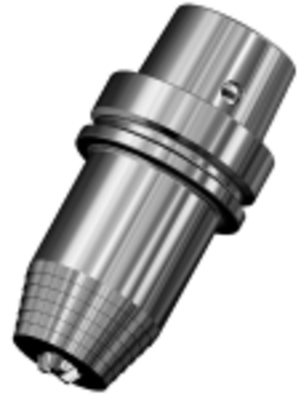

|||||||||||
| Hollow taper shank 40 E | |||||||||||
|
BF 0.3-8 E40 IC | diam. 8 |
74 | -- | 36 | HSK 40 |
form E | -- | -- | A,B,C,D,E,F |
|
|
INBUS 4T A > Page 404 |
 KMR-40A B > Page 406 |
 SCHLUESSELHSK40 C > Page 406 |
BF 08DS04 D > Page 407 |
BF 08DS08 E > Page 407 |
|||||||
|
BF08MW F > Page 407 |
|||||||||||
| Hollow taper shank 50 E | |||||||||||
|
BF 0.3-8 E50 IC | diam. 8 |
72 | -- | 36 | HSK 50 |
form E | -- | -- | A,B,C,D,E,F |
|
|
INBUS 4T A > Page 404 |
KMR-50A B > Page 406 |
SCHLUESSELHSK50 C > Page 406 |
BF 08DS04 D > Page 407 |
BF 08DS08 E > Page 407 |
|||||||
|
BF08MW F > Page 407 |
|||||||||||
| Hollow taper shank 63 A | |||||||||||
 |
BF 0.3-8 A63 IC | diam. 8 |
73 | -- | 36 | HSK 63 |
form A | -- | -- | A,B,C,D,E,F |
|
|
INBUS 4T A > Page 404 |
KMR-63A B > Page 406 |
SCHLUESSELHSK63 C > Page 406 |
BF 08DS04 D > Page 407 |
BF 08DS08 E > Page 407 |
|||||||
|
BF08MW F > Page 407 |
|||||||||||
| With threaded shank M 16 | |||||||||||
 |
BF 0.3-8 M16 IC | diam. 8 |
75 | 36 | 36 | M 16 | -- | -- | -- | 330-335 A,B,C,D |
|
|
INBUS 4T A > Page 404 |
BF 08DS04 B > Page 407 |
BF 08DS08 C > Page 407 |
BF08MW D > Page 407 |
||||||||
|
DRILL CHUCKS |
|
diameter 0.5 - 13 mm |
|
|
CNC precision Drill chucks - can be used for up to max. 7,000 rpm - with internal coolant supply - independent of rotating direction - extremely short and slim design - Scope of delivery includes small and large seal ring |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |

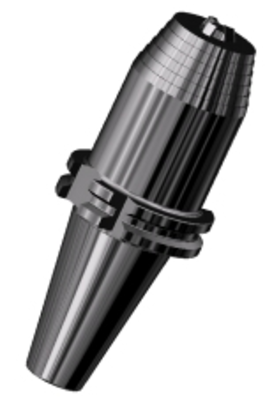

| Int. taper 40 DIN 69 871 AD/B | |||||||||||
|
BF 0.5-13 750 IC | diam. 13 |
97 | -- | 50 | SK 40 | DIN 69871 AD |
-- | -- | A,B,C,D,E,F |
|
|
INBUS 6T A > Page 404 |
KBSK40-69872A B > Page 406 |
KBSK40-69872B C > Page 406 |
BF 08DS06 D > Page 407 |
BF 13DS13 E > Page 407 |
|||||||
|
BF13MW F > Page 407 |
|||||||||||
| Int. taper 50 DIN 69 871 AD/B | |||||||||||
|
BF 0.5-13 710 IC | diam. 13 |
93 | -- | 50 | SK 50 | DIN 69871 AD |
-- | -- | A,B,C,D,E,F |
|
|
INBUS 6T A > Page 404 |
KBSK50-69872A B > Page 406 |
KBSK50-69872B C > Page 406 |
BF 08DS06 D > Page 407 |
BF 13DS13 E > Page 407 |
|||||||
|
BF13MW F > Page 407 |
|||||||||||
| Hollow taper shank 50 E | |||||||||||
|
BF 0.5-13 E50 IC | diam. 13 |
96 | -- | 50 | HSK 50 |
form E | -- | -- | A,B,C,D,E,F |
|
|
INBUS 6T A > Page 404 |
KMR-50A B > Page 406 |
SCHLUESSELHSK50 C > Page 406 |
BF 08DS06 D > Page 407 |
BF 13DS13 E > Page 407 |
|||||||
|
BF13MW F > Page 407 |
|||||||||||
| Hollow taper shank 63 A | |||||||||||
|
BF 0.5-13 A63 IC | diam. 13 |
84 | -- | 50 | HSK 63 |
form A | -- | -- | A,B,C,D,E,F |
|
|
INBUS 6T A > Page 404 |
KMR-63A B > Page 406 |
SCHLUESSELHSK63 C > Page 406 |
BF 08DS06 D > Page 407 |
BF 13DS13 E > Page 407 |
|||||||
|
BF13MW F > Page 407 |
|||||||||||
| Hollow taper shank 100 A | |||||||||||
|
BF 0.5-13 A100 IC | diam. 13 |
89 | -- | 50 | HSK 100 |
form A | -- | -- | A,B,C,D,E,F |
|
|
INBUS 6T A > Page 404 |
KMR-100A B > Page 406 |
SCHLUESSELHSK100 C > Page 406 |
BF 08DS06 D > Page 407 |
BF 13DS13 E > Page 407 |
|||||||
|
BF13MW F > Page 407 |
|||||||||||
| With threaded shank M 16 | |||||||||||
|
BF 0.5-13 M16 IC | diam. 13 |
100 | 50 | 50 | M 16 | -- | -- | -- | 330-335 A,B,C,D |
|
|
INBUS 6T A > Page 404 |
BF 08DS06 B > Page 407 |
BF 13DS13 C > Page 407 |
BF13MW D > Page 407 |
||||||||
|
DRILL CHUCKS |
|
diameter 2.5 - 16 mm |
|
|
CNC precision Drill chucks - can be used for up to max. 7,000 rpm - with internal coolant supply - independent of rotating direction - extremely short and slim design - Scope of delivery includes small and large seal ring |
| Arbor and Adapter Systems |
catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| Int. taper 40 DIN 69 871 AD/B | |||||||||||
|
BF 2.5-16 750 IC | diam. 16 |
82 | -- | 57 | SK 40 | DIN 69871 AD |
-- | -- | A,B,C,D,E,F |
|
|
INBUS 6T A > Page 404 |
KBSK40-69872A B > Page 406 |
KBSK40-69872B C > Page 406 |
BF 16DS06 D > Page 407 |
BF 16DS16 E > Page 407 |
|||||||
|
BF13MW F > Page 407 |
|||||||||||
| Int. taper 50 DIN 69 871 AD/B | |||||||||||
|
BF 2.5-16 710 IC | diam. 16 |
98 | -- | 57 | SK 50 | DIN 69871 AD |
-- | -- | A,B,C,D,E,F |
|
|
INBUS 6T A > Page 404 |
KBSK50-69872A B > Page 406 |
KBSK50-69872B C > Page 406 |
BF 16DS06 D > Page 407 |
BF 16DS16 E > Page 407 |
|||||||
|
BF13MW F > Page 407 |
|||||||||||
| Hollow taper shank 50 E | |||||||||||
|
BF 2.5-16 E50 IC | diam. 16 |
101 | -- | 57 | HSK 50 |
form E | -- | -- | A,B,C,D,E,F |
|
|
INBUS 6T A > Page 404 |
KMR-50A B > Page 406 |
SCHLUESSELHSK50 C > Page 406 |
BF 16DS06 D > Page 407 |
BF 16DS16 E > Page 407 |
|||||||
|
BF13MW F > Page 407 |

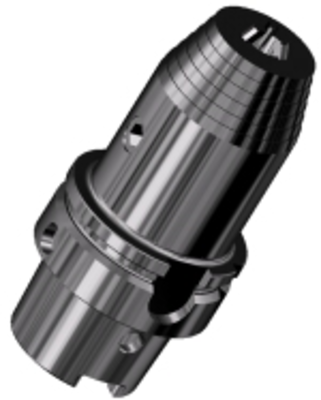

|||||||||||
| Hollow taper shank 63 A | |||||||||||
|
BF 2.5-16 A63 IC | diam. 16 |
89 | -- | 57 | HSK 63 |
form A | -- | -- | A,B,C,D,E,F |
|
|
INBUS 6T A > Page 404 |
KMR-63A B > Page 406 |
SCHLUESSELHSK63 C > Page 406 |
BF 16DS06 D > Page 407 |
BF 16DS16 E > Page 407 |
|||||||
|
BF13MW F > Page 407 |
|||||||||||
| Hollow taper shank 100 A | |||||||||||
|
BF 2.5-16 A100 IC | diam. 16 |
83 | -- | 57 | HSK 100 |
form A | -- | -- | A,B,C,D,E,F |
|
|
INBUS 6T A > Page 404 |
KMR-100A B > Page 406 |
SCHLUESSELHSK100 C > Page 406 |
BF 16DS06 D > Page 407 |
BF 16DS16 E > Page 407 |
|||||||
|
BF13MW F > Page 407 |
|||||||||||
| With threaded shank M 16 | |||||||||||
|
BF 2.5-16 M16 IC | diam. 16 |
100 | 50 | 50 | M 16 | -- | -- | -- | 330-335 A,B,C,D |
|
|
INBUS 6T A > Page 404 |
BF 16DS06 B > Page 407 |
BF 16DS16 C > Page 407 |
BF13MW D > Page 407 |
||||||||
