FOR POKOLM DUOPLUG® |
|
M 7 - M 16 |
|
These solid carbide adapters of the POKOLM DuoPlug® system are suitable
for high-speed milling and ensure extreme precision because of their backlash-free
connections, as well as absolute concentricity, rigidity, and a safe load transmission.
They also have the retention forces required for extreme roughing applications. |
| Arbor and Adapter Systems |

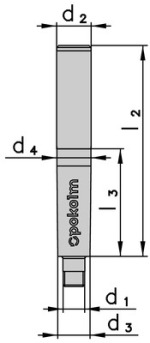

catalogue no. |
d1 |
l3 |
d3 |
d4 |
d2 |
Form/DIN |
l2 |
l1 |
ref.pg. arbors ref.accessories |
features |
| M 7 | |||||||||||
 |
20 07 603 | M 7 | 20 | 10.8 | 11.9 | Ø 12 | -- | 68 | -- | 371-374 |
 |
| 40 07 603 | M 7 | 40 | 10.8 | 11.9 | Ø 12 | -- | 88 | -- | 371-374 |
|
|
| 60 07 603 | M 7 | 60 | 10.8 | 15.9 | Ø 16 | -- | 108 | -- | 375-378 |
|
|
| 80 07 603 | M 7 | 80 | 10.8 | 15.9 | Ø 16 | -- | 128 | -- | 375-378 |
|
|
| M 10 | |||||||||||
 |
25 10 603 | M 10 | 25 | 15 | 15.9 | Ø 16 | -- | 73 | -- | 375-378 |
|
| 50 10 603 | M 10 | 50 | 15 | 15.9 | Ø 16 | -- | 98 | -- | 375-378 |
|
|
| 75 10 603 | M 10 | 75 | 15 | 15.9 | Ø 16 | -- | 123 | -- | 375-378 |
|
|
| 100 10 603 | M 10 | 100 | 15 | 15.9 | Ø 16 | -- | 148 | -- | 375-378 |
|
|
| 125 10 603 | M 10 | 125 | 15 | 15.9 | Ø 16 | -- | 173 | -- | 375-378 |
|
|
| 150 10 603 | M 10 | 150 | 15 | 15.9 | Ø 16 | -- | 200 | -- | 375-378 |
|
|
| M 12 | |||||||||||
 |
25 12 603 | M 12 | 25 | 18.5 | 19.9 | Ø 20 | -- | 75 | -- | 379-381 |
|
| 50 12 603 | M 12 | 50 | 18.5 | 19.9 | Ø 20 | -- | 100 | -- | 379-381 |
|
|
| 75 12 603 | M 12 | 75 | 18.5 | 19.9 | Ø 20 | -- | 125 | -- | 379-381 |
|
|
| 100 12 603 | M 12 | 100 | 18.5 | 19.9 | Ø 20 | -- | 150 | -- | 379-381 |
|
|
| 125 12 603 | M 12 | 125 | 18.5 | 19.9 | Ø 20 | -- | 175 | -- | 379-381 |
|
|
| 150 12 603 | M 12 | 150 | 18.5 | 19.9 | Ø 20 | -- | 200 | -- | 379-381 |
|
|
| 175 12 603 | M 12 | 175 | 18.5 | 19.9 | Ø 20 | -- | 225 | -- | 379-381 |
|
|
| M 16 | |||||||||||
 |
25 16 603 | M 16 | 25 | 23.4 | 24.9 | Ø 25 | -- | 81 | -- | 382-383 |
|
| 50 16 603 | M 16 | 50 | 23.4 | 24.9 | Ø 25 | -- | 106 | -- | 382-383 |
|
|
| 75 16 603 | M 16 | 75 | 23.4 | 24.9 | Ø 25 | -- | 131 | -- | 382-383 |
|
|
| 100 16 603 | M 16 | 100 | 23.4 | 24.9 | Ø 25 | -- | 156 | -- | 382-383 |
|
|
| 125 16 603 | M 16 | 125 | 23.4 | 24.9 | Ø 25 | -- | 181 | -- | 382-383 |
|
|
| 150 16 603 | M 16 | 150 | 23.4 | 24.9 | Ø 25 | -- | 206 | -- | 382-383 |
|
|
| 175 16 603 | M 16 | 175 | 23.4 | 24.9 | Ø 25 | -- | 231 | -- | 382-383 |
|
|
| 200 16 603 | M 16 | 200 | 23.4 | 24.9 | Ø 25 | -- | 256 | -- | 382-383 |
|
|
